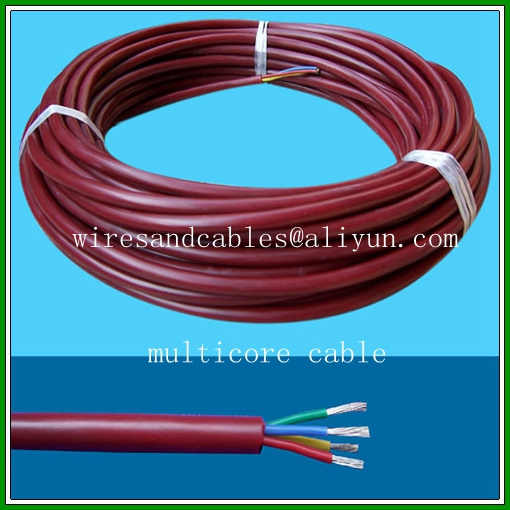

Multicore Cable, Silicone Rubber Cable
| Price: |
US $ 0.05-8/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
silicone cable |
| Size: |
1.5, 2, 5, 4, 6, 10, 16, .....95mm2......240mm2 |
| Produceing Experience: |
15 Years |
| OEM: |
Yes |
| Export Experience: |
Southeast Asia, Russia, Australia, Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
High Temperature Resistant, Welding Usage |
| Insulation Material: |
Silicone Rubber |
| Certification: |
VDE |
| Conductor Material: |
Copper Wire, Tinned Copper Wire |
| Sheath Material: |
Silicone Rubber |
| Range Of Application: |
Flame Retardant, Heat Resisiting, High Temperature |
| Brand: |
Verde |
Product Description
High Temperature Resistance Wire Flexible HV Silicone Rubber WireDifferent Voltage Silicone rubber wire cable can be Customized by your requirement.1.Description:Voltage:10KV 20KV 30KV 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC
2.Cable Structure:Conductor: Annealed Copper,Tinned Copper, Silver plated Copper wire
Insulation: Silicone Rubber
If need, as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber3.Standard:1).UL ,IEC60502 BS ASTM
2).Different specification and standard can be customized.4. Main Technical Data
List 1| Conductor | Insulation |
| 3KV | 6KV | 10KV | 20KV | 50KV |
| AWG | Conductor construction NO. *φ mm | Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm |
| 26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 |
| 24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 |
| 22 | 7*0.26 | 0.78 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.78 | 1.3 | 3.36 | 2.5 | 5.76 |
| 20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 |
| 18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 |
| 16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 |
| 14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 |
List 2 For HV silicone rubber cable wire Technical data specificationNominal Section
(mm2) | Conductor Structure
No./dia(mm) | Nominal thick
of insulation
(mm) | Core number | D.C Resistance
of conductor
at 20 ºC
(Ω/km) | Packing length
(m) |
| 4 | 56 × 0.30 | 1.0 | 2-19 | 5.09 | 100 |
| 6 | 84 × 0.30 | 1.0 | 2-10 | 3.39 | 100 |
| 10 | 84 × 0.40 | 1.2 | 1.82 | 100 |
| 16 | 126 × 0.40 | 1.2 | 2-5 | 1.22 | 100 |
| 25 | 196 × 0.40 | 1.4 | 0.795 | 100 |
| 35 | 276 × 0.40 | 1.4 | 0.565 | 100 |
| 50 | 396 × 0.40 | 1.6 | 0.393 | 100 |
| 70 | 360 × 0.50 | 1.6 | 0.227 | 100 |
| 95 | 475 × 0.50 | 1.8 | 0.210 | 100 |
| 120 | 608 × 0.50 | 1.8 | 0.164 | 100 |
| 150 | 756 × 0.50 | 2.0 | 0.132 | 100 |
| 185 | 925 × 0.50 | 2.2 | 0.108 | 100 |
| 240 | 1221 × 0.50 | 2.4 | 0.0817 | 100 |
5.Type Description &Specification Range we produce| Type & Description we can supply | Core Number | Nominal cross section area
(mm2) |
| Tinned copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5,
3+1,3+2,
4+1 | 0.75~to500 for single core
0.75 ~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring | 3, 4, 5,
3+1,3+2,
4+1 | 1.5~240 |
Flame Retardant Flexible Type
Copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5,
3+1,3+2,
4+1 | 1.5~500 for single core
1.5~240 for multi-core |
Flame Retardant
Copper conductor Silicone Rubber Insulation and sheathed rubber cable
With Copper wire Braided Shielding Type | 1, 2, 3, 4, 5,
3+1,3+2,
4+1 | 1.5~500 for single core
1.5~240 for multi-core |
Copper conductor Silicone Rubber Insulation and sheathed rubber cable
For Moving usage | 1, 2, 3, 4, 5,
3+1,3+2,
4+1 | 1.5~500 for single core
1.5~240 for multi-core |

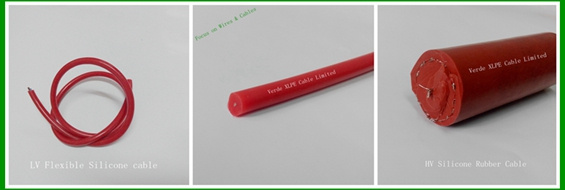

Silicone Cable with Different Voltage from 300V 500V 1KV 10KV 20KV ~ 50KV

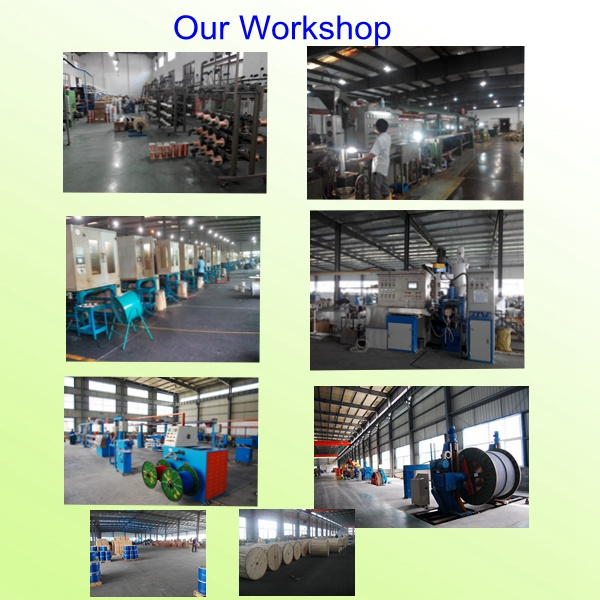

6.Our workshop
If you want to know more about us and our products,pls contact us.Linda LeeVice General ManagerVERDE XLPE CABLE LIMITEDTel:0086-371-55611184Mob:0086-13938400126 Focus on Special Wires and CablesBe Your Most Reliable Cable Supplier
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
