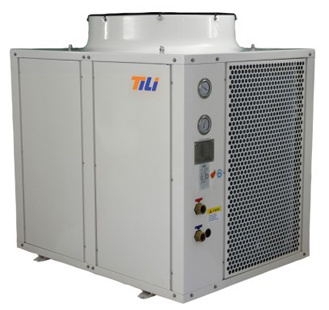

Multifunction Air Source Heat Pump
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TTT-27H4XCF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Control Type: |
Mechanical |
| Type: |
Heat Pump |
| Display Type: |
LCD |
| Material: |
Stainless Steel |
| Usage: |
Heating, Cooling, Water Heater |
Product Description
Tili's Air Source Multifunction Heat Pump - Air Heating Air Cooling and hot water can work efficiently in ultra-cold regions

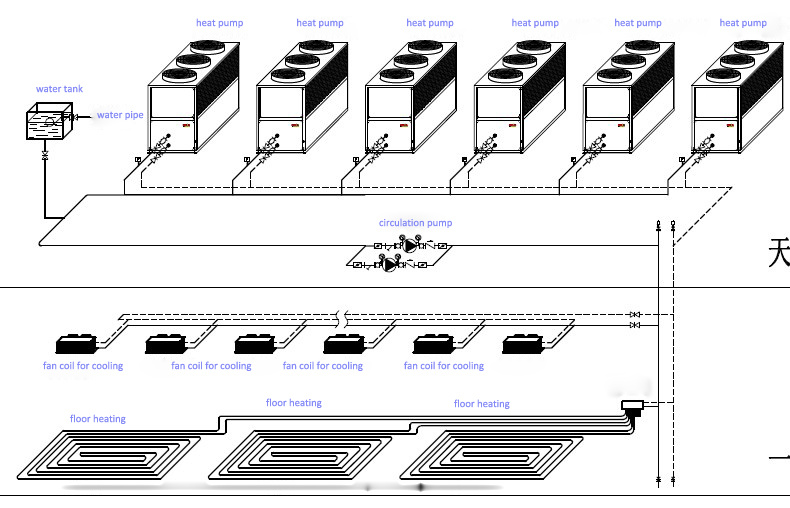

with water tank, indoor fan coil pipe and floor radiative heating system installed to the heat pump, you can have 5 running modes as below:
1. Single cooling
2. Single heating
3. Single hot water supplying
4. Cooling & hot water supplying
5. Heating & hot water supplying
| Air Source Multifunction Heat Pump - Air Heating Air Cooling and hot water |
| Model |
| TT-27H4XCF | TT-36H4XCF | TT-46H4XCF | TT-75H4XDF | TT-92H4XDF | TT-105H4XDF | TT-150H4XDF | TT-180H4XDF | TT-270H4XDF |
| Power Supply | V/ph/Hz | 380/3/50 |
| Max. Current | A | 7.5 | 10 | 13 | 21 | 25 | 28.5 | 37 | 49 | 73.5 |
| Cooling Capacity | kw | 7.5 | 10 | 12.5 | 20 | 25 | 27 | 37 | 50 | 75 |
| Cooling Power Input | kw | 2.8 | 3.85 | 4.8 | 8.4 | 9.5 | 10.5 | 14 | 18.5 | 28.5 |
| Heating Capacity | kw | 8 | 10.8 | 13.5 | 21.5 | 28 | 33.5 | 43 | 56.6 | 84.5 |
| Heating Power Input | kw | 2.7 | 3.7 | 4.6 | 7.5 | 9.2 | 10.5 | 13.8 | 18 | 27 |
| Water Heating Capacity | kw | 11.2 | 15.5 | 19.3 | 29.5 | 38.5 | 42 | 52 | 78 | 116 |
| Water Heating Power Input | kw | 2.7 | 3.7 | 4.6 | 7.5 | 9.2 | 10.5 | 13.8 | 18 | 27 |
| Refrigerant |
| R410A |
| Compressor |
| Scroll |
| Rated Wate Temp. | ºC | 55 |
| Max. Water Temp. | ºC | 60 |
| Operation Temp. Range | ºC | -10 to 45 |
| Cool Water Flow Rate | m3/h | 1.5 | 2.5 | 2.5 | 5 | 5 | 5 | 7.5 | 10 | 15 |
| Hot Water Flow Rate | m3/h | 2 | 3 | 3 | 6 | 8 | 8 | 12 | 16 | 24 |
| Water Connection |
| G1" | G1" | G1" | G1" | G1-1/4" | G1-1/4" | G2" | G2" | G2-1/2" |
| Noise | dB(A) | ≤ 56 | ≤ 58 | ≤ 58 | ≤ 60 | ≤60 | ≤60 | ≤ 62 | ≤64 | ≤65 |
| N.W./G.W. | kg | 125/175 | 150/200 | 250/300 | 280/330 | 305/355 | 580/630 | 662/712 | 950/1000 |
| Product Size | mm | 755x545x1490 | 900x595x1490 | 900x690x1490 | 1200x920x1225 | 1425x1200x1690 | 2150x1420x1910 | 2460x1480x2200 | 2460x1680x2470 |
| Packing Size | mm | 780x570x1620 | 925x620x1620 | 925x715x1620 | 1225x945x1355 | 1450x1225x1820 | 2175x1445x2040 | 2485x1505x2330 | 2485x1705x2600 |
| Test Condition |
| cooling: ambient temp. (DB/WB): 35 ºC /24 ºC ; water temp.(In/Out): 12 ºC /7 ºC ;
heating: ambient temp. (DB/WB): 7 ºC /6 ºC ; water temp.(In/Out): 40 ºC /45 ºC ;
water heating: ambient temp. (DB/WB): 20 ºC /15 ºC ; hot water temp.(Initial/Final): 15 ºC /55 ºC |
Founded in the year 1991, Guangdong Tili Refrigeration Equipment Co., Ltd. (hereinafter referred to as "Tili") has more than 20 years history in refrigeration industry.
Who we are:
Tili specializes in supplying HVAC products because it is built up to meet customers' specific needs with professional skills in controlling the quality of the products and manufacturers. From product design, raw material sourcing inspection and production management to quality control, logistics, shipping and other important functions, its spectrum of services covers the entire supply chain end-to-end.
Our products:
With advanced equipments, experienced engineer team, qualified supplier management team and professional marketing team, Tili offers series of energy saving products, including air/water cooled chillers, air/water source heat pumps, multifunction heat pumps, heat recovery units, screw type chillers and fan coil units, which are welcome by customers all over the world.
Why choose Tili:
1. With HVAC background for more than 20 years, we understand HVAC business and the China business process
2. We have experienced techinal teams which master your products and keep good control of the quality of the products.
3. We work for you, our client, exclusively we are your eyes and ears on the ground in China
4. We are a group company with 25 years history. We can cooperate with you in a flexible way, giving you safeguard with great honest.
5. We speak the language, our sales team provide you with professional service before and after sales.
6. We work with the best in the industry to offer a turnkey solution!
Choose Tili, choose success!
With advantage of these vast benefits, tili is ready to establish good partnership with the worldwide corporations. With your interest and passion in this business, please enjoy a long lasting business partnership with Tili.
