Multilayer Customized Blue Soldermask PCB Circuit Board

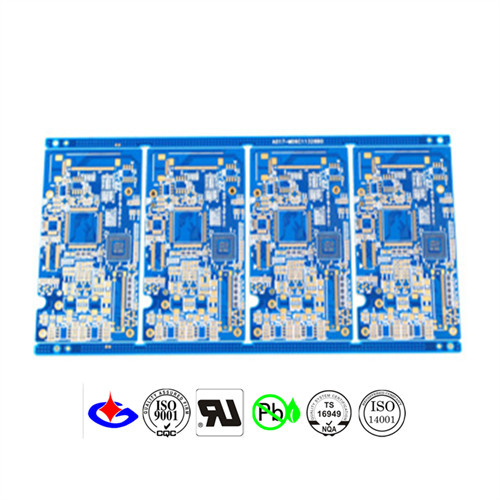

Name: Multilayer Customized Blue Soldermask PCB Circuit Board
Brand: all-electronics-online.com
SKU: 785099925
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 0.9-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN556AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	1.6mm
Surface Finishing:	Lead Free Hal
Soldermask:	Blue
Silkscreen:	White
Min Line W/S:	0.3/0.4mm
Min Hole Size:	0.4mm
IC:	Imported
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	SGS
Customized:	Customized
Condition:	New

Product Description

1.Specification for PCB:

Layer	2
Material	fr4 tg150
Board Thickness	1.6mm
Copper Thickness	1oz
Soldermask	blue
Silkscreen	white
Surface Finishing	lead free hal
Min Line Width/Space	0.3/0.4 mm
Min Hole Size	0.4mm

2.Capability:

Layer Count	1 to 22 layer
Material Type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers.etc.
Board Thickness	0.21mm to 7.0mm
Copper Thickness	0.5 oz to 7.0 oz
Min. Line Width&Space	3/3 mil
Min. Mechnical Hole	0.15mm(0.8mm for Alu PCB)
Min.Solder Mask Dam	0.075mm
Max.Aspect Ratio	10:1
PTH Size Tolerance	+/- 0.05mm
Impedance Control Tolerance	+/- 8%
Routing Tolerance	+/- 0.1mm
Electric Strength	>103KV/mm
Current Breakdown	10A
Solder Mask Abrasion	>6H
Solder Mask Color	Green/Black/White/Red/ Blue/Matt Blue/Matt Black
Silkscreen Color	Yellow/Black/White/ Orange/Grey
Surface Finishing	HASL / HASL lead free,OSP, Tin Plating, Silver Plating Immersion Silver/Tin, ENIG, Hard Gold plating
PCB Packing	- Inner Packing: Vacuum packing / plastic bag - Outer packing: Standard carton packing

3.Lead Time:

	1-2L	4L	6L	8L	10L
Sample	3-4	5	6	7	8
Mass Production	6-8	10	12	14	16

1. Lead time is Calendar Days counted from date of EQ confirmed;
2. Shorter lead time is available with express production service;

4.Why US:

        - UL (E246887), ISO9001, TS16949, ISO 14001 certified.
        - Turnover USD 50-100 million per year
        - 25,000 sqm area,1100 staff
        - Produce from single to 20 layers
        - Special Material: ROGERS, Arlon, Taconic.etc.

5.Services we provide:
PCB Manufacturing
Component Procument
SMT Assembly
THT Assembly

6.Files we need:
* Gerber File
* BOM List
* Dimensional Specifications
* Assembly Drawing
* Test Procedure(If required)

7.Our Assembly Capabilities include:
BGA
QFN
SOIC
PLCC
QFP
UBGA
POP
Other Packages (0.3mm/8 mils or larger)
Passive Chip Components (Minimum 0201)
Mixed SMT and Through Hole

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
