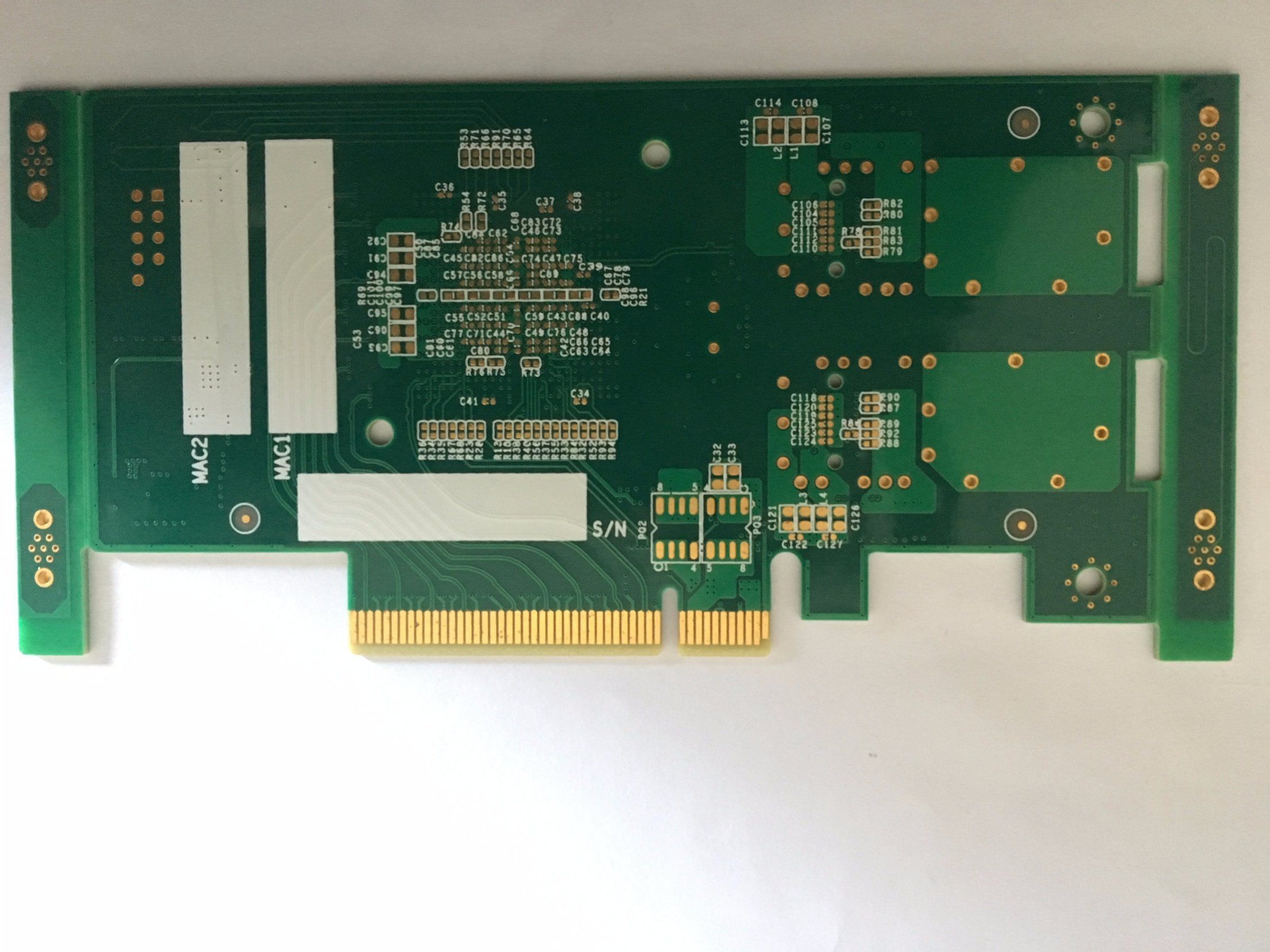

Multilayer Fr4 PCB Fr4 2layers Double Sides PCB

Name: Multilayer Fr4 PCB Fr4 2layers Double Sides PCB
Brand: all-electronics-online.com
SKU: 731357062
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E10G12-US
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Paper Phenolic Copper Foil Substrate
Flame Retardant Properties:	V0

Product Description

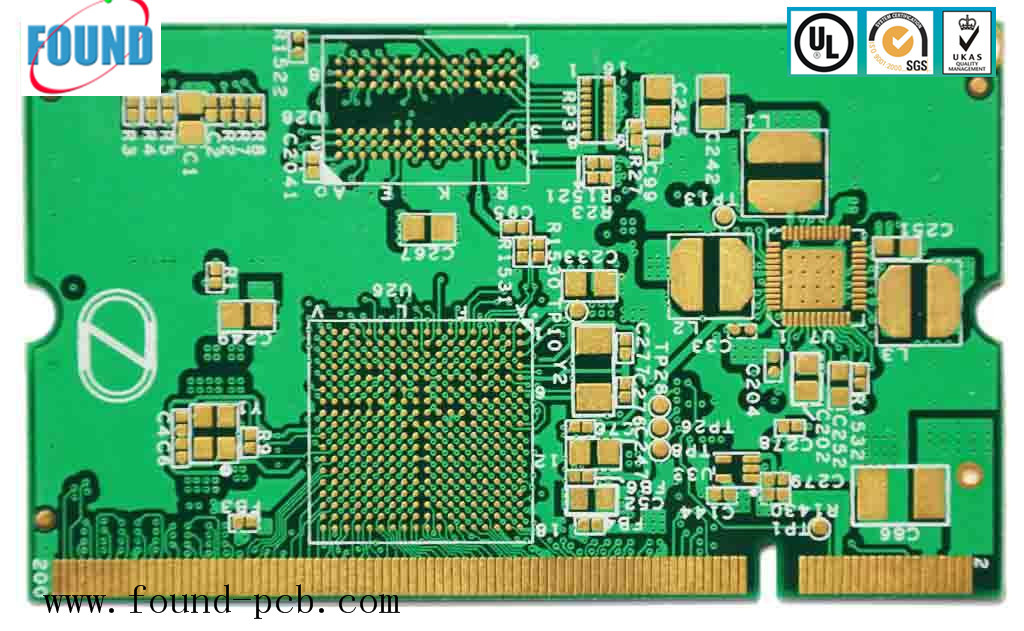

Layers: 10 layer board,

Min line width/space:3.5mil/3.5mil

Finished board thickness:2.0mm

Tg: Tg180

Impedance control: +/-10%

Min hole size: 0.25mm

Surface treatment: Immersion Gold

We specialize in Supplying quick turn prototype, small and medium batches PCB manufacture services; double-sides PCB within 24 hours, multiple PCB within 48-96 hours.

Double sided PCBs probably are the most common type PCB. They allow for the routing of traces around each other by jumping between a top and bottom layer by way of vias. The ability to cross paths from top to bottom greatly increases the circuit designer's flexibility in circuits designing and lends itself to greatly increased circuit densities. This type of board is relatively low cost.

Multi-Layer PCB refer to printed circuit board has more than two copper layers, such as 4L, 6L, 8L, 10L, 12L, etc. As technology improving, people can put more and more copper layers on the same board. Currently, we can produce 1L-20L FR4 PCB.

Here are some popular High Tg board raw material in market:

S1170 & S1000-2: SYL (Shengyi Technology);

FR406, FR408, IS410 & DS370HR: Isola

HR-01 & HR-02: Mica-AVA;KB

MCL-E-679: Hitachi;

N4000-6 & N4000-11: Nelco

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
