Multilayer HDI Printing Circuit Board PCB Rigid Flex PCB
| Price: |
US $ 0.43-0.57/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FL-024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Polyimide |
| Board Layer: |
2 |
| Board Thickness: |
0.1 mm |
| Copper Thickness: |
1 Oz |
| Solser Mask: |
Green |
| Silkscreen: |
White |
| Surface Finishing: |
Enig |
| Lead Time: |
4-5 Working Days |
| Shipping Type: |
DHL.TNT, EMS, FedEx, UPS etc |
| PCB Design: |
Custom Design Product |
| Structure: |
Double-Sided FPC |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Conductive Silver Paste |
| Material: |
Fr4+Polyimide |
| Base Material: |
Fr4+Polyimide |
| Brand: |
FL |
Product Description

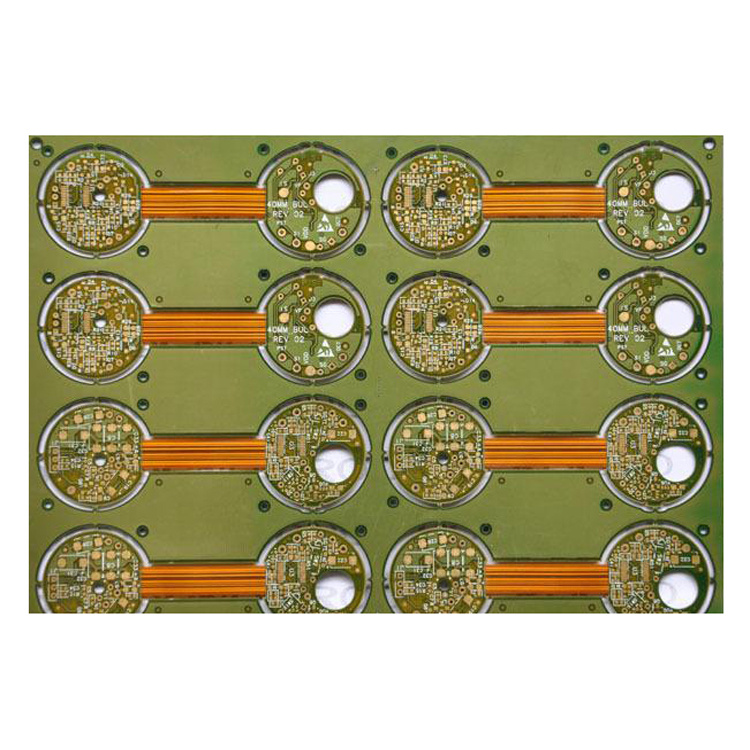

Multilayer HDI Printing Circuit Board PCB Rigid Flex PCBProduct Description
Advanced Features:
1.Rapid response
2.Quick turn production (small, medium and large runs)
3.On time delivery
4.Unsurpassed knowledge of the industry
5.Prototype service and testing
6.Polyimide, Polyester and othersAssembly (connectors, SMT, through hole, stiffeners, pins and contacts)
7.Testing (electrical, functional and prototypes)

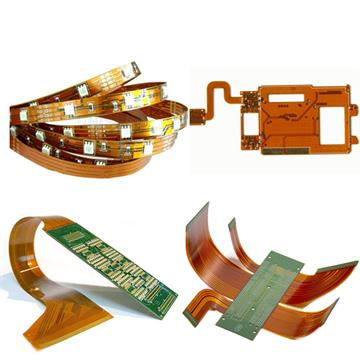

FPC showcase:
Factory manufacture capability. | Technology and Capabilities - Fastline's Flex Circuit Boards Solutions |
| Material | Polyimide / Polyester |
| Counts | Flex: 1~8L; Rigid-Flex: 2~8L |
| Board Thickness | Min.0.05mm ; Max. 3.0mm |
| Copper Thickness | 1/3 oz --- 2 oz |
| CNC Drill Size (Max) | 6.5mm |
| CNC Drill Size (Min) | Flex: 0.15mm |
| Holes Location Tolerance | ±0.05mm |
| Coverlay Drill Size (Min) | 0.6mm |
| Hole to Coverlay Opening Windows (Min) | 0.15mm |
| Min Line Width / Spacing | 0.075/0.075mm |
| Aspect Ratio | 61 |
| Copper Thickness on Hole Wall | Flex:12-22μm |
| Min Pad Size | φ0.2mm |
| Etch Tolerance | Finished line width tolerance ±20% |
| Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
| Coverlay Registration Tolerance | ±0.15mm |
| Solder Mask Registration Tolerance | ±0.2mm |
| Solder Mask to PAD | Non photosensitive: 0.2mm
Photosensitive: 0.1mm |
| Min. Solder Mask Dam | 0.1mm |
| Misregistration Tolerance for Stiffener, Adhesive, Glue paper | ±0.30mm |
| Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |
Company Information
Fastline Circuits Co.,Limited has the most diversified printed circuit board technologies available, including Single-sided PCB, Multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, Flexible PCB, Heavy Copper PCB, Ceramic PCB, and PCB assembly and other special PCB boards.
We believe that the quality is the soul of an enterprise and provides time-critical, technologically advanced engineering and manufacturing services for the electronics industry.
Sound quality gains a good reputation for Fastline. Loyal customers has cooperated with us again and again and new customers come to Fastline to establish cooperation relationship when they hear of the great reputation. We look forward to offering high-quality service to you! Why Choose you ?
There are some advantages of us :
1) We have professional research team.
2) No MOQ,samall order are aslo welcome,From Prototype to Mass production.
3) All products are 100% tested working before sent to you.
4) One stop PCB solution (PCB , PCB Assembly and SMT stencil)
5) We have professional sales team, so please do not hesitate to contact us if you have any question! FAQQ1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What is the lead time?
A4:Sample needs 4-5 days, mass production needs 7 - 10 days, according to the order volume.Also we can provide quick time service 1-2days.
Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Q6: How about the shipping method
A6:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and other air flight way or sea freight company.Usually we will quote you the most reasonable shipping method according to your country, good types, weight and requested delivery time.
We shall appreciate if you could write us details of your order quantity, country, sea port/air port before you send us inquiry. In this way we can offer you the best and mostaccurate price.
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

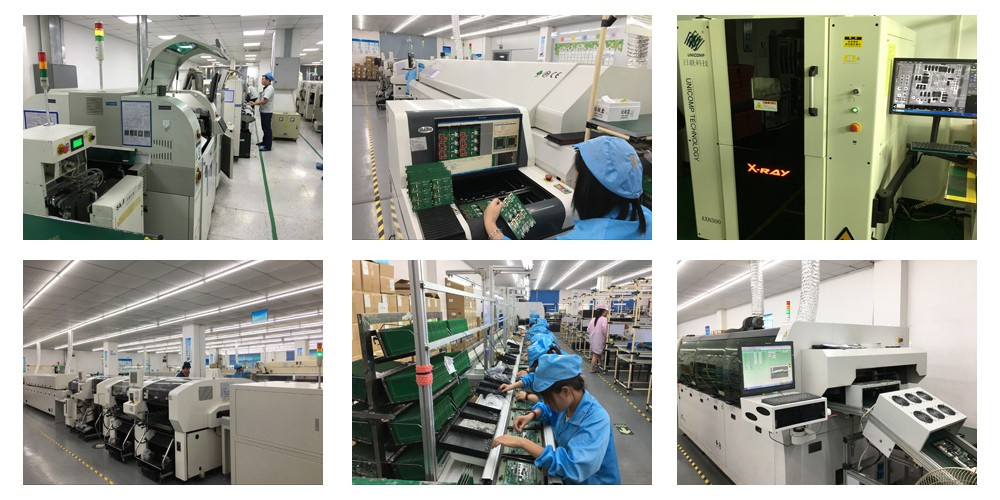

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
