| Prod Model: |
FLCA-005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Fr4 and Polyimide |
| Board Layer: |
2 Layer Rigide and 2 Layer Flex |
| Copper Thickness: |
1 Oz |
| Min. Line Space: |
0.1mm |
| Min.Hole Size: |
0.15mm |
| Solder Mask: |
Any Color |
| Silkscreen: |
Any Color |
| Surface Finishing: |
Gold Plate |
| Lead Time: |
5-6 Working Days |
| Text: |
Flying probe text |
| Dielectric: |
Fr4 and Polyimide |
Product Description

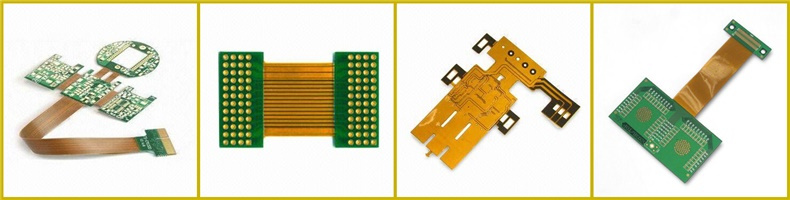

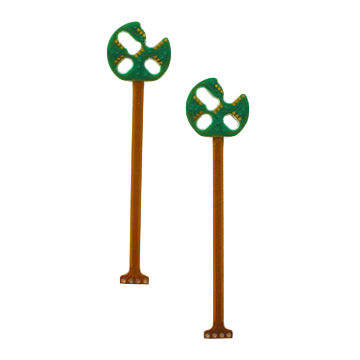

Multilayer Impedance Controlled Rigid Flex PCBRigid-Flex circuit boards Rigid-Flex circuit boards are composed of a combination of rigid and flexible circuit boards that are permanently connected to one another.
The proper application of Rigid-Flex circuit boards offers optimum solutions for difficult, limited space conditions. This technology offers the possibility of a secure connection of device components with the assurance of polarity and contact stability, as well as a reduction in plug and connector components.
Additional advantages of Rigid-Flex circuit boards are dynamic and mechanical stability, the resulting 3-dimensional freedom of design, simplified installation, space savings, and maintenance of uniform electrical characteristics.
Use of Rigid-Flex circuit boards can reduce the total cost of the final product.
A standardized manufacturing process following IPC guidelines guarantees a reliable and simultaneously an economical product, which is UL certified (UL94 / V-0); application of the UL logo is available at no extra cost.

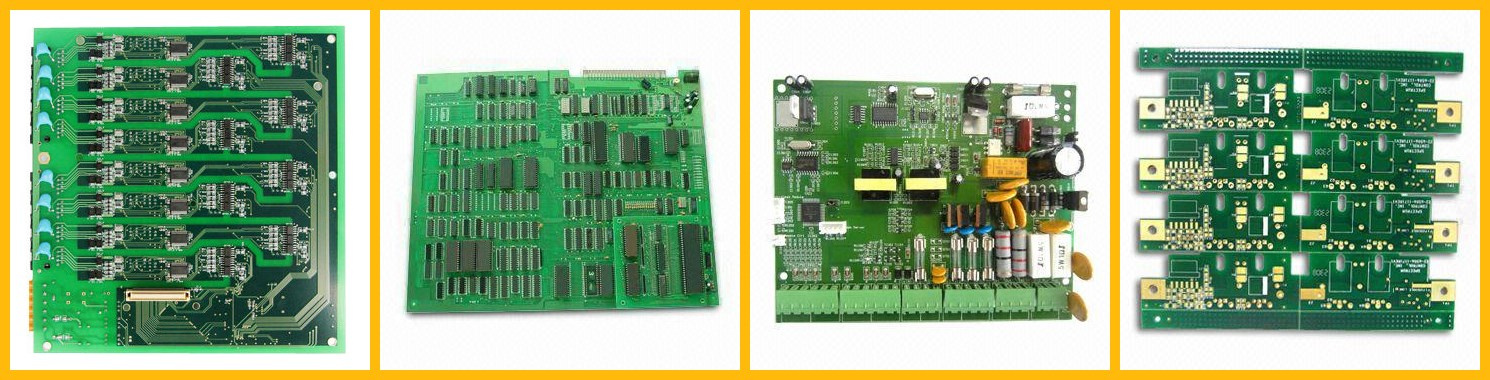

Pls see our pcb catalog below:1. single side pcb
2. double side pcb

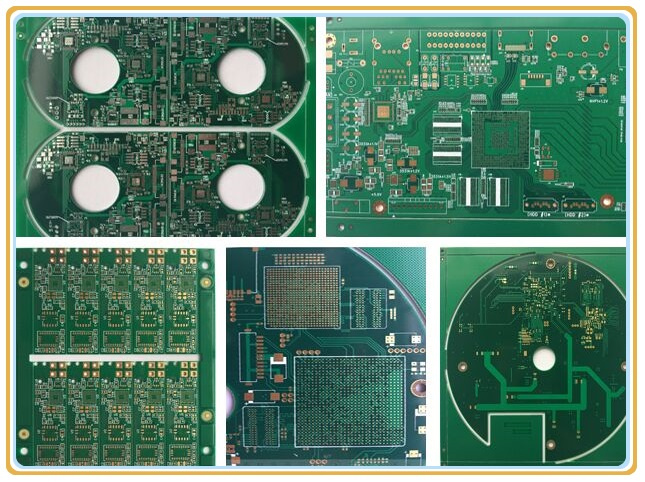

3. Multilayer pcb(3-26+ layers)
4. Flexible PCB(FPC)
5. Rigid-flex PCB board
6. Aluminum PCB board for LED(1-4 layers)
7. MCPCB board (1-4 layers)
8.Ceramic PCB(1-4 layers)
9. HDI pcb board
10. High frequency PCB
11. PCB assembly
Rigid-flex pcb manufacturing capability
Fastline FPC board and Rigid-flex PCB capability |
| Technology and Capabilities |
| Material | Polyimide / Polyester/ FR4 |
| Counts | Flex: 1~8L; Rigid-Flex: 2~8L |
| Board Thickness | Min.0.05mm ; Max. 0.3mm |
| Copper Thickness | 1/3 oz --- 2 oz |
| Maximum dimensions | For FPC:250mm*1200mm(normal); 250mm*100,000mm |
| CNC Drill Size (Max) | 6.5mm |
| CNC Drill Size (Min) | Flex: 0.15mm |
| Holes Location Tolerance | ±0.05mm |
| Coverlay Drill Size (Min) | 0.6mm |
| Hole to Coverlay Opening Windows (Min) | 0.15mm |
| Min Line Width / Spacing | 0.1/0.1mm |
| Aspect Ratio | 61 |
| Copper Thickness on Hole Wall | Flex:12-22μm |
| Min Pad Size | φ0.2mm |
| Etch Tolerance | Finished line width tolerance ±20% |
| Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
| Coverlay Registration Tolerance | ±0.15mm |
| Solder Mask Registration Tolerance | ±0.2mm |
| Solder Mask to PAD | Non photosensitive: 0.2mm
Photosensitive: 0.1mm |
| Min. Solder Mask Dam | 0.1mm |
| Misregistration Tolerance for Stiffener, Adhesive, Glue paper | ±0.30mm |
| Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |
PCB advantages:1 R&D team support
2 UL, RoHS,ISO9001,SGS
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.
Trade Terms:1. We have no MOQ.
2. Payment Term:T/T or Western Union.
3. Delivery ways:UPS,FEDEX,DHL etc,door to door service by sea or air etc.
Application:1. Consumer electronics.
2. Industrial control.
3. medical instrument.
4. fire service implement etc.
Our Service:1.Reply your enquiry in 2 working hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is avaliable OEM&ODM are welcomed.
4. Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.
PCB prototype Lead time:| PCB Prototype Lead Time: |
| item | General time | Quick Turn |
| 1-2 | 4 days | 1 days |
| 4-6 Layers | 6 days | 2 days |
| 8-10 Layers | 8 days | 3 days |
| 12-16 Layers | 12 days | 4days |
| 18-20 Layers | 14 days | 5 days |
| 22-26 Layers | 16 days | 6 days |
Note: Base on all data received by us and must be complete and problem free, Lead time is ready to ship time.
|
Company Information:Fastline is a Leading PCB manufacturer in China. It was founded in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands.

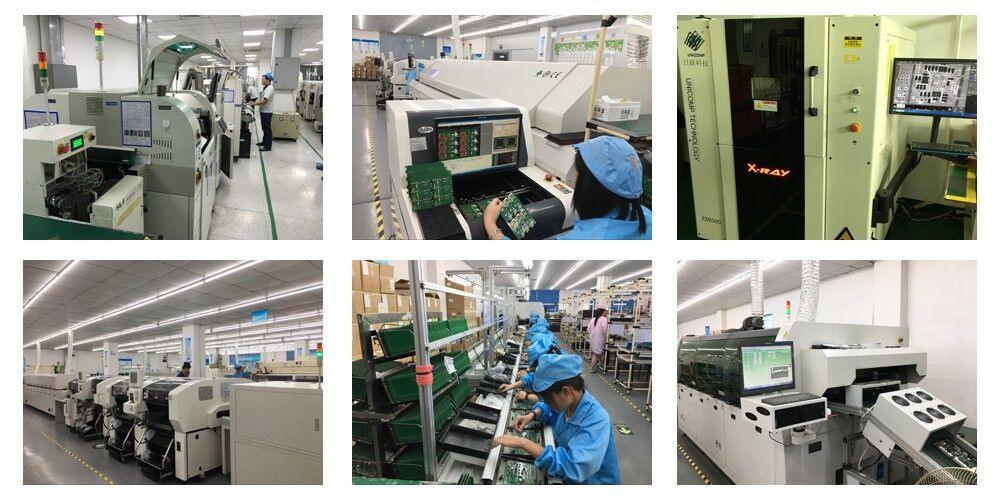

Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
FAQ Q1: Are you a factory or trade company?A1: We have our own PCB manufacturing & Assembly factory.
Q2: What's your minimum order quantity?A2: Our MOQ is not the same based on different items. Small orders are also welcome.
Q3: what file we should offer?A3: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5: What any other information should be offered except for file?A5:Following specifications are needed for quotation:
a) Base material
b) Board thickness
c) Copper thickness
d) Surface treatment
e) color of solder mask and silkscreen
f) Quantity
Q6: I am very satisfied after I read your information, how can I start to purchase my order?A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
Q7: What is delivery terms and time?A7: We usually use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
More information, please contact with:Salesman: Cassie
Tel: +86 755 2332 9221 Fax: +86 755 2332 9659
Cellphone/:+86 18028775532
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
