Multilayer PCB Circuit Board Rogers Rt5880 PCB

Name: Multilayer PCB Circuit Board Rogers Rt5880 PCB
Brand: all-electronics-online.com
SKU: 684339782
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Rogers Rt 5880
Board Thickness:	1.6 mm
Copper Thickness:	1 Oz (35um)
Surface Treatment:	Enig
Solder Mask:	No
Silk Screen:	No
Flying Probe Test:	Yes
Flame Retardant Properties:	V0
Material:	Rogers Rt 5880
Base Material:	Rogers Rt 5880
Type:	Rt 5880 PCB
Model:	Rogers Rt 5880
Dielectric:	Rogers Rt 5880
Brand:	FL

Product Description

Features-Our Products Advantage

1. Over 10 years experience manufacturer in PCB and PCBA service field.

2. Big scale of producing makes sure that your purchase cost is lower.

3. Advanced production line guarantees stable quality and long life span.

4. Design and produce almost any PCB as your requirement.

5. 100% test for all customized pcb products

6. One-stop Service ,we can help to purchase the compnents

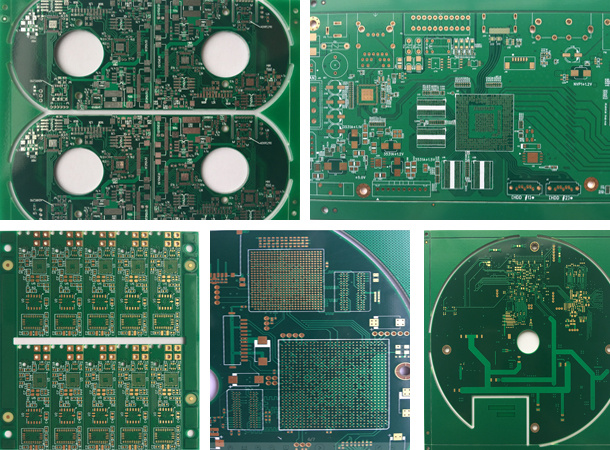

Can we see other PCBs?

Can we know your factory PCB manufacture capability?

Layers: 1-50 Layers(FR4 pcb); 8L FPC; 10L rigid flex pcb; 1-4 L Metal core PCB

Material Types: Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, Arlon Teflon, Aluminum Based,Copper Based PCB

Board Thickness: 8mil-236mil

Min. Track Width: 3mil / 0.075mm

Min. Track Space: 3mil / 0.075mm

External Cu Thickness: HOZ-15OZ / 17um~525um

Internal Cu Thickness: HOZ-8OZ / 17um~280um

Drilling Bit Size ( CNC ): 6mil-256mil / 0.15mm-6.50mm

Laser Drilling Hole Size: 4mil / 0.1mm

Aspect Ration: 12:01

Solder Mask: Green, Blue, White, Black, Red, Yellow, Purple, etc.

Plugged Hole Diameter: 8mil-20mil/ 0.20mm-0.50mm

Impedance Control V-scoring: Min ±5%, General ±10%

Surface Finishing: HASL, HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold( up to 100u" )

Can we know what the PCB products are applied for ?

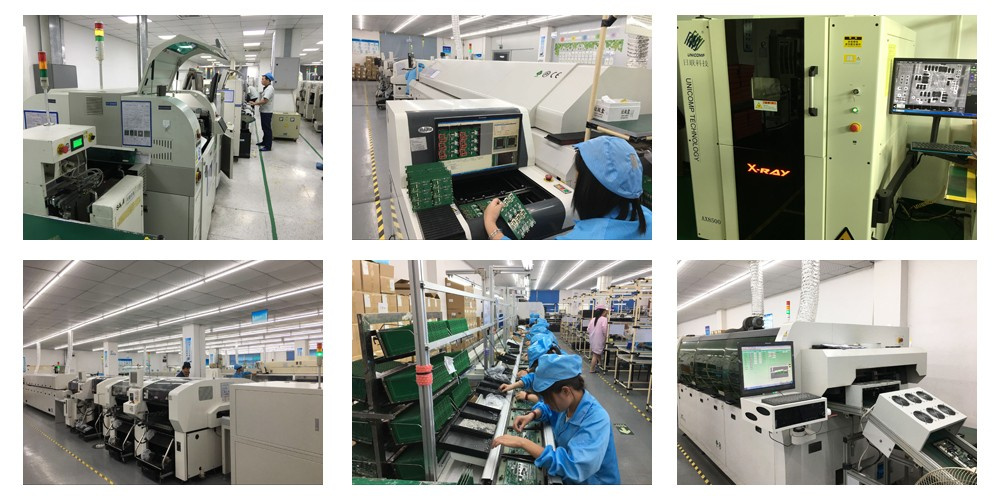

Can You Show some Pictures of the PCB factory?

FAQ

Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .

Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.

Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.

Q4: What is the lead time?
A4:Sample needs 7-10 days, mass production needs 10- 15 days,
according to the order volume.Also we can provide quick time service 1-2days.

Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
