Multilayer PCB Design and Manufacture in China

Multilayer PCB Design and Manufacture in China
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Copper Thickness: 1oz-4oz
Board Thickness: 0.1mm~0.2mm
Place Of Origin: Guangdong, China (Mainland)
Surface Finishing: Immersion Gold,Immersion Tin,OS
Lead Free Technology: Yes
Engineering Support: Support
PCB Testing: E-Testing
Impedance Control: Yes
Color Of Silk-Screen: White,Black,Silver
Coler Of Solder Mask: Green, Black, Blue, White, Y
Type: Combining Rigid Circuit Board
Dielectric: FR-4
Flame Retardant Properties: V2

Product Description

Welcome to china visit our company wesbite !

Multilayer PCB Design and Manufacture in China

1.Company profile:

Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.

After several years of development,Rigao has become an international provider of

solutions in three principle areas: Printed circuit board procurement, PCB assembly

procurement and component procurement and Flexible flat cable, FPC flat cable connectors.

As an experienced PCB and PCBA manufacturer,we provide prototypes,small volume

projects, medium volume projects and large volume projects. We are able to

maintain a complete service system with comprehensive technical backup as well

as cost advantage and scheduled delivery.

Our main services include offering:

 Rigid PCB (up to 22 Layers),
 Flexible PCB/FPC (1~6 Layers),
 Rigid-Flex (2~10 Layers),
 Aluminum-based PCB (1~4 Layers),
 High Density Interconnection/HDI PCB,
 High frequency material PCB
 Assembly Services
 Components purchasing




General Specifications  Capability

Material Requirements:

SizeMax.Finshed Size20.9"x24.4"(530mm x 620mm )
Board ThicknessStandard0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% )
Min. Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm)
4-layer:0.01"±0.008"(0.4mm ±0.1mm)
8-layer :0.01"±0.008"(0.4mm ±0.1mm)
Bow and twist  < 7/1000
 Copper  Weight Outer Cu weight 0.5oz ~ 3.0oz
Inner Cu wight 0.5oz ~ 3.0oz
 Laminate MaterialsFR-4,FR-1,,FR-2,CEM-1,CEM-3



Process Requirements:

Solder MaskColorgreen,light green,white,black,dark brown,yellow,red,blue
Min. solder mask clearance0.003"(0.07mm)
Thickness0.0005"-0.0007"(0.012mm-0.017mm)
SilkscreenColorWhite,black,yellow,red,blue,green
Min. Size0.006"(0.15mm)
Surface FinishHASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon



Quality Control:

Electrical testing    Flying Probe TesterY
Controlled Impedance  Tolerance±10%
 Impedance testerTektronix TDS8200
Routing  End Mills Test± 0.006"(0.15mm)
  CNC Tolerance±0.004"(0.1mm)
  V-Cut Depth V-cutFR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm)
  V-cut angle V-CUT  15°,18°,30°
  V-CUT  line,hole,V-shape



Certificates

UL Cert. Y
ISO Cert.ISO9001 :2008
TS16949Y
ISO14000Y

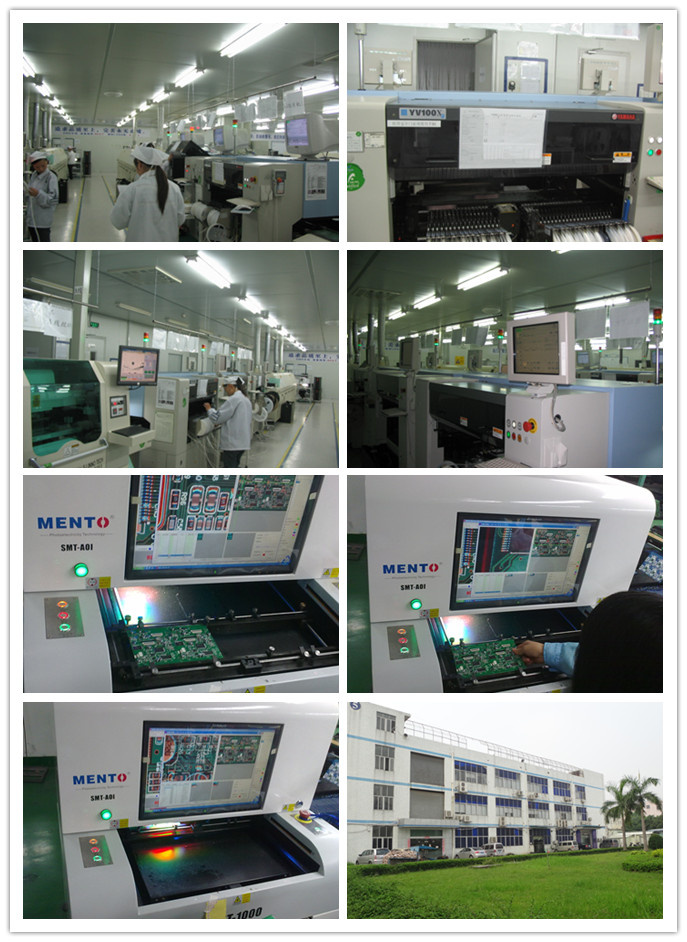

3.View of Rigao Factory

Why choose us?



We can provide the following services: Fully Electronic Manufacturing Services(EMS):
1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-64 layers, Buried & Blind via PCB, Imdepence PCB, Highfrequency PCB, FR-4, Flexible PCB, Flex-rigid PCB, Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done. Welcome all kindly of pcb and pcb assembly business for inquiry, we will feedback to you soon.






RFQ:
Q: What is your MOQ?
A: We accept any quantity you want to order, prototype and mass production both are welcome.
Q: What do you need for quotation?
A: We need six informations from you as following show:
- Material:
- Board Thickness:
- Copper Thickness:
- Surface treatment:
- Gerber rle or other PCB data hle:
- Quantity:
For PCB assembly, we need BOM of components.
Q: Can you provide reverse engineering?
A: Yes, we do this service and we call it PCB or PCBA clone/copy,we just need the sample from you.
Q: Do you have your owr products?
A: No, we just do the customized PCB and PCBA prodution, also PCB/PCBA design is welcome.




Multilayer PCB Design and Manufacture in China

Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.

As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.

Our main services include offering

Rigid PCB (up to 64 Layers)

Flexible PCB/FPC (1~6 Layers)

Rigid-Flex (3~18 Layers)

Aluminum-based PCB (1~6 Layers)

High Density Interconnection/HDI PCB

High frequency material PCB

DIP, COB, SMT assembly Services

Components Sourcing

We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.

Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.

Our Principle is simple, "Act by heart, Make the best. "

Our strength is distinct, "Years of experiences in PCB and PCBA field"

Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "

Our orientation is clear, "Focus on prototypes and low to medium volume business "

Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.

We are look forward to working with you!
