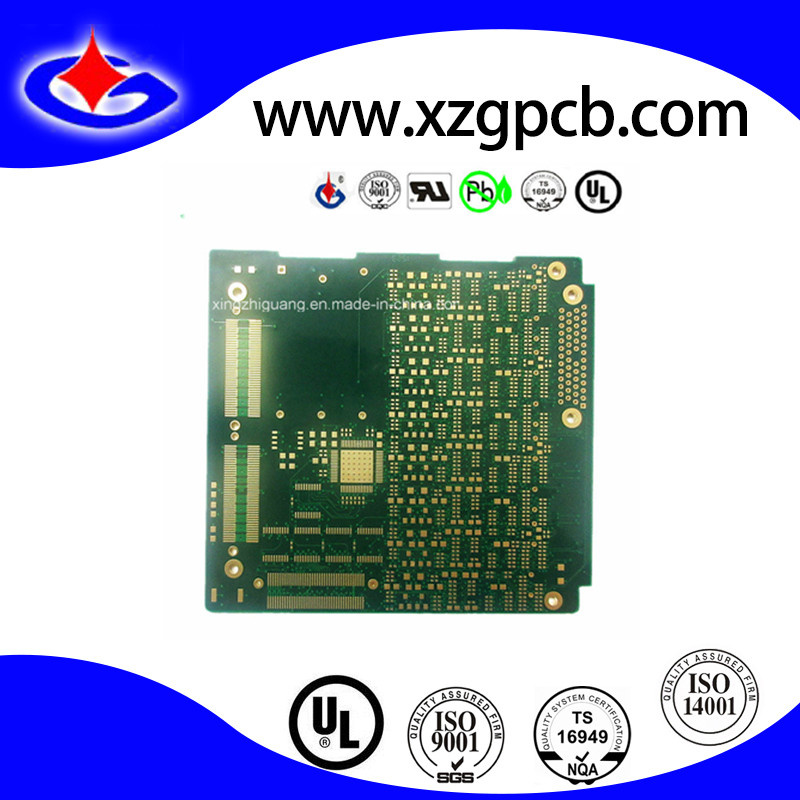

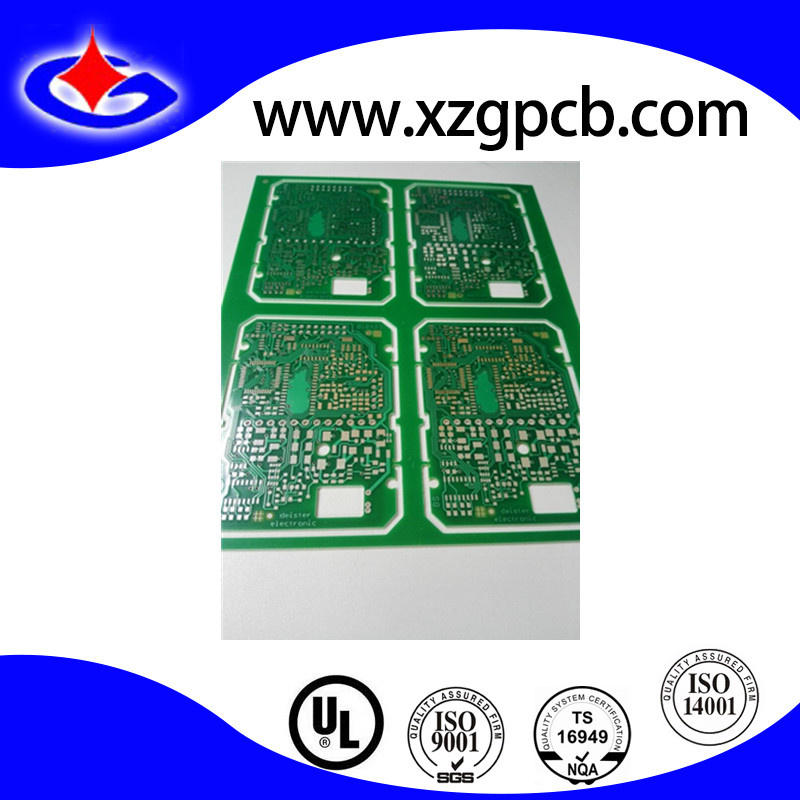

Multilayer PCB for Automobile Electronics with Immersion Gold

Prod Model:	WBPN8967AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	162mm*140mm
Min. Hole Size:	0.25mm
Min Line Width And Distance:	5mil/5mil
Soldermask:	Green
Silkscreen:	White
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Xzg

Product Description

1. Specification:



Material:FR4 Shengyi S1141
value:tg150
rigid board thickness:1.6mm
copper thickness:1oz
Surface treatment:ENIG
Application:electronics products

2. Our main process capability:

Why US: UL (E246887), ISO9001, TS16949, ISO 14001 certified. Turnover USD 50-100 million per year 25,000 sqm area,1100 staff  Mass Production from single to 20 layers  Special Material: ROGERS, Arlon, Taconic.etc. Client: SAMSUNG, Skyworth, Malata, Midea.etc. Certificates(UL:E246887, TS16949, ISO14001, ISO9001): Capability & Lead Time: Factory Tour: FAQ: Q1:Are you a manufacturer or trading company? A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.  Q2:What kind of PCB file you need before production A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc. b. Dimensional Specifications c. BOM List (only for PCBA) Q3: How long will you send us quotation ? A: After all files were sent, 2 to 8 hours as per your file. Q4:What is your minimum order quantity? A:Our MOQ is 1 PCS. Q5: How to find you? A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

3. Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5 days	6 days	7 days
Volume  production	7~9 days	11 days	14 days	15 days

4. Our Strength:
    PTH PCB,
    Aluminum PCB,
    buried/blind via PCB,
    high frequency PCB,
    Heavy copper PCB-max 8oz

5. Why us:

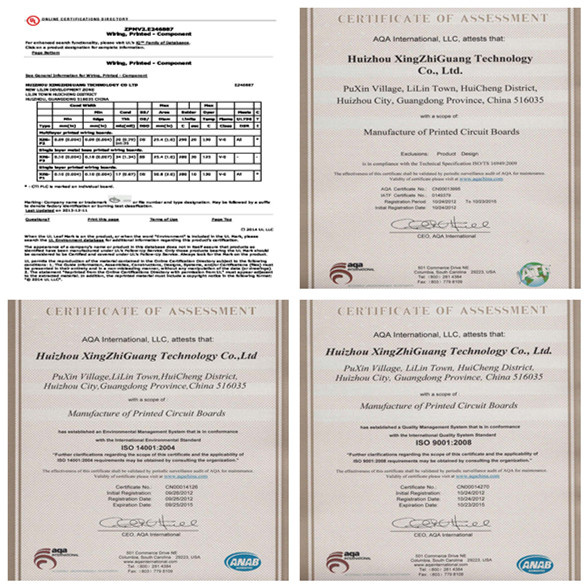

     UL (E246887), ISO9001/14001,ISO/TS16949certified.
     Staff of 1000+.
     13+years experience,annual turnover USD 80Million.
     Full-process workshop--more guaranteed quality and lead time
     All exported PCB have double-check before sending out.
     One-stop EMS service,pcb assembly and SMT are available.

6.FAQ:

Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out the PCB/PCBA

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
