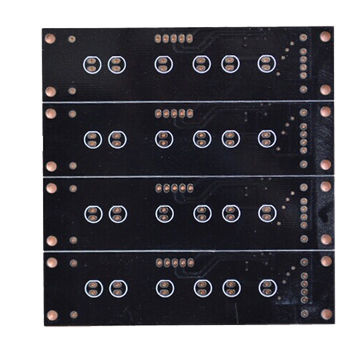

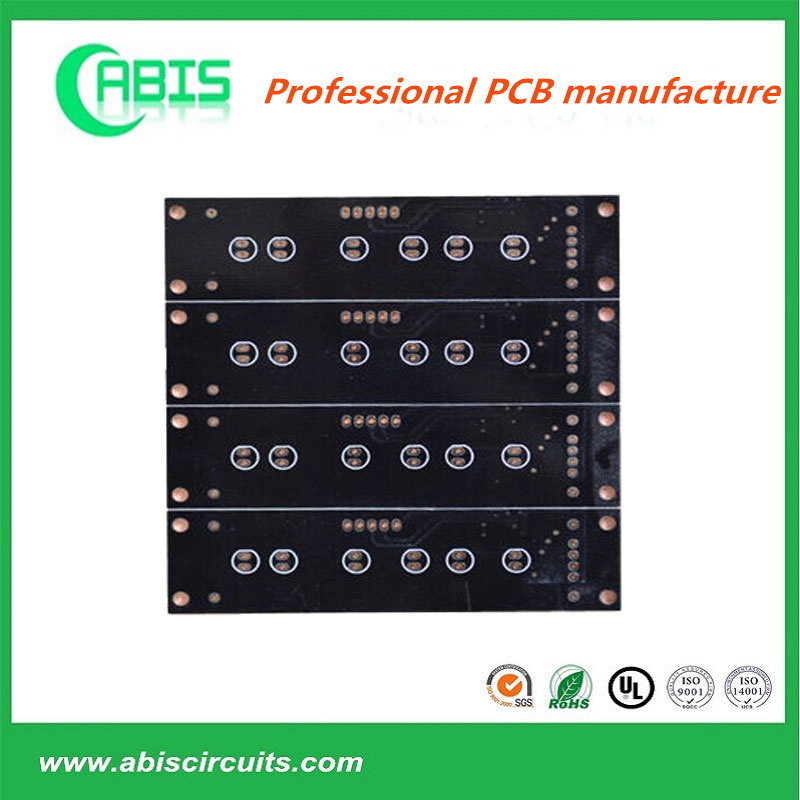

Multilayer PCB with Gold Plating and Black Soldermask

Name: Multilayer PCB with Gold Plating and Black Soldermask
Brand: all-electronics-online.com
SKU: 812498045
Availability: InStock
Rating: 4.6 (112 reviews)

Price:	Negotiablepiece
Min Order:	1piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCB26
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Abis

Product Description

ABIS CIRCUITS CO., LTD

Created in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.
ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.

TECHNICAL PARAMETER

Layer	1-20 layers
Material	FR-4,CEM-1,Aluminum base,Copper base,FR-1,CEM-3,High TG,FR4 Halogen Free, Rogers, TEFLON etc.
Board thickness	0.2mm-6mm(normally 1.6mm)
Max. board size	1200*600mm
Finished board thickness	0.3-5mm
Min .drilled hole size	0.1mm
Min. line width	0.1mm(4mil)
Min. line space	0.1mm(4mil)
Surface finish/treatment	HASL, lead free HASL ,Immersion Gold(ENIG),Immersion Tin ,Immersion Silver, OSP, Gold plating, Gold Finger, Carbon Ink, Peelable mask
Copper foil thickness	18um-280um(0.5OZ-8OZ)(normally 1OZ)
Solder mask color	green/black/white/red/blue/yellow
Outline Tolerance	±0.13mm
Impedance control Tolerance	±10%
NPTH Hole Tolerance	±0.075mm
PTH Hole Tolerance	±0.05mm
Certificate	UL,ISO9001,ISO14001,SGS
Profiling punching	Routing, V-CUT, Beveling
Production capability	720000M2/year

About Service

1 Hour quotation

2 hours complaint feedback

7*24 hour technical support

7*24 order service

7*24 hour delivery

7*24 production run

Abis Circuits Co. Ltd, established in 2006, Located in shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of testing, computer, medical equipment and military, and have good performance in all kind of functional test. Our perfect management, advanced equipments, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer's satisfaction and support are what we have been strived for.

Now we have passed ISO9001, SGS and UL certificates. With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layer, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high quality level.

With more than 10 years experience in international business, we have abtained over 500 customers in the world, We sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
