Multilayer PCB

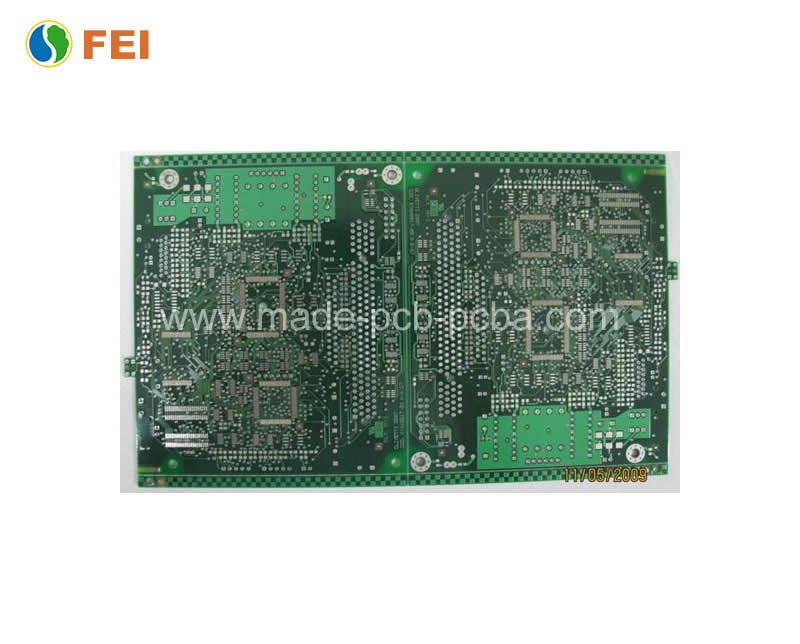

Name: Multilayer PCB
Brand: all-electronics-online.com
SKU: 676712622
Availability: InStock
Rating: 4.9 (42 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rigid Circuit Board
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	V0
Dielectric:	FR-4

Product Description

Product name: Multilayer pcb

Base Material Type: FR-4

Finished Board Thickness(mm): 1.6mm

Layers: 6

Surface finishing: Immersion gold

Solder mask color: Green

Finished copper inner/outer thickness(um): 1OZ(inner)1OZ(outer)

Line width: 3.0mil/3.0mil

Min finished hole size: 0.20mm

Impedance: 90 Ω ± 10%

Product application: Industrial elevator system, digital video record (DVR) system, medical, computing, storage, instrumentation, traffic, industrial power, fire alarm, wireless communication, telecommunication, networking

Shenzhen Tengyuxin Technology Co., Ltd is a professional PCB & PCBA manufacturer which specialized in manufacturing SS, DS, HDI and multilayer PCB. Our modern factory is located in Qingyuan Guangdong which has more than 3000 staffs and 101, 000 square meters workshop. We can provide all-in -one service ( R&D, manufacturing and sales) for you
