Welcome to Rigao Electronics .CO.,Ltd.Multilayer Prototype PCB Manufacturer Design and Manfacture in ChinaProduct description:
1. Double-Sided FR4 material 1 oz copper pcb board
2. Green solder mask, Immersion gold
3. with Competitive price
General Specifications Capability
Detailed Specification of PCB Manufacturing
| Types: | Single-sided, Double-sided, Multi-layers (max 6 layers) and Rigid-flexible PCB, Aluminium board |
| Surface Finishing: | HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek) |
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
Manufacturing Capability for PCB Board
1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products
Company information:
One-stop EMS service-----Your reliable PCB and PCB Assembly Supplier
1.Company profile:
Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.
After several years of development,Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement and Flexible flat cable, FPC flat cable connectors
As an experienced PCB and PCBA manufacturer,we provide prototypes,small volume
projects, medium volume projects and large volume projects. We are able to
maintain a complete service system with comprehensive technical backup as well
as cost advantage and scheduled delivery.
Our main services include offering:
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing
Our manufacturing and quality control processes are ISO 9001:2000 certified and
onform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards.
All our PCB/PCBA are UL certified and RoHS compliant.
Service:
We can provide the following services: Fully Electronic Manufacturing Services(EMS):
1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-64 layers, Buried & Blind via PCB, Imdepence PCB, Highfrequency PCB, FR-4, Flexible PCB, Flex-rigid PCB, Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done. We Welcome all kindly of pcb and pcb assembly business for inquiry, we will feedback to you soon.

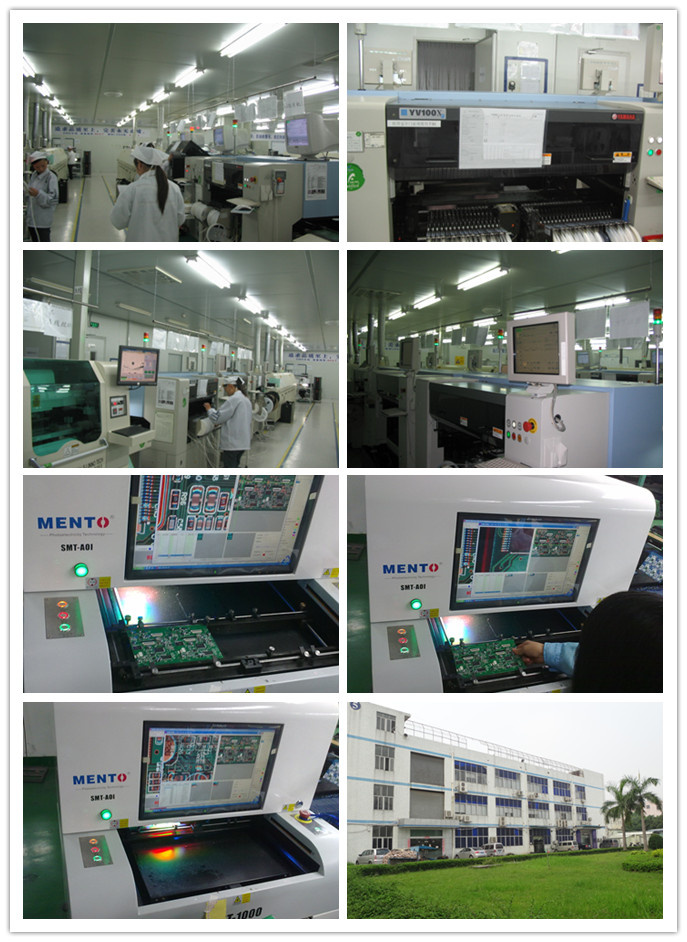

View our Factory:
