| Prod Model: |
MPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
LC-MTRJ |
| Brand: |
OEM or Geyida |
| Sheath Material: |
PVC/LSZH |
Product Description

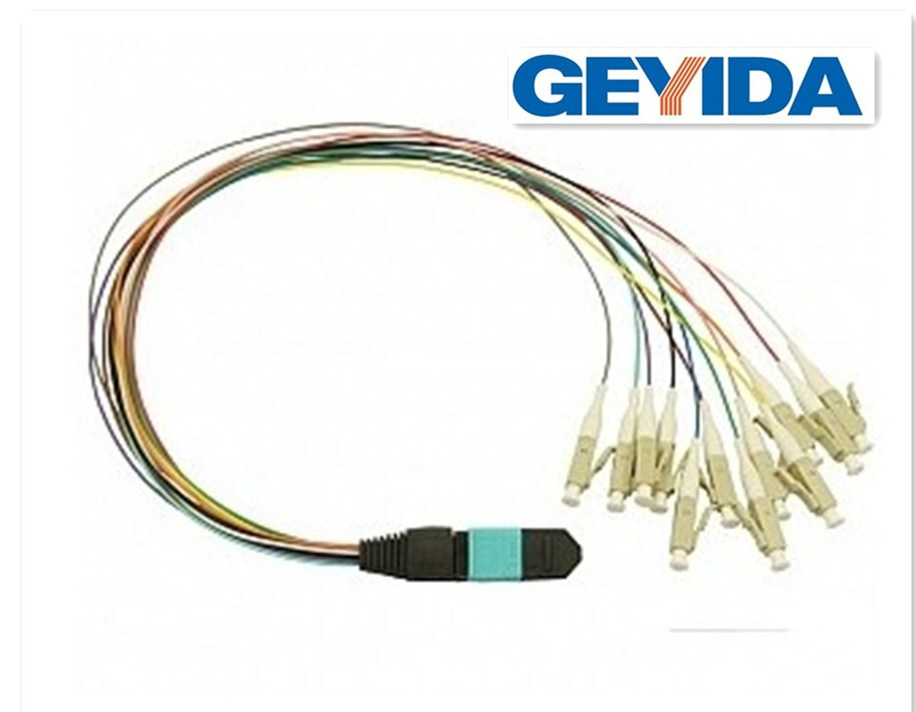

MPO Features and Benefits:
Utilize MPO Connectors small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Rapid Deployment - Application specific designs Tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.
Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability and reduce installation time and cost.
100% tested (test data supplied) - Assures verified optical performance for improved network integrity.
High-density cable - Uses pathway space more efficiently to improve manageability and reduce installation costs.
Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.
Standards Compliance:
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
Competitive Advantage
We strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB)
TIA/EIA-455-107 | ≤ 0.3dB
(PC/UPC/APC) | ≤ 0.3dB
(PC/UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB(PC/UPC)
≥55dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord |
| Operating Temperature (° C) | -10~ + 70 |
| Storage Temperature (° C) | -40 ~ +85 |
| Package | 1unit/bag |
*All values specified are with connectors.
|
Company's main products:
The product line includes all kinds of outdoor optical cable, indoor optical cable, optical line jumpers, and optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat with "business" spirit of enterprise, and in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. We committed to building brand integrity, and in order to become the optic communication market-oriented, we need to have innovative efforts to develop and produce products with excellent performance. Our mission is to let the company become the first-class modernized enterprise and we will keep trying with unremitting efforts. Hope that our company can have mutual benefit while establishing business relations and cooperate with domestic and foreign enterprises, and develop and create a brilliant future with you! !

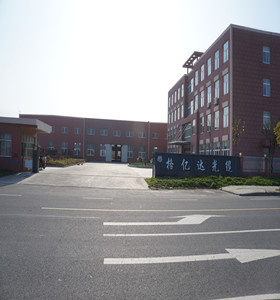

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.
Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
