Multiple Alarms GPS Tracker GSM/GPS Online Tracking (GOT08)

Prod Model:	GOT08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Got08
Color:	Black
Weight:	56
Working Voltage:	12VDC/24VDC
Dimension:	56.5(L)X 47(W) X 24.6(H)
OBD Pot:	Yes
OBD-II Protocol:	Yes
GSM Frequency:	850/900/1800/1900MHz
Battery Capacity:	200mAh
Alarms:	Geo-Fence, Speed, Falling, Collision

Product Description

GOT08 OBD GPS Tracker has a very wide range of industrial and commercial applications, OBD interface, plug and play.It can be trackered on the platfrom through computer & smart phone.

Product Features

*Supports quad bands, I. E. 850/900/1800/1900MHz, worldwide used
*Plug and play, Easy to install and just connects OBD interface to work.
*GPS precise positioning with A-GPS and uploaded by GPRS regularly
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, Built-in acceleration sensor with vibration, collision and falling alarm.
*Built-in battery and unplugging alarm
*OTA upgrade program.

Alarm Type

Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm


Main function table

GPSOK
AGPSOK
Remote cut oil/engineOK
Monitor/listenNO
ACCOK
OBD diagnosticsOK
Built-in batteryOk
PedometerNO
Low power AlarmOk
SOS AlarmNO
Speed AlarmOK
Shift AlarmOK
Collision AlarmOK
Falling AlarmOK
Vibration AlarmOK
Geo-fencing AlarmOK

Typical Application Areas

Logistics enterprises,
Fleet management,
Bus management
Insurance
Power
Oil
Telecommunications
Taxi
Car sales
Car rental
Vehicle Maintenance
Technology Researchers

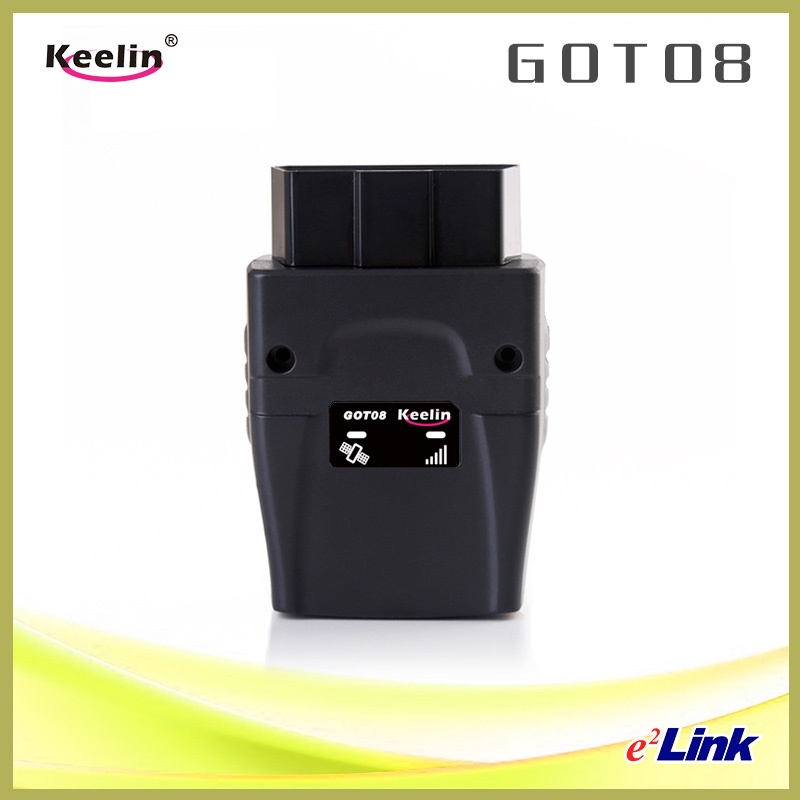

GPS Tracker GOT08 picture





GPS Tracker GOT08 Installation




Connect to the OBD interface, Plug-in and Play, so easy to install.


Platform

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.

Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience

GPS Tracker GOT08 parameter

Base Specification
Voltage	12VDC/24VDC
Work Current	<40mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Operating temperature	-20ºC~70ºC
Operating humidity	20%~80%RH
Dimensions (mm)	56.5(L)X 47(W) X 24.6(H)
Net Weight	56 g
