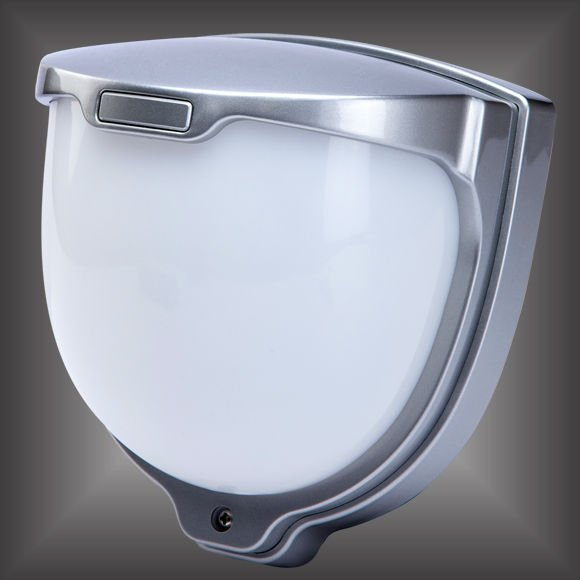

Multiple Waterproof Outdoor Motion Detector PIR Sensor (GJD-300)

Prod Model:	GJD-300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	155mm× 170mm× 115mm
Type:	Sensor
Application:	Home, Industry
Usage:	Anti-theft, Anti-theft~

Product Description

Large inside space for easy installation and operation
Automatic temperature compensation, high detecting sensitivity
Built-in anti-tamper funtion
Multiple waterproof design; Strong stealing; Good waterproof effect
Free rotary structure design allowing detecting angle adjustable freely
Pet immunity
Super anti-outdoor sunlight function
Advanced micro-computer process technology, no false alarm
Supports standard interface for various alarm pannels

Technical Parameter:
Power Supply: DC 10-14V
Static Current: 15mA
Working Current: 7mA
Detecting Angle: 80° — 110°
Direction adjustment: 80° (Left/Right)/40° (Tilt angle)
Installation Height: 3.5m (Max. )/2.5m (Ideal)
Response Time: 5 seconds
Detecting Interval: 8 seconds
Warm-up Time: 60 seconds
Alarm Output: N/C or N/O optional
Anti-tamper: N/C
Alarm Indicator: LED (On/Off)
Double Anti-sunlight: 30000LUX
IP Rating: IP55
Working Temperature: -20° C~55° C
Size: 155mm× 170mm× 115mm
