| Prod Model: |
EP3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000W-6000W |
| Charging Current: |
Max 70AMP |
| DC: |
12V/24V/48V |
| Output Wave: |
Pure Sine Wave |
| Transformer Buit In: |
Yes |
| Generator Compatible: |
Yes |
| Buit In Battery Charger: |
Yes |
| Nominal Input Voltage: |
230VAC(120VAC Selectable) |
| Nominal Input Frequency: |
50Hz/ 60Hz(Auto Detection) |
| Phase: |
Single |
Product Description
MUST 1000W 2000W 3000W Pure Sine Wave Power Inverter
EP3000 Series Freature:
1. 1kw/1.5kw/2kw/2.5kw/3kw/3.5kw/4kw/5kw/6kw
2. Max. charge current 75A.
3.Pure sine wave.
4. Inbuilt pure copper transformer
5. Support inductive load
6. Automatic three-stage batteryCharger (bulk, absorption, float)
7. With 150cm battery cable
8. Support generator
9. Support solar system
10. Remote control / RS232 optional
11. CE/ SONCAP certificate
12 Support motor 1HP/2HP/3HP

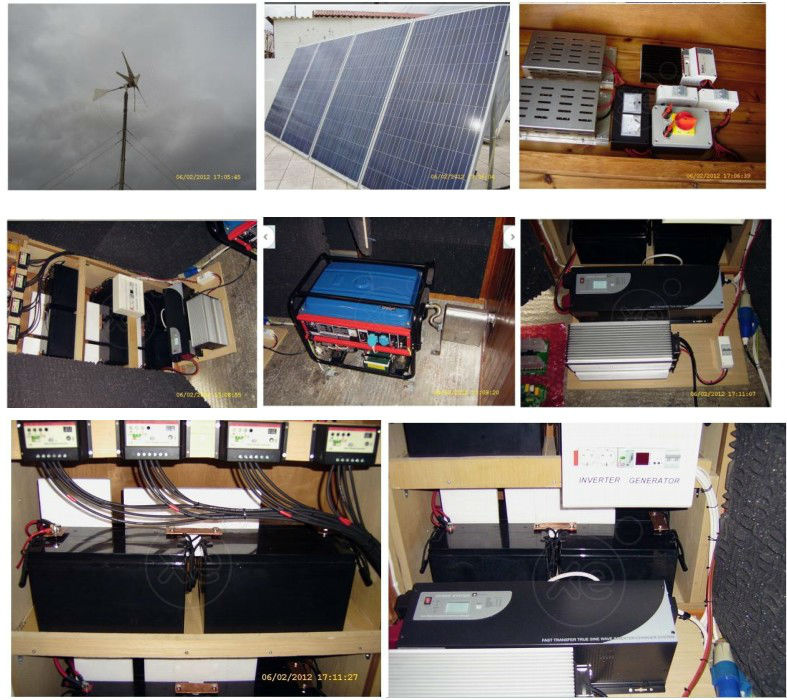

EP3000 Series Pure sine wave inverter use on the Solar System
EP3000 Series connection:
What is the Technical Specifications of power inverter 1-6KW ?
| EP3000 Series Inverter 1KW-6KW Specification |
| MODEL | EP1012/1024 | EP1512/1524 | EP2012/2024 | EP3012/3024/3048 | EP4024/4048 | EP5024/5048 | EP6024/6048 |
| Rated Output Power (W) | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| LINE MODE SPECIFICATIONS |
| Input Voltage | 230Vac(120VAC selectable) |
| Input Frequency | 50Hz/60Hz (Auto detection) |
| Output Voltage Waveform | Pure sine wave |
| Over-Load Protection(SMPSload) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | >95% |
| Auto Transfer Relay | 30A | 40A |
| Transfer Time | 10ms (typical) |
| Pass through without Battery | Yes |
| Max Bypass Overload Current | 30A |
| INVERT MODE SPECIFICATIONS |
| Output Voltage Waveform | Pure sine wave |
| Power Factor | 1 |
| Output Voltage (V) | 230Vac/120 ±10% | 230Vac±10% |
| Output Frequency (Hz) | 50/60Hz ± 0.3Hz |
| Auto Tracking Main Frequency (Hz) | 50Hz @ 48-54Hz; 60Hz @ 58-64Hz |
| Output Voltage Regulation | ± 10% rms |
| Efficiency | > 80% |
| Over-Load Protection(SMPSload) | (110%150% ±10%; Fault (shutdown output) after 20s |
| Surge Rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000 VA |
| Capable Of Starting Electric Motor | 1 HP | 2 HP | 3 HP |
| Inverter Breaker Size | 10A | 30A | 40A |
| DC Input Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Min DC Start Voltage | 11V/22V/43V |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery; 42.0Vdc ± 0.6Vdc for 48V battery |
| Low DC input Shut-down | 10.0Vdc ± 0.3Vdc for 12V battery; 20.0vdc± 0.6Vdc for 24V battery; 40.0Vdc± 0.6Vdc for 48V battery |
| High DC input Alarm & Fault | 16Vdc ± 0.3Vdc for 12V battery; 32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery |
| High DC input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery |
| Power saver | Load ≤25W |
| CHARGE MODE SPECIFICATIONS |
| Input Voltage | 230Vac / 1200Vac |
| Input Voltage Range | 155-265Vac / 96-127Vac |
| Output Voltage | Same as input voltage |
| Multi Stage Smart Charger (Amp) | 35A/20A | 65A | 65A/40A | 65A/45A/25A | 65A/35A | 65A/40A | 65A/50A |
| Charge Current Adjustable Gear | 25%, 50%, 75%, 100% |
| Charger Short Circuit Protection | Circuit breaker |
| Over Charge Protection | Bat. V ≥ 15.7Vdc/31.4Vdc/62.8Vdc, beeps 0.5s every 1s & fault after 60s |
| GENERAL SPECIFICATIONS |
| Safety Certification | CE, Soncap, ISO9001 |
| Operating Temperature Range | 0°C to 40°C |
| Storage temperature | 15°C below zero to 60°C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Net Weight (KG) | 16 |
| 21 | 24 | 35 | 44 | 45 |
| Gross Weight (KG) | 19 |
| 24 | 28 | 39.2 | 48 | 49 |
| Inverter Size | 1000W/1500W/2000W/3000W: 423X185X160MM 4000W/5000W/6000W: 600X185X155MM |
| Carton Box Size | 1000W/1500W/2000W/3000W: 570*315*300MM 4000W/5000W/6000W: 755*319*288MM |
| Wooden Case Size | 1000W/1500W/2000W/3000W: 614X362X359MM 4000W/5000W/6000W: 799X362X359MM
|
