| Prod Model: |
PV1500 400-800VA |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave: |
Modified Sine Wave |
| AC Input Voltage Range: |
90-280VAC |
| AC Charger: |
15A/20A |
| Inside PWM Solar Controller: |
50A |
| Battery Reverse Protection: |
Yes |
| Three Steps Intelligent Charging Control: |
Yes |
| Battery Cable: |
8AWG 80cm (Doule Line) |
| Capacity: |
1000va to 2400va |
| DC: |
12V/24V |
| Coloar: |
Silver, Green, Red |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
501 - 1000W |
| Application: |
Solar System |
| Brand: |
Must or OEM |
Product Description

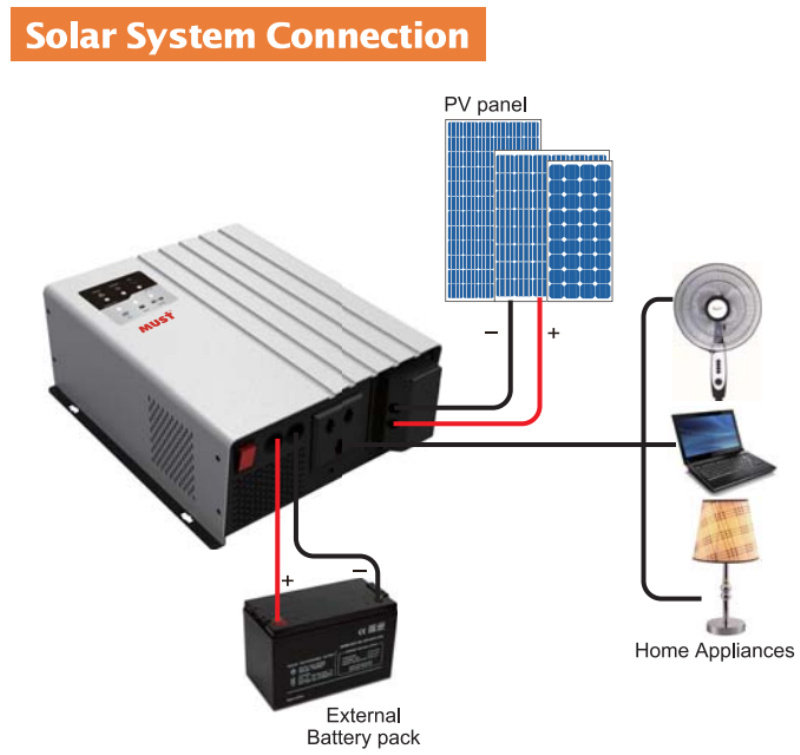

MUST 400VA 24VDC to 230VAC High Frequency Low Noise Inverter
Model:PV1500 400-800VA
Description
What is Solar inverter?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the PWM. It can increase charge current up to 30% or more compared to traditional charge controllers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- Modified sine wave AC output, wide applicaton range.
- Charge current 15/20A adjutable for model 1000VA 1400VA
- Inbuilt with 50A PWM solar charge controller
- Three steps intelligent charging control.
- Battery reverse protection.
- battery cable 8AWG 80CM (doule line)
- compact size fit for home use, small solar system.
Specifications
MODEL | PV11-1000 | PV11-1400 | PV11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Rated Power | 1000VA/660W | 1400VA/800W | 2400VA/1440W |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 50Hz/60Hz +/-1 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50HZ/60HZ (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC+/-0.4V | 21.0VDC+/-0.8V |
| Low Battery Cutoff | 10.0VDC+/-0.4V | 20.0VDC+/-0.8V |
| High Voltage Cutoff | 15.0VDC+/-0.4V | 30.0VDC+/-0.8V |
| AC CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC+/-0.2V | 28.8VDC+/-0.4V |
| Charger Voltage (Vbat<12.5V) | 13.7VDC+/-0.2V | 27.4VDC+/-0.4V |
| Charging Current | 15A/20A±2A | 10A±2A |
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp |
| SOLAR CHARGER | Maximum PV Charge Current | 50A |
| DC Voltage | 12V/24V atuo work |
| Maximum PV Array Power | 150W*3 solar panels | 150W*4 solar panels |
| MPPT Range @ Operating Voltage | 16~55VDC |
| Maximum PV Array Open Circuit Voltage | 55VDC |
| Maximum Efficiency | >95% |
| Standby Power Consumption | <2W |
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 268*260*90mm |
| Net Weight (kg) | 3.5 |
| OTHER | Operation Temperature Range | 0°C to 50°C |
| Audible Noise | 50dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
