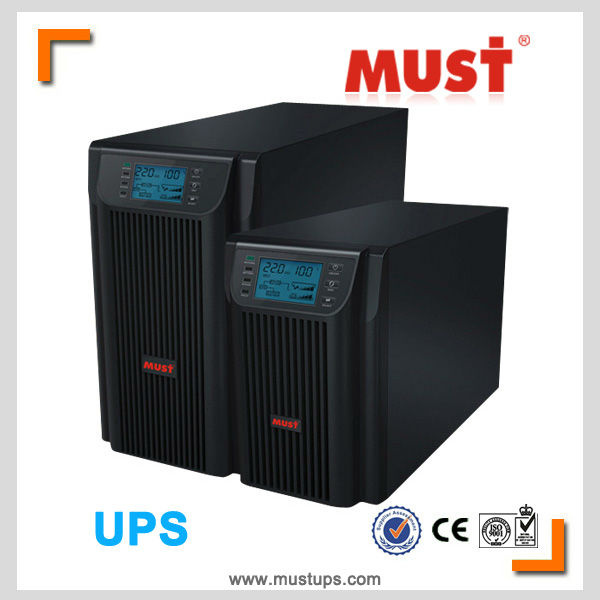

Must Eh5000 1kVA~6kVA High Frequency Online UPS

Prod Model:	EH5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
19" Wide Rack-Mount Online UPS 1-6ks:	2u 3u Height Rack
Input Voltage:	230V
Display:	LCD+LED Display
Rated Power:	1kVA~6kVA
Model:	Eh5000
Back Time:	30minutes
Technology:	IGBT
Cold Start Function:	Yes
Monitoring Function:	RS232
Operating Environment:	0-40
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Must OEM ODM

Product Description

Must Brand Genuine Manufacturer 1kVA~6kVA High Frequency Online UPS



Features:

1 pure sine wave ups adopts advanced full digitalized dsp-base micro-processor control tech;
High reliability power solution

2 sine wave ups of double convertion structure: Ac to dc rectifier, dc to ac inverter;

3 online ups in advanced power factor correction ac to dc rectifier, high input power factor of 0.99
Better ac-ultilization

4 online ups power supply, sine wave ups in advanced, transformer-less, dsp-based dc to ac Igbt
Inverter tech: High stability, high efficiency, power-saving;

5 sine wave ups, rack mount ups, 1 kva ups, 2 kva ups, 3 kva ups thorough communication interface
Standard RS232, optional USB, AS400 expansion card, SNMP network monitor, power management
Tool, protocol

6. Wide input range allow ups keep in ac-mode longer, power-saving and extends battery service time
Tower 1-3kva: 145-275vac
Rack mount 1-3kva: 115-300vac
Output power factor: 0.8
Inverter efficiency: 0.85(ac-mode), 0.9(battery-mode)
7 battery dc nominal voltage:
1kva/s: 24/36vdc
2kva/s: 72/96vdc
2ks rack mount: 72vdc
3kva/s: 96/96vdc

Pure sine wave online uninterruptible power supply
Online ups power supply, rack mount ups, 19 inch rack mount ups

Specification

pure sine wave ups		1 kva ups		2 kva ups	3 kva ups
rated power		800 W		1600 W	2400 W
INPUT
Voltage Range (145-275vac)	Low Line Transfer	160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or
		80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 %
		(based on load percentage 100%-80%/80%-70%/70%-60%/60%-0)
	LowLine Comeback	175 VAC ± 5 % or 85 VAC ± 5 %
	High Line Transfer	300 VAC ± 5 % or 150 VAC ± 5 %
	High Line	290 VAC ± 5 VAC or 143 VAC ± 3 VAC
	Comeback
Frequency Range		46-54Hz
Phase		Single phase with neutral ground
Power Factor		≥0.99  with pfc rectifier
OUTPUT
AC Voltage Regulation (Bat. Mode)		±1%
Frequency Range		47 ~ 53 Hz or 57 Hz ~ 63 Hz
(Synchronized Range)
		50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Frequency Range
(Bat. Mode)
Current Crest Ratio		3:1
Harmonic Distortion		<= 3 % THD (Linear Load)		<= 4 % THD (Linear Load)
		<= 6 % THD(Non-linear Load)		<= 7 % THD(Non-linear Load)
Transfer Time	AC to DC	Zero transfer time ups
	Inverter to Bypass	2 ms (Typical)
Waveform(Bat. Mode)		Pure Sine Wave  ups  sine wave ups, online sinusodal ups
EFFICIENCY
To AC Mode		85%		90%
To Battery Mode		83%
BATTERY
Standard Model	Battery Type	12 V / 7 AH	12 V / 9 AH	12 V / 7 AH	12 V / 7 AH
	Numbers	2 or 3	3	6 or 8	8
	Typical Recharge Time	4 hours recover to 90% capacity
	Charging Current (max.)	user settable 1amp, 2amp,4amp,6amp
	Charging Voltage	13.8vdc each cell ± 1%
Long-run Model	Battery Type/Numbers	SLA 36vdc or 96vdc external fixed
	Charging Current (max.)	6.0 A
	Charging Voltage	13.8vdc each cell ± 1%
INDICATORS
LCD Panel		UPS status, Load percentage, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		beeper beeps once every 4 seconds
Low Battery		beeper beeps once every 1 second
Overload		beeper beeps twice every 1 second
Fault		Continuously beeping
PHYSICAL
Size DXWXH (mm)		400x145x220	460x192x348
OPERATING ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 45dB @ 1 Meter
MANAGEMENT
Smart RS-232/ optional USB		Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC
optional  intelligent slot & SNMP		Network monitor and power management tool/protocol

Product Advantages

1,DC and AC no transfer time, zero interrupt;
2,DC and AC mode output waveform for pure sine wave;
3,Extremely strong overload capacity,when load capacity <130%,the UPS can normally work after ten minutes to transfer bypass supply;
4,Inverter has perfect control circuit, output voltage accuracy(220±1%) THD(≤3%), no interference , good transient response;
5,Smart RS232 port for computer monitoring;
6,Strong anti-jamming capability, high reliability, more expensive price;
7,N+X parallel redundancy.
