Must High Frequency Three Pahse 40kVA 380VAC Online UPS

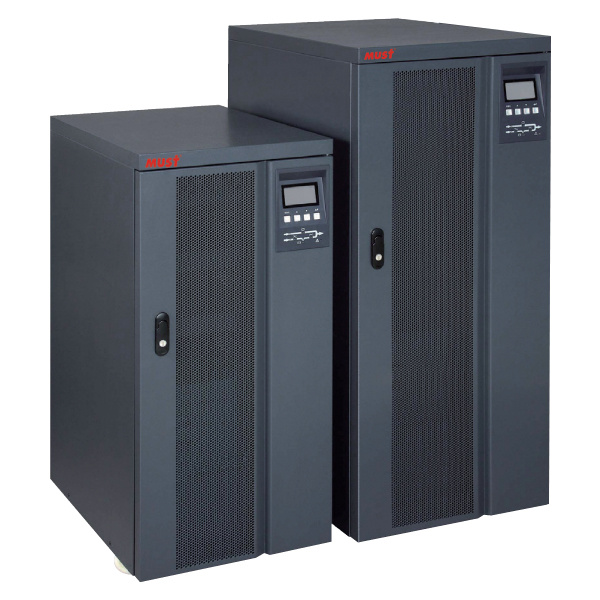

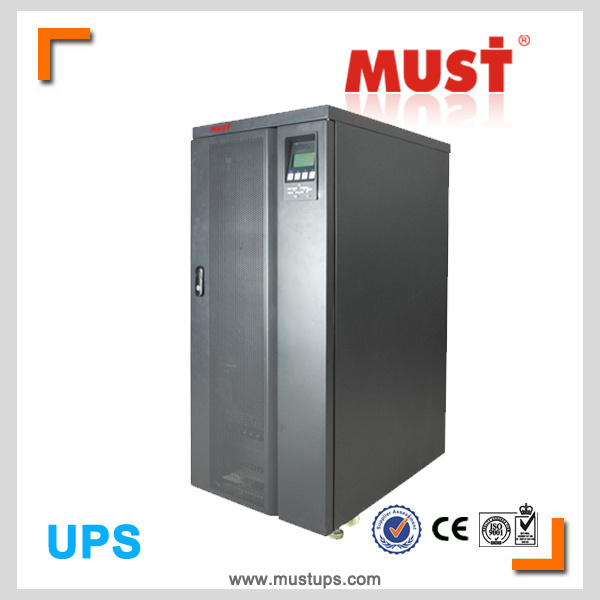

Name: Must High Frequency Three Pahse 40kVA 380VAC Online UPS
Brand: all-electronics-online.com
SKU: 785003245
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 1950-2000/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EH9335
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal AC:	380V/220V, 400V/230V, 415V/240V 50Hz/60
Processor:	DSP-Base High Performance
AC-DC Power Convertion:	Pfc + SCR Rectifier Module
Input P.F.:	0.99
DC-AC Power Convertion:	Full DSP-Base IGBT Inverter
Output P.F.:	0.8
Normal Mode Efficiency:	0.94
Eco Mode Efficiency:	0.98
Capacity:	20-40kVA
Warranty:	One Year
Phase:	Three Phase
Type:	On-line
Protection:	Switch Transient,Voltage Dips Sags, Thdi
Brand:	Must,OEM or ODM

Product Description

MUST High Frequency Three Pahse 40kVA 380VAC Online UPS

Ups power: 20-40kva three phase in and out online high frequency design

Feature:
Rated power 20KVA to 40KVA
IGBT technology
High efficiency, ECO:98%, Normal:94%
Automatic and manual bypass
Built in isolate transformer (Optional)
Charge current adjustable
With Parallel card
SNMP card for communication (Optional)
Support RS232,RS485,AS400 monitoring function with free CD

MODEL

3C3 EH 20KS

3C3 EH 30KS

3C3 EH 40KS

CAPACITY

20KVA/16KW

30KVA/24KW

40KVA/32KW

INPUT

Phase

three phase + N + G

Voltage

210 - 475VAC

Frequency Range

40 - 70Hz (50Hz or 60Hz automatically)

THDI

Power Factor

>0.99

BATTERY

Type

28/30/32 cell Vrla sealed lead acid battery

Backup time

Depends on capacity of external battery

OUTPUT

Voltage

380 x (1±1%) VAC

Frequency

50/60Hz

Phase

three phase

Power Factor

0.8

Over load

<125% 10min; 125-150 1min; >150% 0.5min

EFFICIENCY

AC mode

94%

Battery mode

94%

ECO mode

98%

Fan speed control intelliqently function

yes

DISPLAY

LCD

UPS work status and operation instruction: input voltage, output voltage, current, frequency, battery voltage, charge/discharge current, and fault status

LED

UPS work status

Alarm

Buzzer and light flash

Communication

RS232, RS485, AS400, SNMP, EPO

ENVIRONMENT

Temperture

0 - 40°C

Humidity

≤93% [ (40±2) °C, Non - condensing ]

WEIGHT

Net Weight

82Kg

110Kg

114Kg

Gross Weight

122Kg

160Kg

164Kg

Product Dimensions W*H*D(mm)

420*956*643

470*1150 *710

HOW MUST CAN HELP YOU
We help you save energy and cut down on your electricity bill
We help you generate solar energy - the most clean, green and cost-effective solution
We offer innovative and cost-effective power backup solutions
We protect your home and your business with uninterrupted
We assure you peace of mind with high quality and innovative products
We provide reliable support and services round the clock

MUST POWER LIMITED

Welcome to contact me freely.
MUST Power Limited
Hedy Huang
+86-151 1813 5723

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
