Must LCD/LED 3000 Watt LED Battery Type Choosable Power Inverter
| Price: |
US $ 180-450/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
EP3000 4-6KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000W-6000W |
| Charging Current: |
Max 70AMP |
| DC: |
12V/24V/48V |
| Output Wave: |
Pure Sine Wave |
| Transformer Buit In: |
Yes |
| Generator Compatible: |
Yes |
| Buit In Battery Charger: |
Yes |
| Nominal Input Voltage: |
230VAC(120VAC Selectable) |
| Nominal Input Frequency: |
50Hz/ 60Hz(Auto Detection) |
Product Description

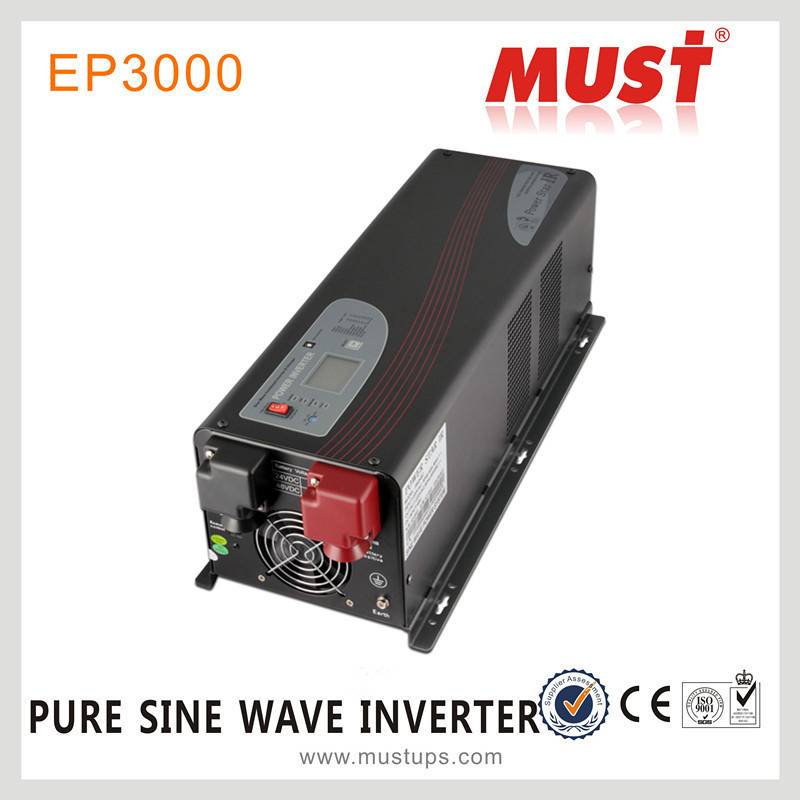

Must LCD/LED 3000 Watt LED Battery Type Choosable Power Inverter
Model:EP3000 4-6KW
Features· Durable construction for long life under extreme environmental conditions.
· Low idle current (less than 1 watt) conserves energy when no loads are present.
· Soft start capability for starting heavy loads.
· Built-in starting control circuits for two- and three-wire generator starting systems.
· Simplified controls with a snap-on cover that protects settings from being accidentally changed.
· Better thermal performance allows full output power to 50° C (122° F) without de-rating.
· High surge capacity starts more difficult loads and handles overload conditions reliably.
· Durable powder coated corrosion resistant steel chassis.
· 70-amp automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remotetemperature sensor for increased performance.
· New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time.
· Pure copper transformer inside and pure copper DC terminal port outside.
· Copper transformer, low consumption and heat-resisting, improves work efficiency.
· Big charge current: 30-70A, suitable for long power failure area.

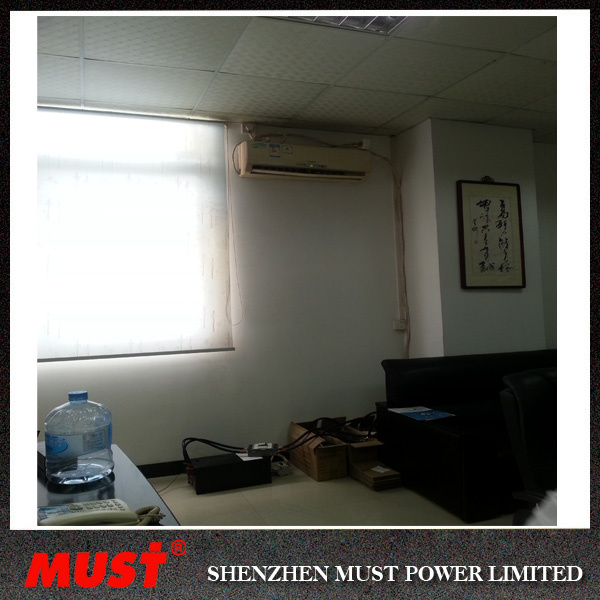

3kw connect 1.5hp air conditioner
Specifications| MODEL | 230V Models |
| OUTPUT |
| Power Levels crated at nominal inputs | 1KW;2KW;3KW |
| Output Voltage | 220V/230V/240V Selectable |
| Voltage Waveform | Pure Sine wave |
| Crest Factor | 3:'1 |
| Output Frequency | Auto Select for 50/60Hz,47Hz ~55Hz for 50Hz nominal,56Hz ~ 65Hz for 60Hz nominal |
| (Synchronized to Mains) |
| efficienly(DC mode) | >80% |
| Surge Rating | 3000VA / 6000VA / 9000VA |
| Capable of motor | 1kw/2kw: 1HP 3KW:2HP |
| Transfer time | 10ms typical |
| protection | Over load protection, battery over voltage & under voltage protection |
| Oover temperature protection |
| short circuit protection |
| INPUT |
| Nominal Voltage | 220V/230V/240V Selectable |
| Input Frequency | 40Hz ~ 80Hz, 50/60Hz auto-sensing |
| Efficiency (line mode) | >95% |
| Noise Filtering | Full time EMI/RFI filtering |
| Voltage Range | 155Vac-265Vac |
| Charge current | 65A max. |
| Inverter main features | huge charge current |
| pure copper transformer |
| pure sine wave |
| supports inductive loads |
| Surge Protection | 1KW-3KW:430 Joules |
| BATTERY |
| Battery type | Lead-Acid 50Ah~500Ah (Recommended) | Lead-Acid 50Ah~500Ah (Recommended) |
| DC Voltage | 1KW:12Vdc | 2KW:12Vdc |
| 2KW:24Vdc | 3KW:12Vdc |
| 3KW:24Vdc | 3KW: 48Vdc |
| Typical backup time | up to external battery |
| Charging method | battery charger (bulk, absorption, and float) |
| charge current is ajustable 25% 50% 75% 100% (optional) |
| Maximum charging current | 1000W 12V:35A | 2000W 12V:65A |
| 2000W 24V:35A | 3000W 12V:65A |
| 3000W 24V:45A | 3000W 48V:25A |
| Average charging | Quick charging mode:15.7V-54V maximum. |
| voltage for each battery | Trickle charging mode:13.5V -52V |
| Protection | Over current protection |
| Over charging voltage protection |
| When temperature inside the unit is over 45°C ,charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate |
| Monitoring | RS232 communication port |
| remote control cable 10 meters |
| SOLAR CHARGER |
| Rating voltage | 12V / 24V / 48V |
| DC input range | 12V model : 12 ~ 21Vdc;24V model : 24 ~ 42Vdc;48V model : 48 ~ 84Vdc |
| Charging method | Constant voltage with current limiting by PWM control |
| Charging voltage | 12V model:13.5Vdc;24V model: 27.0Vdc;48V model: 54.0Vdc |
| Power rating | 12V model : 1000W/2000W (13.5Vdc @ 37A) |
| 24V model : 1000W/2000W (27.0Vdc @ 37A) |
| 48V model : 3KW/4KW/5KW/6KW (54Vdc @ 18.5A) |
| Protection | DC input polarity protection, DC input short circuit protection. |
| (when battery is connected), DC output over current protection. |
| COMMUNICATIONS & MANAGEMENT |
| Control panel | LCD&LED indicators |
| Audible alarm | Alarm on battery:Low battery & Battery over voltage |
| Alarm on abnormal operation:Over load, Short-circuit, & Over heat |
| Green mode function | 1% to 14% of full load |
| (Auto-shut-off in blackout) | The default setting is OFF. |
| Cooling fan control | Auto on / off, controlled by temperature & operation mode |
| ENVORMENT AND SAFETY |
| Operating Temperature | Up to 1500 meters:0°C to 40°C (32°Fto 104°F) |
| Transit/storage Temp. | -15°C to 55(5°F to 131°F) |
| Relative Humidity | 5 - 95% non condensing |
| Operating Altitude | 0 ~ 3000 meters |
| Quality control system | ISO 9001 |
| PHYSICAL |
| Appearance | Size(mm)LxWxH | 570*315*300mm |
| Weight(Kg) | 1000W/19kg ;2000W/24kg ;3000W/28kg |
Welcome to contact me freely.MUST Power LimitedAda Ma+86-132 5953 2991
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
