| Prod Model: |
EP2000 PRO 0.3-1KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Current: |
25A |
| Weight: |
36kg |
| Display: |
LED/LCD |
| Size: |
Size: 500*260*455mm |
| Protection: |
Overload Shor Circuit Protection |
| Function: |
Cold Start |
| Max Charge Current: |
25A |
| Max Bypass Current: |
10AMP |
| Phase: |
Single |
| Power Source: |
Electric Power |
Product Description

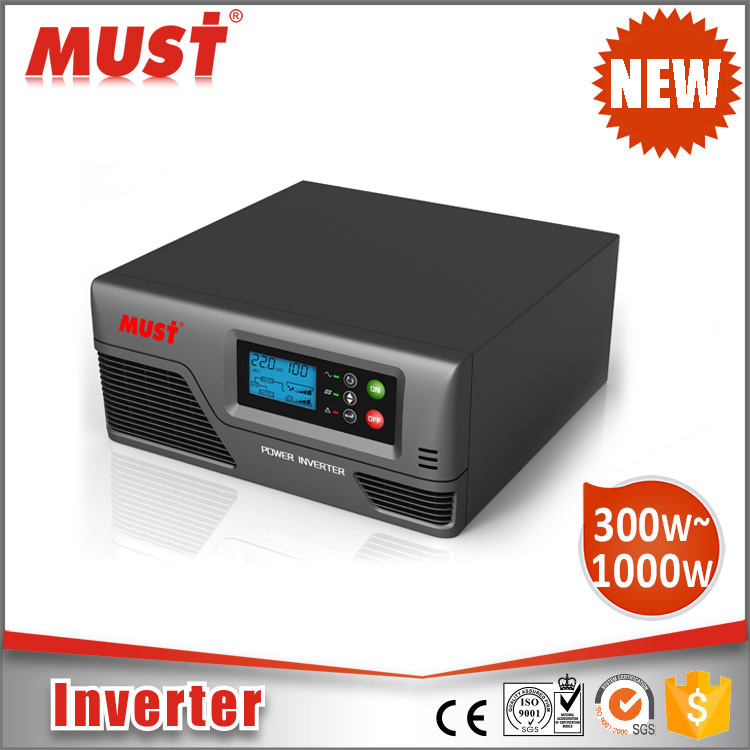

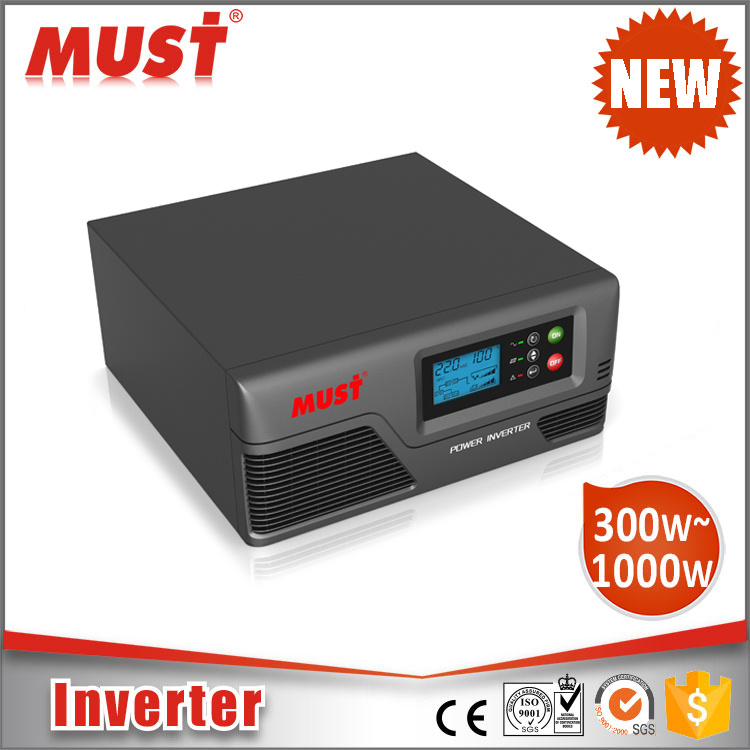

MUST Low Frequency 300-1000W Pure Sinewave Power Inverter EP2000 PRO
Model:EP2000 PRO 0.3-1KW
Features
Rated power 300W to 1000W
Pure sine wave output
Smart LCD setting ( frequency , charge voltage,
charge current, etc).
3 steps charging algorithm
Built in AVR function
Overload and short-circuit protection
Battery reverse polarity protection (Optional)
Deep discharge protection
Cold start function
Support USB, RS232 (Optional) monitoring function with free CD
Specifications| Model | EP20-0312 Pro | EP20-0612 Pro | EP20-0812 Pro | EP20-1012 Pro | EP20-0324 Pro | EP20-0624 Pro | EP20-0824 Pro | EP20-1024 Pro |
| Default Battery System Voltage | 12VDC | 24VDC |
| INVERTER OUTPUT | Rated Power | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| Surge Rating(20ms) | 900W | 1800W | 2400W | 3000W | 900W | 1800W | 2400W | 3000W |
| Waveform | Pure Sine Wave |
| Rated Output Voltage | Inverter:230VAC(+/-2% RMS), AVR:195VAC-245VAC |
| Output Frequency | 50Hz/60Hz +/-0.2Hz |
| Inverter Efficiency(Peak) | >75% | >81% |
| Bypass Efficiency | >95% |
| Output Transfer Time | Typical:6ms 10ms(max) |
| AC INPUT | Voltage | 220/230/240VAC |
| Selectable Voltage Range | 140~280VAC+/-2% |
| Low Battery Alarm | 140VAC+/-2% |
| Low Voltage Recover | 150VAC+/-2% |
| High Battery Alarm | 280VAC+/-2% |
| High Voltage Recover | 270VAC+/-2% |
| Low Frequency Alarm | 45+/-0.2Hz |
| Low Frequency Recover | 46+/-0.2Hz |
| High Frequency Alarm | 65+/-0.2Hz |
| High Frequency Recover | 64+/-0.2Hz |
| Norminal Input Range | 50Hz/60Hz +/-0.2Hz |
| AC Auto Restart | YES |
| BATTERY | Minimum Start Voltage | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+0.5V |
| Low Battery Alarm | Low Battery Voltage Cutoff+0.5V | Low Battery Voltage Cutoff+1.0V |
| Low Battery Cutoff | 10-12.0VDC | 20.0-24.0VDC |
| High Battery Cutoff | Nominal Voltage+0.5V | Nominal Voltage+1.0V |
| AC CHARGE | Floating Voltage | 13.5 /13.6/ 13.7VDC | 27.0/ 27.2 /27.4VDC |
| Nominal Voltage | 13.8~14.5V | 27.6~29V |
| Maximum Charge Current | 300W | 600W | 800W | 1000W | 300W | 600W | 800W | 1000W |
| 10A | 20A | 25A | 30A | 5A | 10A | 15A | 15A |
BYPASS
& PROTECTION | Input Waveform | Pure Sine Wave |
| Input Frequency | 50Hz or 60Hz |
| Low Frequency Trip | 45+/-0.2Hz |
| Low Frequency Trip | 65+/-0.2Hz |
| Overload Protection | 110%~125%R Load fault after 30S 125% ~150%R Load fault after 3s
>150%R Load fault after 500ms |
| Over Temperature Protection | >=90ºC |
| Bypass Output Protection | 10A 250VAC |
| Output Circuit protection | YES |
| Battery Reverse Protection | Optional |
| Battery Low Voltage Protection | YES |
| Battery High Voltage Protection | YES |
| Bypass Breaker Rating | 10A |
| Maximum Bypass Current | 10A |
| MECHANICAL SPECIFICATION | Dimensions | 315*145*210mm |
| (N.W) kg | 300W | 600W | 800W | 1000W |
| 7.5 | 10.7KG | 12.5 | 13.5KG |
| Shipping Dimensions (W*H*D) | 420*280*225mm |
| (G.W)kg | 300W | 600W | 800W | 1000W |
| 8 | 11.5KG | 13 | 14.0KG |
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Delivery time: 7 workdays for sample; 20-25 workdays for mass order
3. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
**Welcome Sample Order to test quality firstly**
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
Want to know more about our Company, Products, Price, Packing, Shipping and
any discount? Let's Inquiry with Hedy NOW !!!!!
MUST Power Limited
Hedy Huang
+86-151 1813 5723
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
