| Prod Model: |
EP1100 0.72-1.44KW |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Charge Current: |
10A/20A Adjutable |
| PCB Board: |
Double Layers |
| Narrow Input Voltage Range: |
170-280VAC |
| Wide Input Voltage Range: |
90-280VAC |
| Wave: |
Modified Sine Wave |
| DC Battery: |
12V or 24V |
| Frequency: |
High Frequency |
| Charge Function: |
Three Steps Intelligent Charging Control |
| Display: |
LCD Display |
| Name: |
Must Ep1100 Series High Frequency Modified Sine Wa |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Home Theater |
| Brand: |
Must OEM |
Product Description

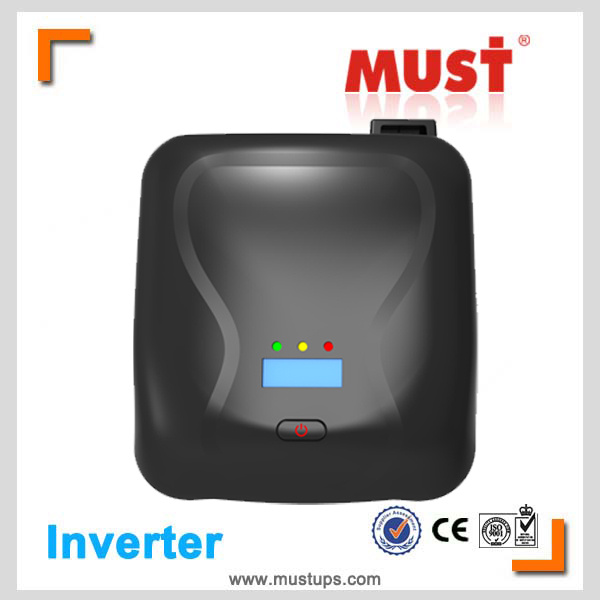

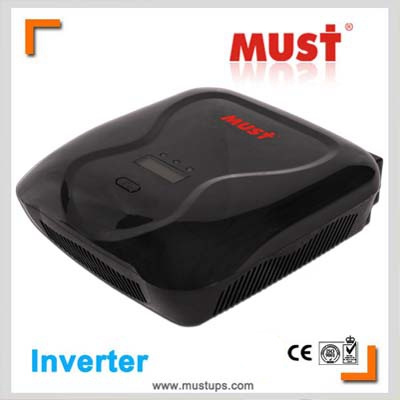

MUST Low Frequency 720Watt Power Inverter 10A 20A Adjustable
Model:EP1100 0.72-1.44KW
Descriptions
High reliability with CPU control.
Inner-equipped protection of over-load, short-circuit, over-voltage, low-voltage over-heating
Self-diagnosis function, capable of detecting status at inverter and battery in the Inverter.
Extra long standby time. And additional battery connections possible for longer power supply time according to customer's requirements.
With battery reverse protection.
Specifications| MODEL | EP11-1200 | EP11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
INVERTER
OUTPUT | Reted Power | 1200VA/720W | 2000VA/1440W |
| Waveform | Modifide Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 5OHz/60Hz±0.5 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 0.72 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
AC
INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC
| 21.0VDC
|
| Low Battery Alarm | 10.5VDC±0.3V
| 21.0VDC±0.3V
|
| Low Battery Cutoff | 10.0VDC±0.3V
| 20.0VDC±0.3V
|
| High Voltage Alarm | 16.0VDC±0.3V
| 32.0VDC±0.3V
|
| High Battery Voltage Recover | 15.0VDC±0.3V | 30.0VDC±0.3V
|
| CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC±0.4V | 28.8VDC±0.4V |
| Charger Voltage (Vbat>12.5V) | 13.7VDC±0.2V | 27.4VDC±0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A
| 32VDC ±0.8A |
BYPASS
&
PROTECTION | Nominal Input Frequency | 50Hz or 60Hz
|
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE
|
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp
|
MECHANICAL
SPECIFICATIONS | Dimensions (W*H*D) | 246*253*87mm |
| Net Weight (kg) | 2.3 | 2.5 |
| Shipping Dimensions(W*H*D) | 320*332*127mm
|
| Shipping Weight (kg) | 2.9 | 3.1 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year
|
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Delivery time: 7 workdays for sample; 20-25 workdays for mass order
3. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
**Welcome Sample Order to test quality firstly**
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
Want to know more about our Company, Products, Price, Packing, Shipping and
any discount? Let's Inquiry with Ada NOW !!!!!
Know more about EP1100 series, pls inquiry now!!!MUST Power Limited
Ada Ma
+86-132 5953 2991
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

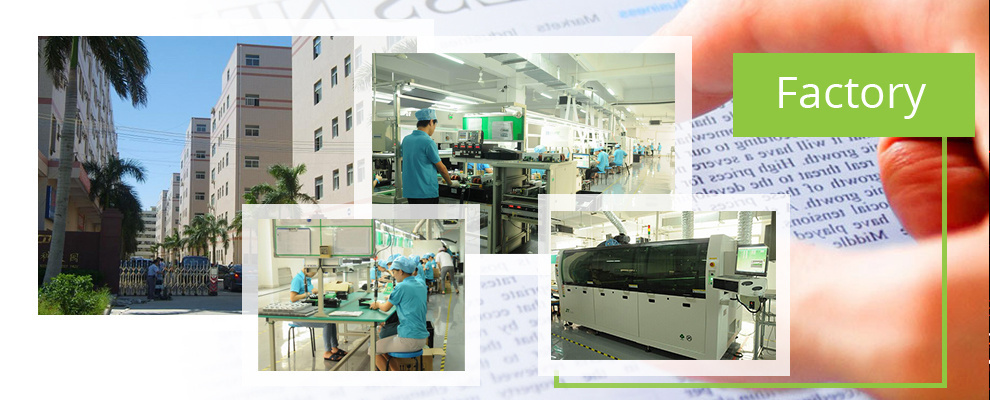

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
