| Prod Model: |
EH5110 1-6KVA |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Charge Current: |
1AMP(4.5AMP) |
| Input Voltage: |
115-300VAC |
| Transfer Time: |
0 |
| Frequency: |
High Frequency |
| Capacity: |
1-6kVA |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Application: |
Security / Monitoring / Alarm |
| Brand: |
Must or OEM |
Product Description

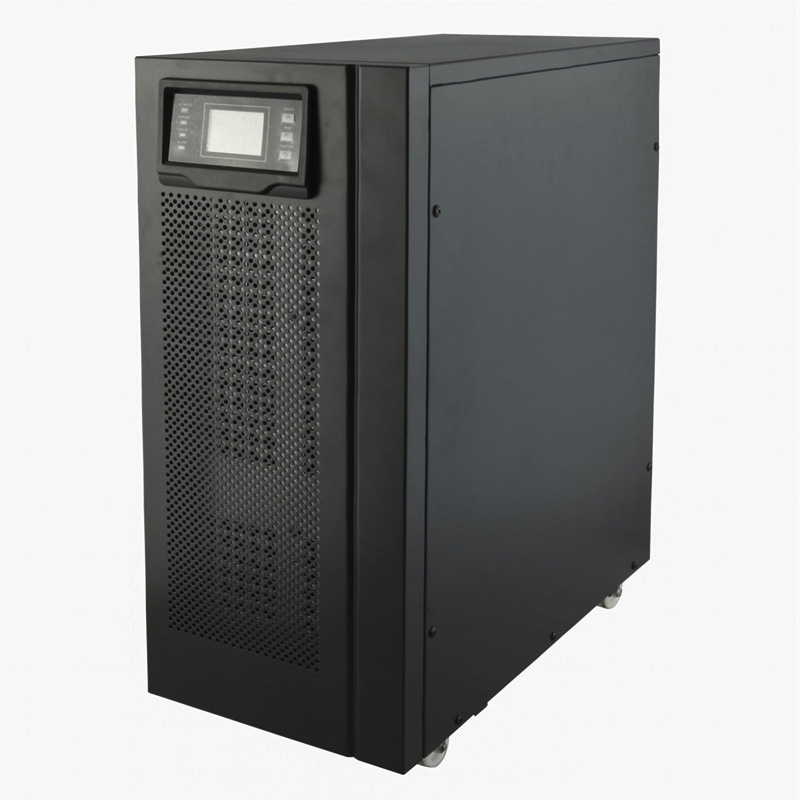

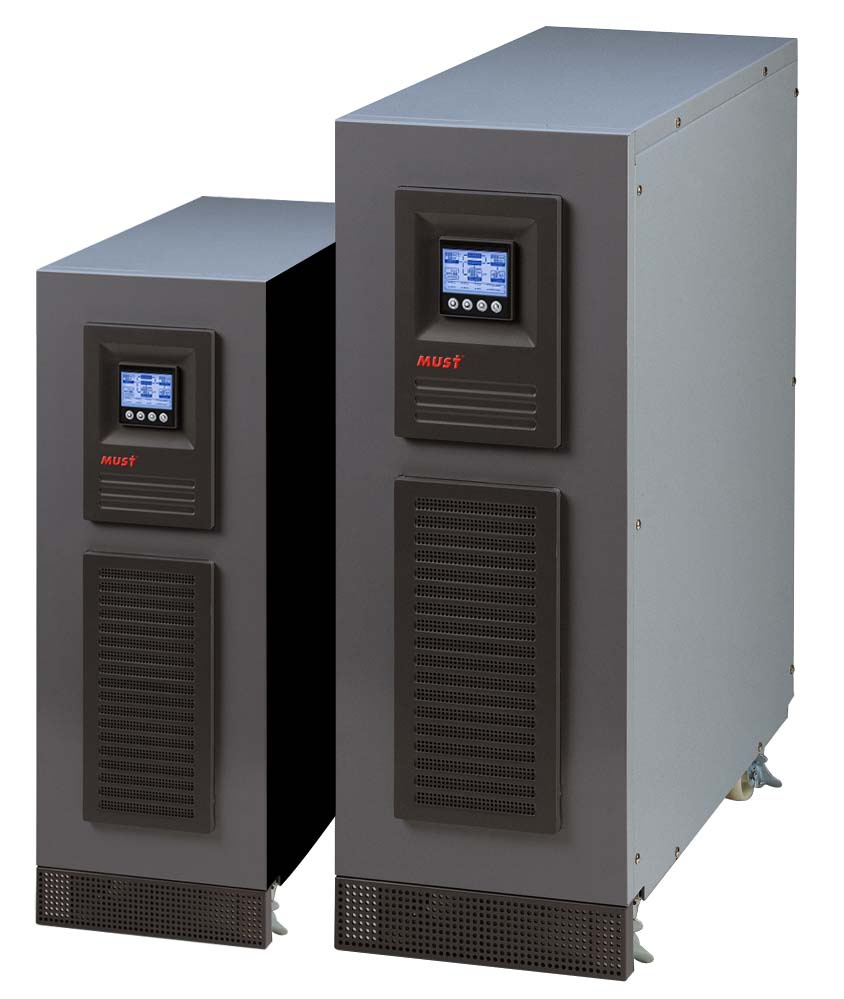

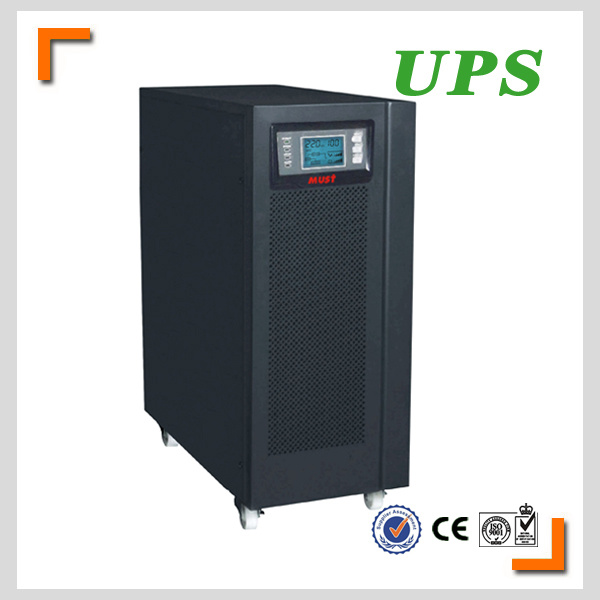

MUST Online UPS 1-10kv Three Phase Output
Main features:
1. True on-line double conversion technology with advanced microprocessor control
2. Wide input voltage range
3. LCD display
4. Zero transfer time
5. Protection against all type of power problems
6. Self test while start of the UPS
7. Site wiring fault warning
8. On-battery power-on function
9. Smart RS232 communication interface
10. Intelligent slot available
Sealed lead-acid, maintenance free battery
Specifications
Product Series |
Rack Mount 1~6kVA |
Model |
RT-C1K |
RT-C2KS |
RT-C3KS |
RT-C6KS |
Rated Power |
VA/W |
1kVA / 0.7kW |
2kVA / 1.4kW |
3kVA / 2.1kW |
6kVA/4.2kW |
Input |
Nominal Voltage |
220VAC |
Voltage Range |
115 ~ 300VAC |
176 ~ 276VAC |
Frequency Range |
46 ~ 54Hz(default), user adjustable within 40~60Hz |
46 ~ 54Hz |
Power Factor |
0.97 |
0.98 |
Connection |
IEC320-10A inlet |
IEC320-16A inlet |
Terminal Block |
Output |
Voltage |
220VAC ± 2% |
220VAC ± 1% |
Frequency |
46~54Hz or 50Hz ± 0.2Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode) |
46~54Hz (Line mode)
50Hz ± 0.05Hz ( Battery mode) |
Waveform |
Sine Wave |
Overload Capability |
108%~150% for 30 sec., ³ 150% for 300 ms |
105%~130% for 10 min., ³ 130% for 1 min. |
Current Crest Ratio |
3: 1 |
Bypass |
Automatic Transfer |
on overload and UPS failure |
Before UPS Power-on |
Default " NO" , user adjustable to " YES" |
Yes |
Voltage Range |
80~264VAC (Default), user adjustable within 80~286VAC |
176 ~ 261VAC |
Output Connections |
IEC320 -10A * 4 |
IEC320-10A * 4 |
IEC320-10A and
Terminal Block |
IEC320-10A * 4 and Terminal Block |
Transfer Time |
0 ms; less than 4 ms from inverter to bypass and vice versa |
Zero |
LED indicators |
Status |
Load level / Battery level, Battery, Utility Power, Inverter, Bypass, Overload, Fault |
Audible Alarm |
Bypass, On battery mode, Battery low, Overload, Fault |
Communications |
RS-232 Serial Interface |
Intelligent Slot;
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
Network Surge Protection |
RJ45 I/O port available for network or Fax/Modem |
Environmental |
Operating Temperature |
0 ~ 40° C |
Operating Humidity |
20 ~ 90% non-condensing |
Main Unit |
Net Weight (Kg) |
15.3 |
10.3 |
11.2 |
18.3 |
Dimensions (W x D x H) mm |
482.6 x 450 x 88 (2U) |
482.6 x 600 x 130 (3U) |
Battery Pack |
Type |
Internal Batteries |
External Battery Pack |
Nominal DC Voltage |
36VDC |
96VDC |
240VDC |
Backup Time (Full load) |
5 min |
9 min
(with 1 BP) |
5 min
(with 1 BP) |
7 min
(with 1 BP) |
Net Weight (Kg) |
-- |
25.3 |
58.2 |
Dimensions (W x D x H) mm |
-- |
482.6 x 450 x 88 (2U) |
482.6 x 600 x 130 (3U) |
