| Prod Model: |
EH5000series H6K-10KVA |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Frequency: |
High Frequency |
| Capacity: |
6-10kVA |
| Transfer Time: |
0 |
| Interface: |
RS232, RJ45 |
| AVR Function: |
Yes |
| Technology: |
IGBT |
| Display: |
LCD or LED |
| Battery: |
Lead Acid Maintenance Free Battery |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Must or OEM |
Product Description

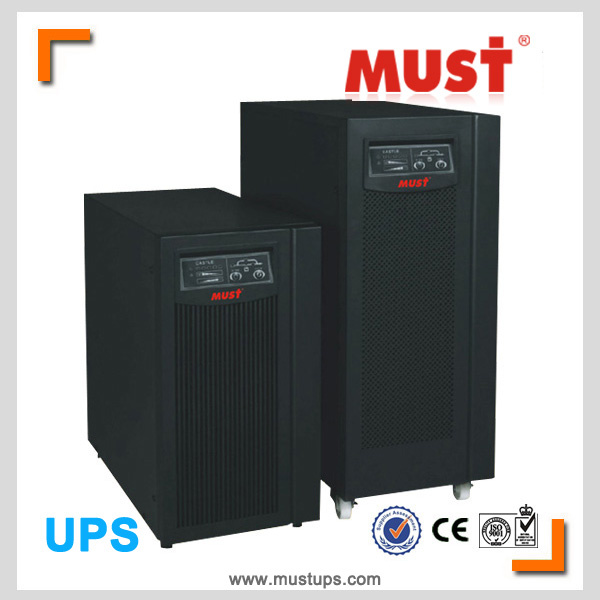

Must Power Intelligent 6kVA-10va N+1 Redundance Online UPS
Main features:
Parallel Units with a Single Output of up to 40kVA
True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
Superior Brownout, Surge & Transient Protection
Optional Extended Battery Banks & Chargers
RS-232C, USB & Optional SNMP/HTTP Agent
WINPOWER® UPS Monitoring & Management Software
| Model | EH5000-H6K | EH5000-H6KS | EH5000-H10K | EH5000-H10KS |
| CAPACITY | 6000 VA / 4200 W | 10000 VA / 7000 W |
| INPUT |
| Voltage Range | Low Line Transfer | 176 VAC @ 100% load / 110 VAC @ 50% load |
| Low Line Comeback | 186 VAC @ 100% load / 120 VAC @ 50% load |
| High Line Transfer | 300 VAC |
High Line
Comeback | 290 VAC |
| Frequency Range | 46~54 Hz or 56~64 Hz |
| Phase | Single phase with ground |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ± 1 % |
Frequency Range
(Synchronized Range) | 46~54 Hz or 56~64 Hz |
| Frequency Range (Bat. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3: 1 |
| Harmonic Distortion | < = 3 % THD (Linear Load)/< = 6 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | Zero |
| Waveform (Bat. Mode) | Pure Sine Wave |
| EFFICIENCY |
| To AC Mode | 89% |
| To Battery Mode | 88% |
| BATTERY |
| Battery Type | 12 V / 7 AH | Depending on applications | 12 V / 7AH | Depending on applications |
| Numbers | 16 | 16 | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity | Depending on battery capacity | 9 hours recover to 90% capacity | Depending on battery capacity |
| Charging Current (max. ) | 1.0 A | 4.5 A | 3.0 A | 6.0 A |
| Charging Voltage | 221.5 VDC | 221.5 VDC | 221.5VDC | 221.5 VDC |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| LED Display | Sixteen LEDs indicating UPS status, Load level, Battery level, overload, fault, and programmable outlet |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Dimension, D X W X H (mm) | 260× 570× 717mm |
| Gross Weight (kgs) | 63 | 20 | 73.5 | 23.5 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40° C (non-condensing) |
| Noise Level | Less than 55dB @ 1 Meter | Less than 58dB @ 1 Meter |
| CMANAGEMENT |
| Smart RS-232/USB | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
