Product Description
pure sine wave ups uninterruptible power supply 1kva to 3kva for serverpure sine wave ups, sine wave ups, ups uninterruptible power supply, online ups, power supply,
online ups power supply, rack mount ups, 19 inch rack mount ups
Features:
1 pure sine wave ups adopts advanced full digitalized dsp-base micro-processor control tech;
high reliability power solution
2 sine wave ups of double convertion structure: ac to dc rectifier, dc to ac inverter;
3 online ups in advanced power factor correction ac to dc rectifier, high input power factor of 0.99
better ac-ultilization
4 online ups power supply, sine wave ups in advanced,transformer-less,dsp-based dc to ac Igbt
inverter tech: high stability,high efficiency, power-saving;
5 sine wave ups, rack mount ups, 1 kva ups, 2 kva ups, 3 kva ups thorough communication interface
standard RS232, optional USB, AS400 expansion card, SNMP network monitor, power management
tool, protocol
6. Wide input range allow ups keep in ac-mode longer, power-saving and extends battery service time
tower 1-3kva: 145-275vac
rack mount 1-3kva: 115-300vac
output power factor: 0.8
inverter efficiency: 0.85(ac-mode),0.9(battery-mode)
7 battery dc nominal voltage:
1kva/s: 24/36vdc
2kva/s:72/96vdc
2ks rack mount: 72vdc
3kva/s: 96/96vdc
pure sine wave ups, sine wave ups, ups uninterruptible power supply, online ups, power supply,
online ups power supply, rack mount ups, 19 inch rack mount ups

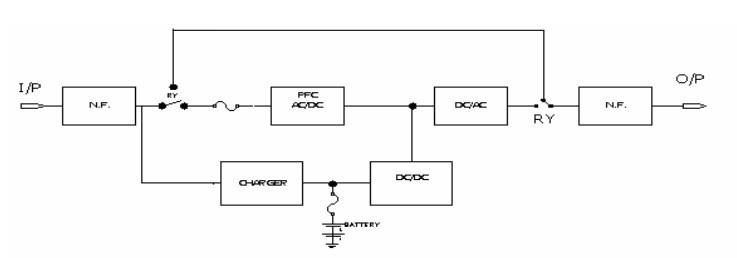

schematic diagram
pure sine wave ups, sine wave ups, ups uninterruptible power supply, online ups, power supply,
online ups power supply, rack mount ups, 19 inch rack mount ups

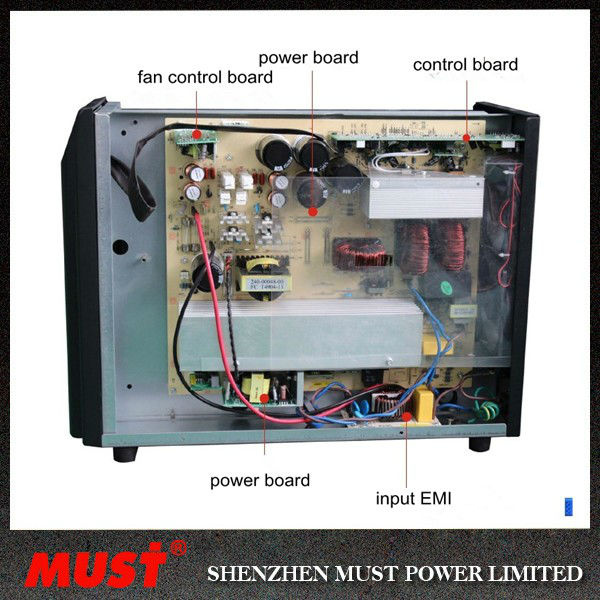

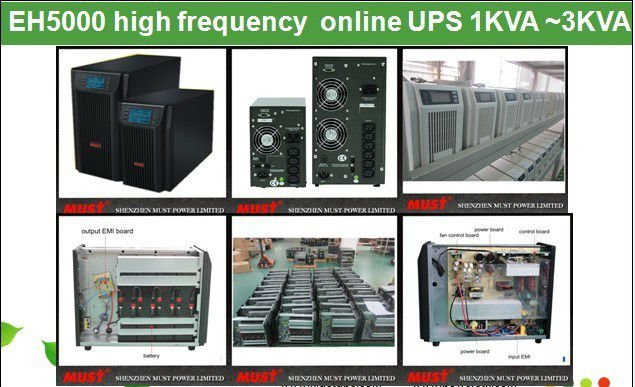

electrical view pictures:
| pure sine wave ups | 1 kva ups |
| 2 kva ups | 3 kva ups |
| rated power | 800 W |
| 1600 W | 2400 W |
| INPUT |
| Voltage Range (145-275vac) | Low Line Transfer | 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or |
| 80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 % |
| (based on load percentage 100%-80%/80%-70%/70%-60%/60%-0) |
| LowLine Comeback | 175 VAC ± 5 % or 85 VAC ± 5 % |
| High Line Transfer | 300 VAC ± 5 % or 150 VAC ± 5 % |
| High Line | 290 VAC ± 5 VAC or 143 VAC ± 3 VAC |
| Comeback |
| Frequency Range | 46-54Hz |
| Phase | Single phase with neutral ground |
| Power Factor | ≥0.99 with pfc rectifier |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ±1% |
| Frequency Range | 47 ~ 53 Hz or 57 Hz ~ 63 Hz |
| (Synchronized Range) |
| 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Frequency Range |
|
| (Bat. Mode) |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load) | <= 4 % THD (Linear Load) |
| <= 6 % THD(Non-linear Load) | <= 7 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero transfer time ups |
| Inverter to Bypass | 2 ms (Typical) |
| Waveform(Bat. Mode) | Pure Sine Wave ups sine wave ups, online sinusodal ups |
| EFFICIENCY |
| To AC Mode | 85% | 90% |
| To Battery Mode | 83% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH | 12 V / 7 AH | 12 V / 7 AH |
| Numbers | 2 or 3 | 3 | 6 or 8 | 8 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | user settable 1amp, 2amp,4amp,6amp |
| Charging Voltage | 13.8vdc each cell ± 1% |
| Long-run Model | Battery Type/Numbers | SLA 36vdc or 96vdc external fixed |
| Charging Current (max.) | 6.0 A |
| Charging Voltage | 13.8vdc each cell ± 1% |
| INDICATORS |
| LCD Panel | UPS status, Load percentage, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | beeper beeps once every 4 seconds |
| Low Battery | beeper beeps once every 1 second |
| Overload | beeper beeps twice every 1 second |
| Fault | Continuously beeping |
| PHYSICAL |
| Size DXWXH (mm) | 400x145x220 | 460x192x348 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 45dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/ optional USB | Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC |
| optional intelligent slot & SNMP | Network monitor and power management tool/protocol |
|
|
|
|
|
|
