| Prod Model: |
EP1100 0.72-1.44KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
500va-1500va |
| Input DC: |
12V/24V |
| Input AC: |
220/230VAC |
| Size: |
224*255*80mm |
| Transfer Time: |
10ms |
| Weight: |
2.5kg |
| Charge Current: |
10A/20A Adjutable |
| Wave: |
Modified Sine Wave |
| Frequency: |
High Frequency |
| Wide Input Voltage Range: |
90-280VAC |
Product Description

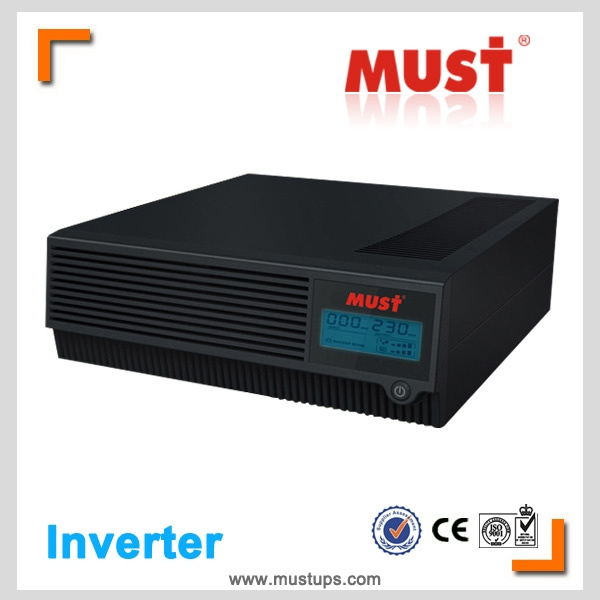

Must Rack Type Plastic Case 1200VA/720W Modified Power Inverter
Features:
1. Household use
2. User selectable for accepting wider input voltage.
3. Full automatic and silent operation.
4. Rack Tower design.
5. High Frequency.
6. Off mode charging.
7. Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8. Compact size for convenient use and storage.
9. Built-in 8Amp super charger for up to 100Ah battery.
10. Small scale and cost effective inverter for home appliances and office equipment.
11.3 steps IGBT mosfet charging control to recharging time
10A/20A Charging Current 1000VA 2000VA DC to AC Home Power Inverter
Descriptions
Modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.
The PG series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances. PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Must 2400VA/1440W Pakistan Home Inverter 24V DC Power Inverter
Home Power Inverter Features: Wide Input range 90-280VAC
1. Automatic line-to-battery switchover
2. Selectable input voltage ranges, power inverter has wide input range: 90-280Vac
Narrow input range: 170-280Vac
3. Small power inverter has high efficient DC-to-AC conversion, minimizing energy loss
4. Rack Tower design for flexible placement
5. Small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6. Intelligent 2-stage charger control for efficient charging and preventing overcharge
7. Overload protection
8. Auto restart while AC recovery
9. Multi-function LED indications and buzzer alarms
10. Small scale and cost effective inverter for home appliance and office equipment
11. LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning
12. Over 95% efficiency in AC to AC mode
13. Audible alarm for the low battery, overload, overcharge and fault
14. Full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)
EP1100 Sine Wave LED Display DC AC 220VAC power Inverter
Home Power Inverter Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.
Specifications
| MODEL | EP11-1200 | EP11-2400 |
| Default Battery System Voltage | 12VDC | 24VDC |
INVERTER
OUTPUT | Reted Power | 1200VA/720W | 2000VA/1440W |
| Waveform | Modifide Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 5OHz/60Hz±0.5 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 0.72 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
AC
INPUT | Voltage | 230VAC |
| Selectable Voltage Range | Narrow | 170~280VAC |
| Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC
| 21.0VDC
|
| Low Battery Alarm | 10.5VDC±0.3V
| 21.0VDC±0.3V
|
| Low Battery Cutoff | 10.0VDC±0.3V
| 20.0VDC±0.3V
|
| High Voltage Alarm | 16.0VDC±0.3V
| 32.0VDC±0.3V
|
| High Battery Voltage Recover | 15.0VDC±0.3V | 30.0VDC±0.3V
|
| CHARGER | Charger Voltage (Vbat<12.5V) | 14.4VDC±0.4V | 28.8VDC±0.4V |
| Charger Voltage (Vbat>12.5V) | 13.7VDC±0.2V | 27.4VDC±0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A
| 32VDC ±0.8A |
BYPASS
&
PROTECTION | Nominal Input Frequency | 50Hz or 60Hz
|
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE
|
| Bypass Breaker Rating | 10A |
| Max Bypass Current | 10Amp
|
MECHANICAL
SPECIFICATIONS | Dimensions (W*H*D) | 246*253*87mm |
| Net Weight (kg) | 2.3 | 2.5 |
| Shipping Dimensions(W*H*D) | 320*332*127mm
|
| Shipping Weight (kg) | 2.9 | 3.1 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year
|
