| Prod Model: |
EP2000 600-10000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
Discharge, Overcharge, Overload |
| Wave Form: |
Pure Sine Wave |
| Input AC Voltage Tolerance: |
Nominal AC Voltage 110VAC or 220VAC 25% Tolerance |
| AC Voltage Regulation: |
Auto-Transformer |
| Frequency: |
50Hz/60Hz |
| Communication Port: |
RS232 |
| Display: |
LCD/LED |
| Output Voltage: |
145-290VAC |
| Packaging Details: |
Cartons/PC |
| 1000W Carton Demension: |
478*463*315mm |
Product Description

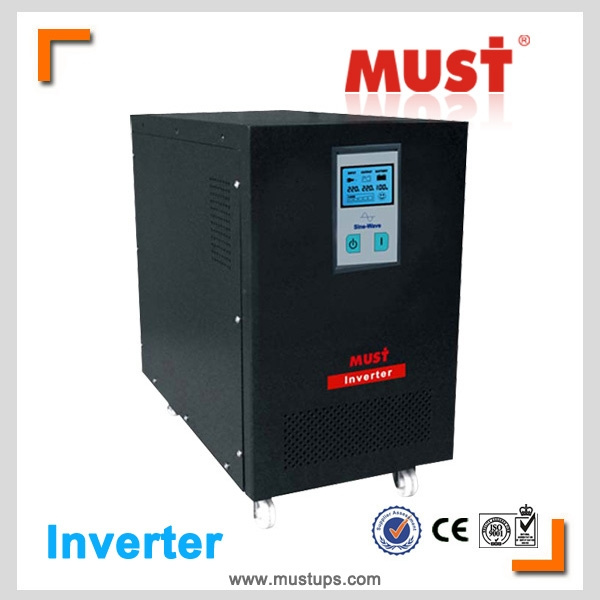

MUST SmarlMUST Smart Powr Inverter Home Application Tower 10000 Watt InverterMain features:
1. Pure sine wave power inverter DC to AC 300-10000W
2.
LCD/LED display3. Pure sine wave
4.
150% overload capacityDetails1. Pure sine-wave output, can be used with diffent domestic appiance TV, refrigerator, fan, air conditioner induvtion cooker, micro-wave oven etc
2. Superior performance from CPU control technology
3. Wide range of input voltage, accurate output, AVR function
4. Inner-equipped protection for over-load, short-circuit, over-voltage, low-voltage over-heating etc.
5. Easy to check with UPS condition with consice LED indication that can be upgraded
To LCD
6. Generator compatibly and external battery connection achievable
7. Intelligent battery management with protection against over-charged and over-discharged etc.
The Inverter is is devised to work in regions or countries of continuous AC power problems, and is also a truly revolutionary UPS. This series are a kind of industrial applications that the typical Inverter will not be satisfied and using a generator is not practical. The units output pure sine wave, surge suppression, AC voltage regulation. The external batteries can be quickly recharged by a powerful battery. Load levels, battery levels and status of operation of the unit can be visioned on the LED display. This design is the best choice for telecom, security and industrial PC applications.
Specifications| MODEL(EP20-Tower Type) | 600T | 1000T | 1500T | 2000T | 3000T | 4000T | 5000T | 6000T | 7000T | 10000T |
| Default Battery System Voltage | 12VDC | 12VDC/24VDC | 24VDC | 48VDC | 96VDC |
| INVERTER OUTPUT | Rated Power | 600W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 10000W |
| Waveform | Pure sine wave |
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | 220V/230V/240VAC(+/-10% RMS) |
| Output Frequency | 5OHz/60Hz +/-0.3 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 1.0 |
| Typical Transfer Time | Typical 2~6ms ,10ms max |
| AC INPUT | Nominal Voltage | 100V/110V/120VAC 220V/230V/240VAC | 220V/230V/240VAC |
| Voltage Range | 96~132VAC/145~275VAC(For Personal Computers) | 145~275VAC(For Personal Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing 44-68Hz) |
| BATTERY | Nominal Input Voltage | 12VDC | 12VDC/24VDC | 24VDC | 48VDC | 96VDC |
| Minimum Start Voltage | 10.5VDC /21.0VDC/42VDC/84VDC |
| Low Battery Alarm | 10.5±0.3V /21VDC±0.6V/42VDC±1.2V/84VDC±2.4V |
| Low Battery Cutoff | 10.0±0.3V/20VDC±0.6V/40VDC±1.2V/80VDC±2.4V |
| High Voltage Alarm | 15.5±0.3V/31VDC±0.6V/62VDC±1.2V/124VDC±2.4V |
| High Battery Voltage Recover | 15.0±0.3V/30VDC±0.6V/60VDC±1.2V/120VDC±2.4V |
| CHARGER | Charger Voltage | 14V±0.2V/28V±0.4V/56V±0.8V/112V±1.2V |
| Overcharge Protection S.D. | 15.5VDC/31VDC/62VDC/124VDC |
| Maximum Charge Current | 15A~25A |
BYPASS
& PROTECTION | Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection(SMPS Load) | IPS automatically shutdown if overload exceeds 120% of normal value for 30 seconds
IPS automatically resume work if overload comes back to rated load |
| Output Short Circuit Protection | FUSE | Circuit breaker |
| Bypass Fuse Rating | 10A | 15A | 30A | 50A |
| Max Bypass Current | 10A | 15A | 30A | 50A |
MECHANICAL
SPECIFICATIONS | Dimensions(W*H*D) | 140*182*380 | 190*350*450 | 260*750*570 |
| Net Weight(kg) | 11 | 12 | 24.2 | 27.4 | 29.5 | 33 | 35 | 41 | 47 | 53 |
| Shipping Dimensions(W*H*D) | 215*285*465 | 325*473*595 | 480*1030*720 |
| Shipping Weight(kg) | 12 | 13.2 | 26.9 | 30.1 | 33.2 | 35.7 | 49 | 55 | 61 | 67 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED or LCD Optional |
| Loading(20GP/40GP/40HQ) | 950pcs / 2100pcs / 2300pcs | 270pcs / 500pcs / 600pcs | 60pcs / 110pcs / 140pcs |
