| Prod Model: |
SZHPCB013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Sunthone Circuit |
| Copper Thickness: |
1oz Finished |
| Board Thickness: |
0.075mm |
| Min. Hole Size: |
0.10mm |
| Min. Line Width: |
0.2mm |
| Min. Line Spacing: |
0.2mm |
| Surface Finishing: |
Mmersion Gold, OSP, HASL |
| Min. Line Spacin: |
Min. Line |
| Certificate: |
UL, ISO9001, ISO14001, RoHS, SGS |
| OEM: |
Yes |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

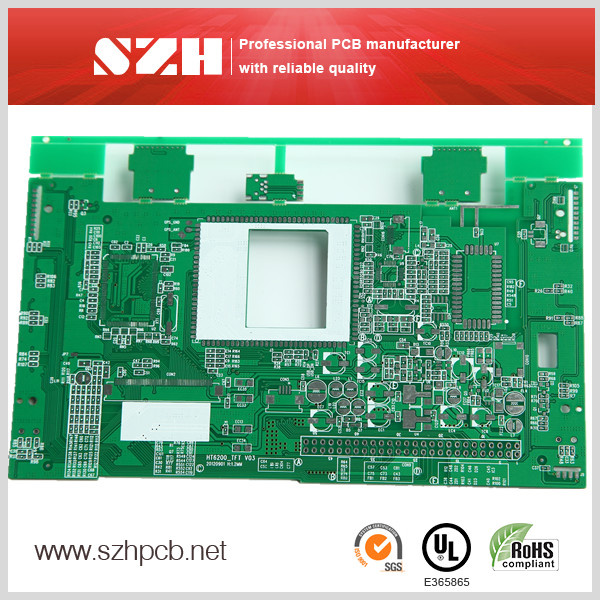

Mutilayer Immersion gold 1.6mm 1oz PCB Board
Product Description
printed circuit board :
1.Board thickness: 1.6mm
2.Material: FR4
3.Surface treatment: Immersion gold
4.Copper Thickness:1oz
Our PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality,competitive Price & Best Service
4.100% E-tested PCB
Products Show:
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
* AOI (Automated Optical Inspection)
Quotation Requirement :
--- Following specifications are needed for quotation:
a) Base material
b) Board thickness
c) Copper thickness
d) Surface treatment
e) color of solder mask and silkscreen
f) Quantity
Pcba assembly service/ pcb assemblies/ electrical circuit board:
| PCB capability and services: |
1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service. |
| 2. CEM-1, FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc. |
| 3. HAL, HAL lead free, Immersion Gold, OSP surface treatment. |
| 4. Quantities range from sample to mass order< |
| 5. 100% E-Test |
| SMT (Surface mounting technology), COB, DIP. |
| 1. Material Sourcing Service |
| 2. SMT assembly and Through hole components insertion |
| 3. IC pre-programming / Burning on-line |
| 4. Function testing as requested |
| 5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc) |
| 6.OEM/ODM also welcomed |
What we need:
* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging,
component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)
Our advantages :
1) High-end, Small volume and Various kinds of PCBA service offered;
2) Speedy, Flexible and one-stop service in PCBA;
3) Assembly and Purchasing service offered, all components are promised to be purchased 100%
from Original factories or their pointed agents;
4) Transparent quotation,cost and benefit are detailedly opened to customer;
5) With professional Engineers and Long-term successful experience in cooperating with
customers inland and overseas, all new projects can be developed faster and better than expected;
6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production,
all PCBAs we made are more reliable.
Welcome to Sunthone Technology Circuit Co,.Ltd
1. Who we are
| PCB Manufacturer | Flexibility | Quality |
| Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. | Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2. SupportSunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |

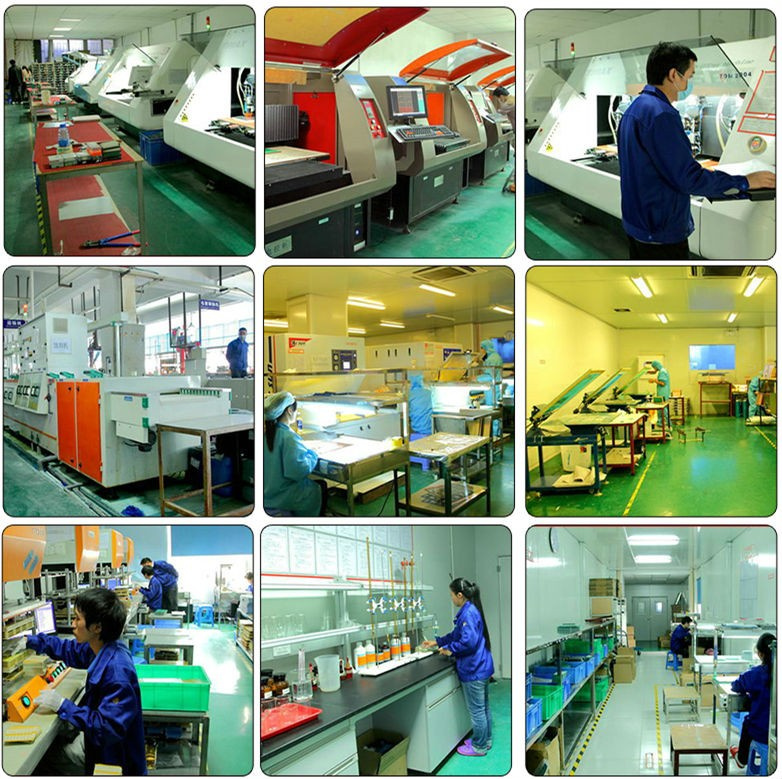

Equipment

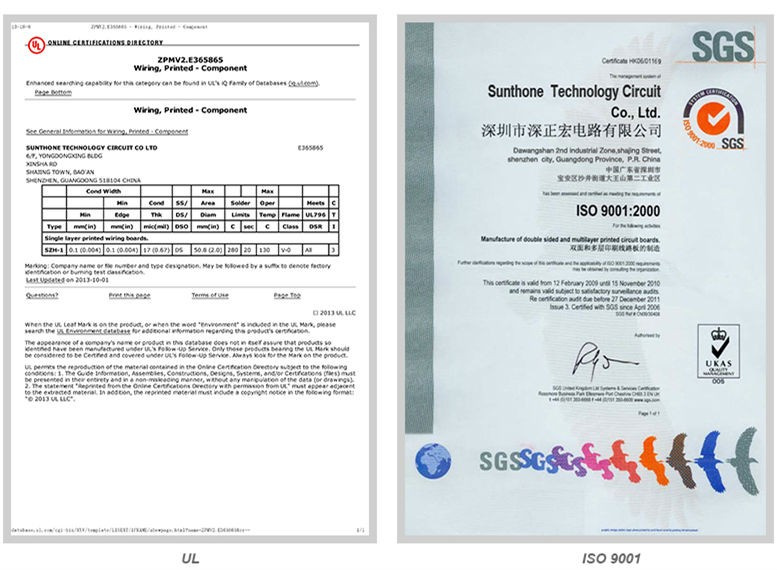

Certification
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
