5. Serve everyone with heart and soul.MV 11kv Copper Cable, XLPE Power Cable 1. Description

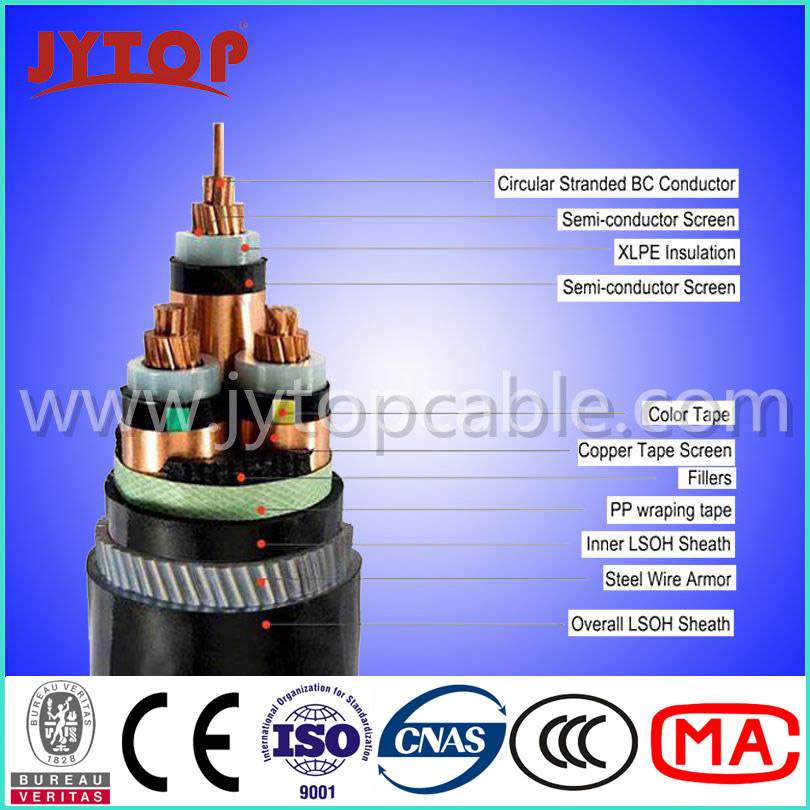

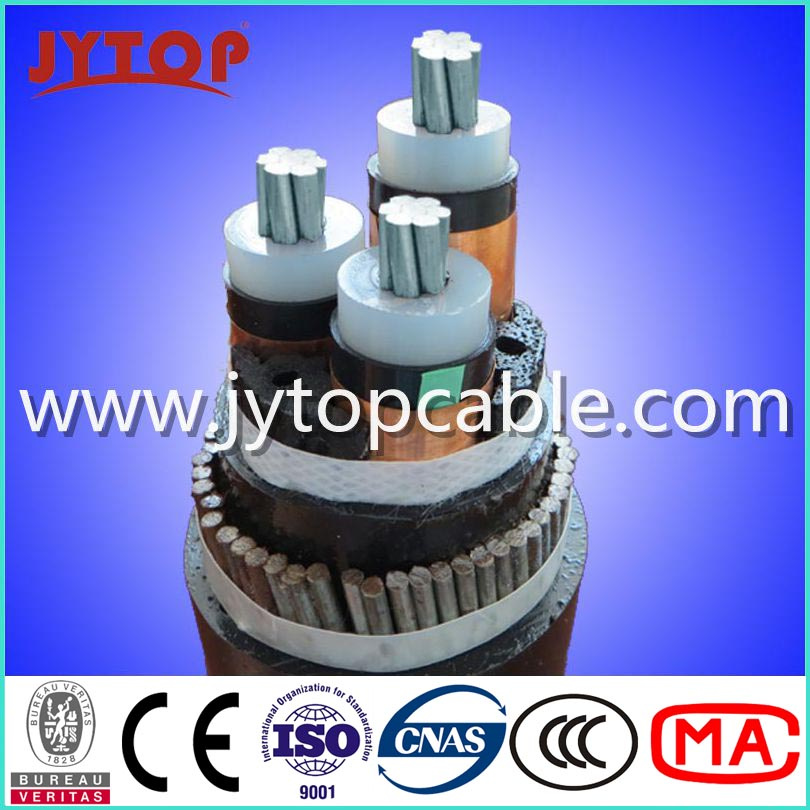

Construction: Compacted stranded circular copper conductor, extruded semi-conducting compound as conductor shield, cross-linked polyethylene (XLPE) insulation, semi-conducting compound as insulation shield, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC inner covering as armoring bedding, galvanized steel wire armored, PVC or PE outer sheath.
2. Operating Characteristics
Rated voltage U0/U(Um): 6/10kV
U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
U is the rated power frequency voltage between conductors for which the cable is designed;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Max. Permissible continuous operating temperature of conductor: 90 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed: 250 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For three core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
3. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel, in cable trench, or direct in ground, able to bear external mechanical force and certain pulling force.
4. Manufacturing Standards
IEC 60502-2 and Chinese National Standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
NOTE:
If you want to know more details about 11kv cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.

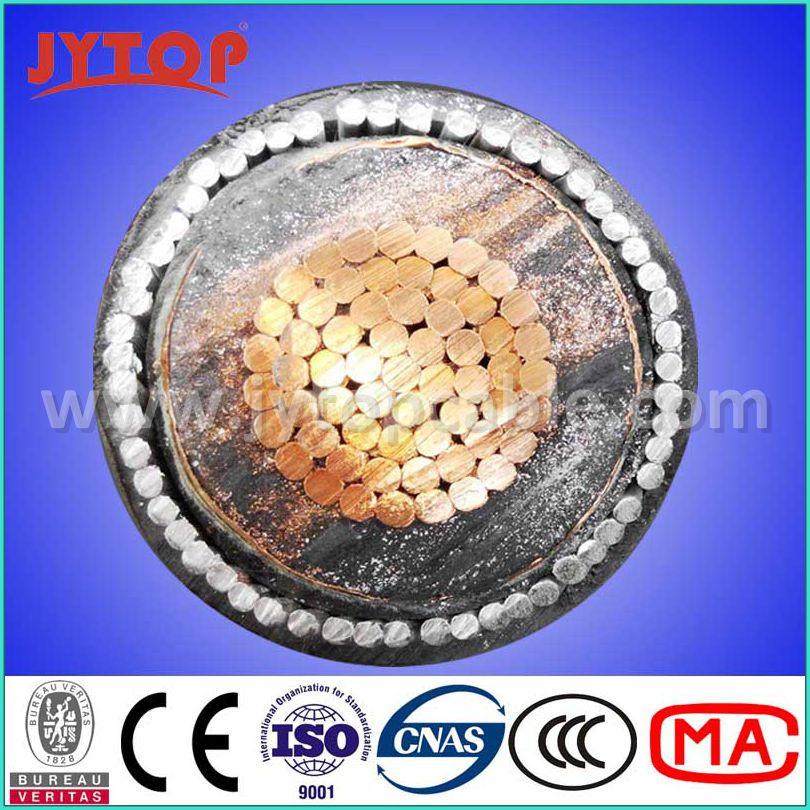

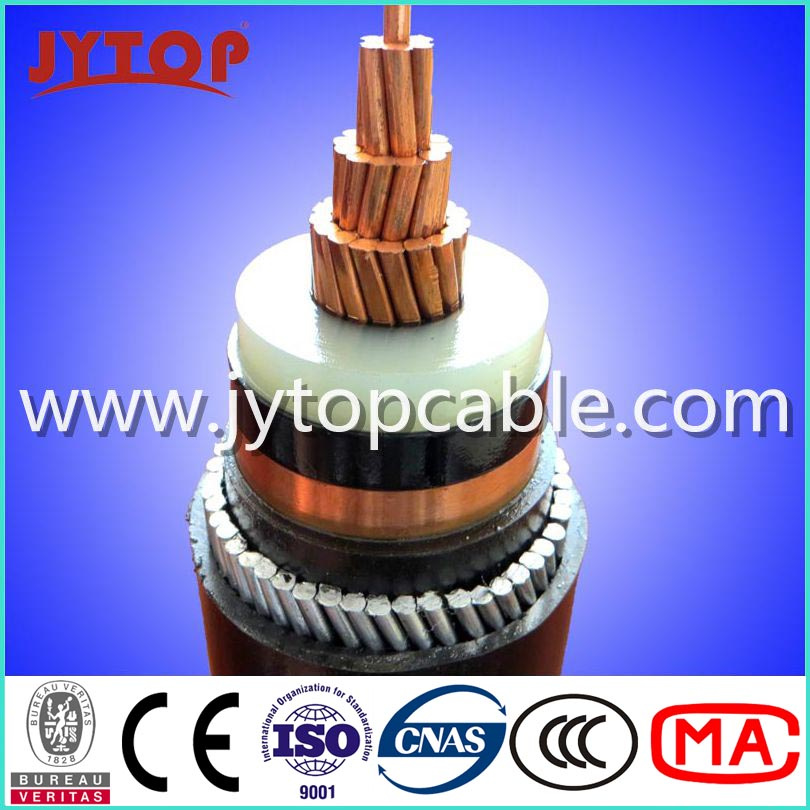

Technical data for 11kv Copper cable, 11kv xlpe cable. Main technical data of 6.35/11KV, Single core, Copper conductor, XLPE insulated, and PVC or PE sheath cable CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/PVC or PE
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal
thickness of
PVC or
PE(mm) | Approx. overall
diameter of finished
cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 1.8 | 20.3 | 0.727 |
| 1x35mm2 | 3.4 | 0.12 | 1.8 | 21.3 | 0.524 |
| 1x50mm2 | 3.4 | 0.12 | 1.8 | 22.4 | 0.387 |
| 1x70mm2 | 3.4 | 0.12 | 1.8 | 24.1 | 0.268 |
| 1x95mm2 | 3.4 | 0.12 | 1.8 | 25.7 | 0.193 |
| 1x120mm2 | 3.4 | 0.12 | 1.8 | 27.1 | 0.153 |
| 1x150mm2 | 3.4 | 0.12 | 1.8 | 28.7 | 0.124 |
| 1x185mm2 | 3.4 | 0.12 | 1.9 | 30.5 | 0.0991 |
| 1x240mm2 | 3.4 | 0.12 | 2.0 | 33.1 | 0.0754 |
| 1x300mm2 | 3.4 | 0.12 | 2.0 | 35.1 | 0.0601 |
| 1x400mm2 | 3.4 | 0.12 | 2.1 | 38.5 | 0.0470 |
| 1x500mm2 | 3.4 | 0.12 | 2.2 | 42.2 | 0.0366 |
| 1x630mm2 | 3.4 | 0.12 | 2.3 | 46.3 | 0.0283 |
| 1x800mm2 | 3.4 | 0.12 | 2.5 | 50.4 | 0.0221 |

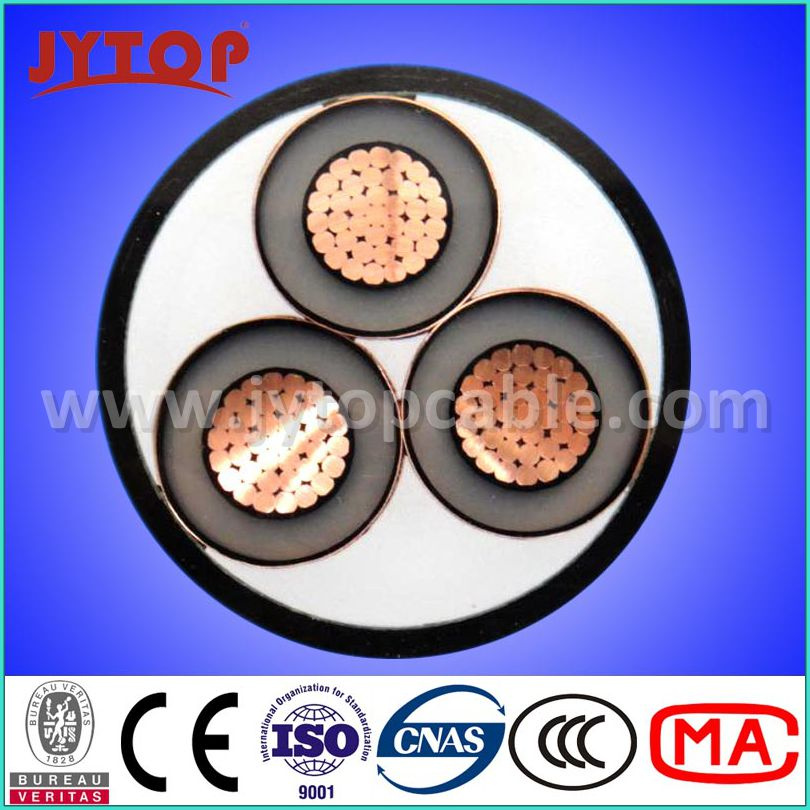

Main technical data of 6.35/11KV, three cores, Copper conductor, XLPE insulated, and PVC or PE sheath cable CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/PVC or PE
Size | Nominal thickness of
XLPE
insulation(mm) | Approx. thickness of
copper tape screen (mm) | Nominal thickness of
PVC or
PE(mm) | Approx. overall diameter of
finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 3x25mm2 | 3.4 | 0.10 | 2.2 | 40.9 | 0.727 |
| 3x35mm2 | 3.4 | 0.10 | 2.3 | 43.3 | 0.524 |
| 3x50mm2 | 3.4 | 010 | 2.4 | 45.9 | 0.387 |
| 3x70mm2 | 3.4 | 0.10 | 2.5 | 49.8 | 0.268 |
| 3x95mm2 | 3.4 | 0.10 | 2.6 | 53.6 | 0.193 |
| 3x120mm2 | 3.4 | 0.10 | 2.7 | 56.8 | 0.153 |
| 3x150mm2 | 3.4 | 0.10 | 2.8 | 60.6 | 0.124 |
| 3x185mm2 | 3.4 | 0.10 | 2.9 | 64.3 | 0.0991 |
| 3x240mm2 | 3.4 | 0.10 | 3.1 | 69.9 | 0.0754 |
| 3x300mm2 | 3.4 | 0.10 | 3.3 | 74.6 | 0.0601 |
| 3x400mm2 | 3.4 | 0.10 | 3.5 | 82.2 | 0.0470 |
