Mv Copper Conductor XLPE Insulated Power Cable for Single Core

Mv Copper Conductor XLPE Insulated Power Cable for Single Core
Price: US $ 2.6-66/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 500/Meter
Pay Type: L/C,T/T,D/P
Prod Model: YJV
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC Cable
Insulation Material: XLPE
Certification: CCC
Brand: Jytop

Product Description

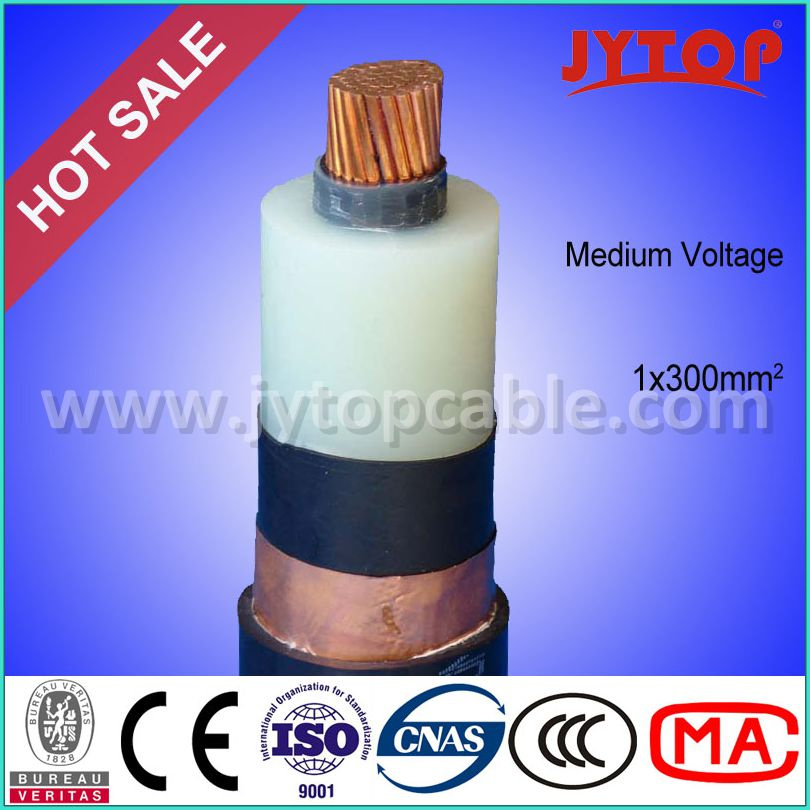

Middle voltage MV 15kv Single core copper conductor XLPE insulated power cable

8.7/15kV CU/XLPE/PVC(or PE) Power Cable

1. Description
Construction: Compacted stranded circular copper conductor, extruded semi-conducting compound as conductor shield, cross-linked polyethylene (XLPE) insulation, semi-conducting compound as insulation shield, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.

Chine
2. Operating Characteristics
Rated voltage U0/U(Um): 8.7/15(17.5)kV
U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
U is the rated power frequency voltage between conductors for which the cable is designed;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Max. Permissible continuous operating temperature of conductor: 90 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed: 250 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 20 times of the diameter of cable
For three core cable: Not less than 15 times of the diameter of cable

3. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.
Single core cable in magnetic duct is not permissible.

4. Manufacturing Standards
IEC 60502-2 and Chinese National Standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.

NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.


Main technical data of 8.7/15KV, Single core, Copper conductor, XLPE insulated, and PVC or PE sheath cable
CABLE CONSTRUCTION: 8.7/15KV CU/XLPE/PVC or PE

Size
Nominal thickness of XLPE insulation(mm)Approx. thickness of copper tape screen (mm)Nominal thickness of PVC or PE(mm)Approx. overall diameter of finished cable(mm)Max. conductor D.C resistance @ 20 0 C (Ω/km)
1x25mm 24.50.121.622.20.727
1x35mm 24.50.121.823.60.524
1x50mm 24.50.121.824.70.387
1x70mm 24.50.121.826.40.268
1x95mm 24.50.121.828.00.193
1x120mm 24.50.121.929.60.153
1x150mm 24.50.121.931.20.124
1x185mm 24.50.122.033.00.0991
1x240mm 24.50.122.035.40.0754
1x300mm 24.50.122.137.60.0601
1x400mm 24.50.122.241.00.0470
1x500mm 24.50.122.344.90.0366
1x630mm 24.50.122.448.70.0283
1x800mm 24.50.122.552.70.0221
