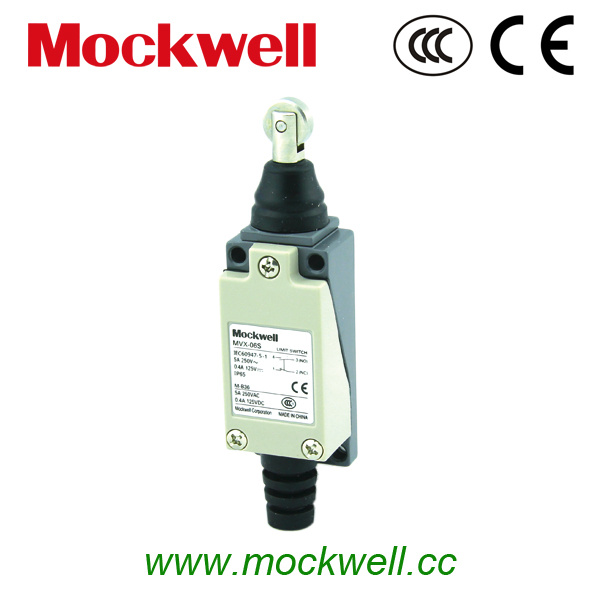

Mvx-06s Small Vertical Type Limit Switch

Prod Model:	MVX-06S
Warranty:	One Year
Pressing Type:	Spring Roller
Protection:	Dust-Proof
Size:	Ultra Small Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Industrial
Brand:	Mockwell

Product Description

Small Vertical Limit Switches
Strong structure, made of zinc alloy and reinforced plastics.
Structure enables the terminal section to be fully opened for easy wiring.
Small size, water and oil resistance.
Degree of protection: IP65.

Ordering information:

Model	Actuators	can be replacement of
MVX-01S	Roller lever	D4V-8104Z
MVX-02S	Adjustable roller lever	D4V-8108Z
MVX-03S	Crossroller plunger	D4V-8122Z
MVX-04S	Rod lever	D4V-8107Z
MVX-05S	Push Plunger	D4V-8111Z
MVX-06S	Roller Plunger	D4V-8112Z
MVX-07S	Wire spring	D4V-8169Z
MVX-09S	Coil spring	D4V-8166Z

Technical parameter:

Ambient operating temperature	-20-60ºC
Ambient operating humidity	35-85%RH
Virbration resistance	10-55Hz,
Operating frequency	120times/minute max
Rated voltage	250V
Mechanical life	10,000,000times
Electrical Life	300,000times min
