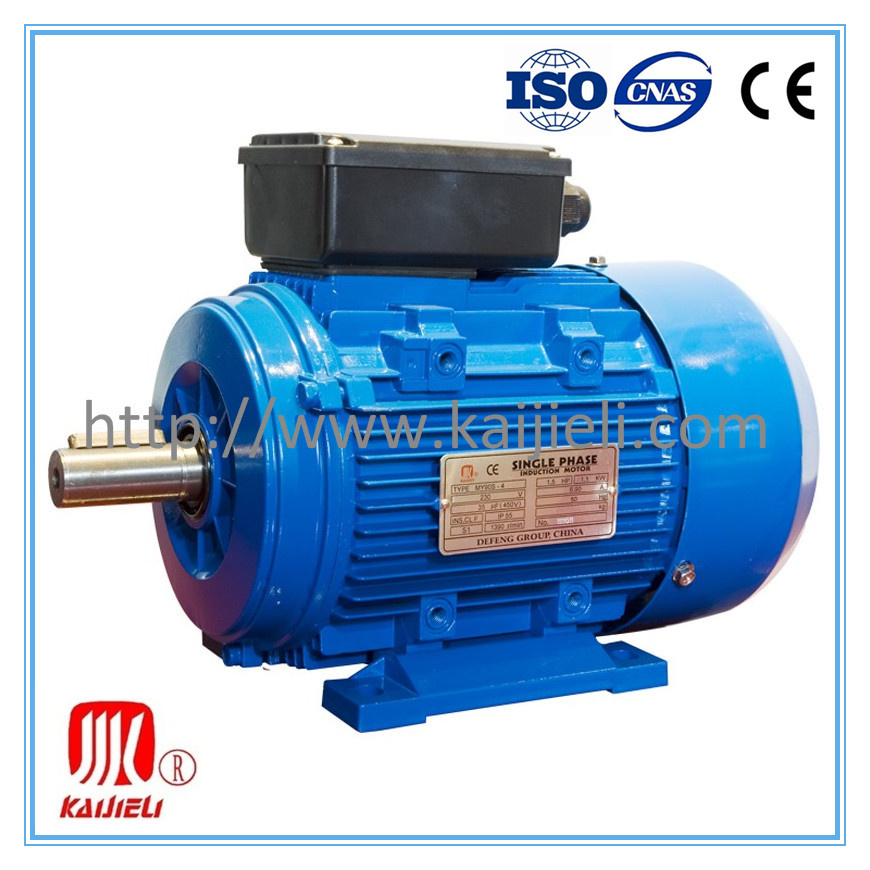

My Series Single-Phase Capacitor-Run Electric Motor with Aluminum Housing

My Series Single-Phase Capacitor-Run Electric Motor with Aluminum Housing
Price: US $ 25.00/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T
Prod Model: MY Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size: 56-112m
Operating Speed: Constant Speed
Casing Protection: Protection Type
Rotor Structure: Squirrel-Cage
Species: My Series
Number Of Stator: 2/4
Application: Household-Appliance, Water Pump, Fan, etc.

Product Description

MY series aluminum housing single-phase capacitor-run asynchronous motors are adopted the newest international design with the high quality of materials, which can meet the relative standards of IEC.

MY series aluminum motors Good performance, safe and reliable operation, nice appearance, convenient maintenance, low noise, slight vibration, light weight.

This series of motors can be used on household appliance, pumps, fans and recording meters, etc.
TECHNICAL DATA
Housing material:   Aluminum
Output range: 0.09KW~1.5KW
Pole: 2/4
Terminal Box: Top Mounted
Protection Class: IP55
Insulation Class: F/H
Bearing: SKF/NSK/NTN

Operating Conditions
Ambient temperature: -15º C~40º C
Altitude: not exceed 1000m
Rated voltage: 110V, 115V, 120V, 220V, 230V, 240V
Rated frequency: 50HZ 60HZ(at buyer' s option)
Cooling method: IC 411
Duty: S1
Kaigong Electric (Suzhou) Co., Ltd. professionally manufactures electric motors, alternators, generating sets and pumps, including Y/Y2/CDF/SDF series of normal motors and IE2, EFF2, EFF1 series of high efficiency motors, and the capacity is up to 350, 000 units (1, 500, 000kW) one year. For generators we manufacture TWG/TWGII series brushless generators, ST/STC alternators etc. It is a Sino-British joint venture enterprise, locating in Suzhou of China, with experiences of electrical machine manufacture for over 50 years. The Chinese shareholder is a subsidiary company of Kaijieli Group and the leading enterprise among the Group's producers in manufacturing sector.

We are top ten of the machinery industry, our workshops are distributed in Suzhou, Kunming and Fuan, which cover the areas of over 100, 000 square meters. We possesses the advanced producing and testing equipments, such as CNC vertical lathes, CNC boring machines, electrical warming equipments at medium frequency, VPI equipments, automatic spray-painting line and testing system, as well as the CAD system for design.

Our Kaijieli Brand motors received 9 national patents and certificates of "CCC", "CE", "TUV" and "GS" successively.

Our company always keeps the principle of "high quality and low cost". Its products are exported to more than 80 countries and regions including Europe, American, Asia, Australia and Africa and the turnover exceeds 80 million US Dollar. Our "Kaijieli" brand has been registered in 120 countries and regions till now. Thanks to the excellent quality, Kaijieli products are gradually recognized and used as the top-priority products at home and abroad.

We warmly welcome you to join us as the allies and partners, as Kaijieli not only belongs to us, but also to you; Not only to China, but also to the whole world.
