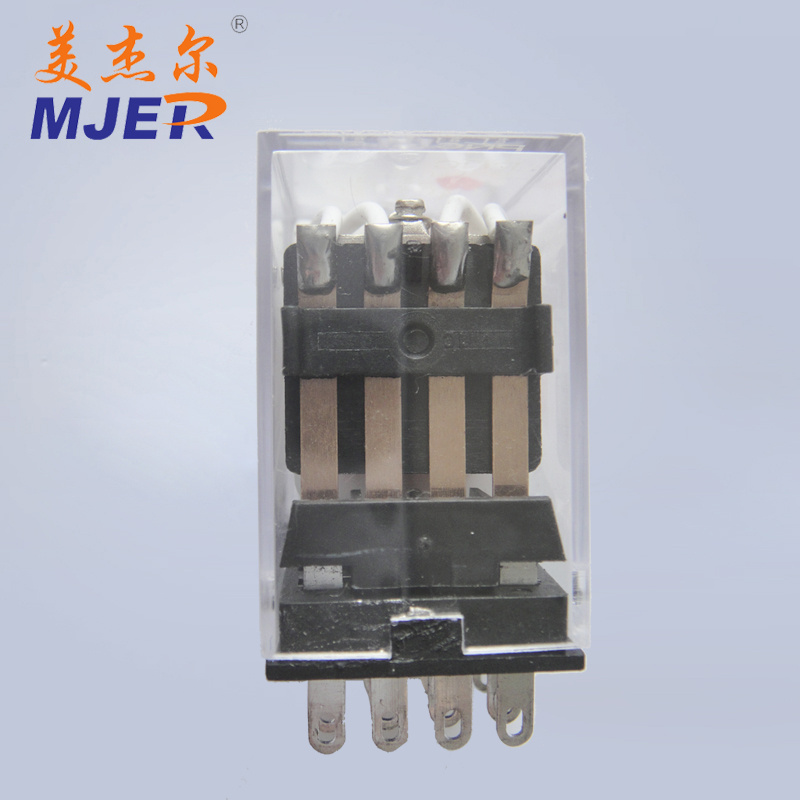

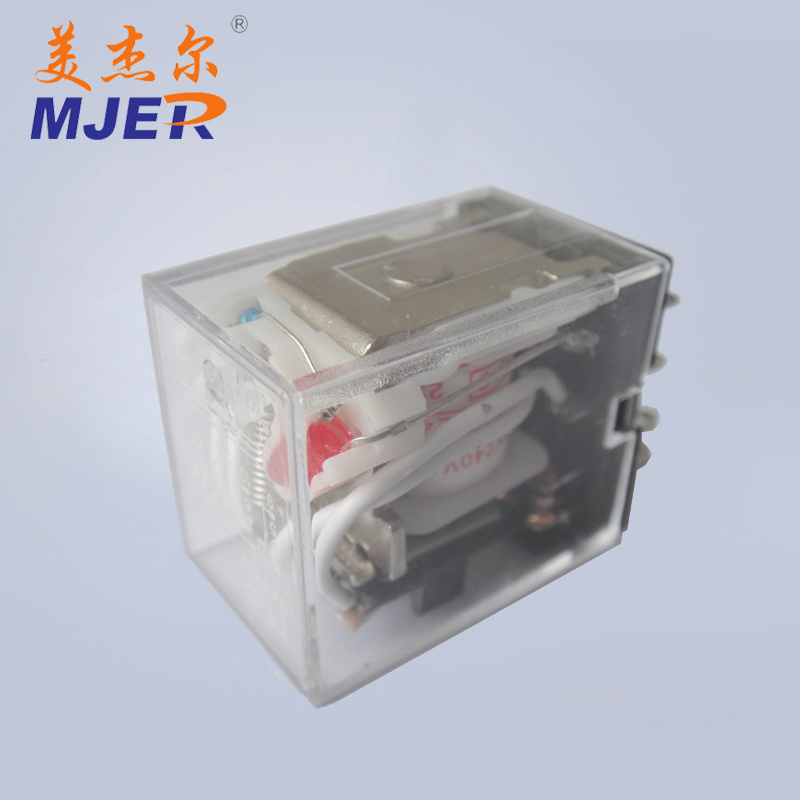

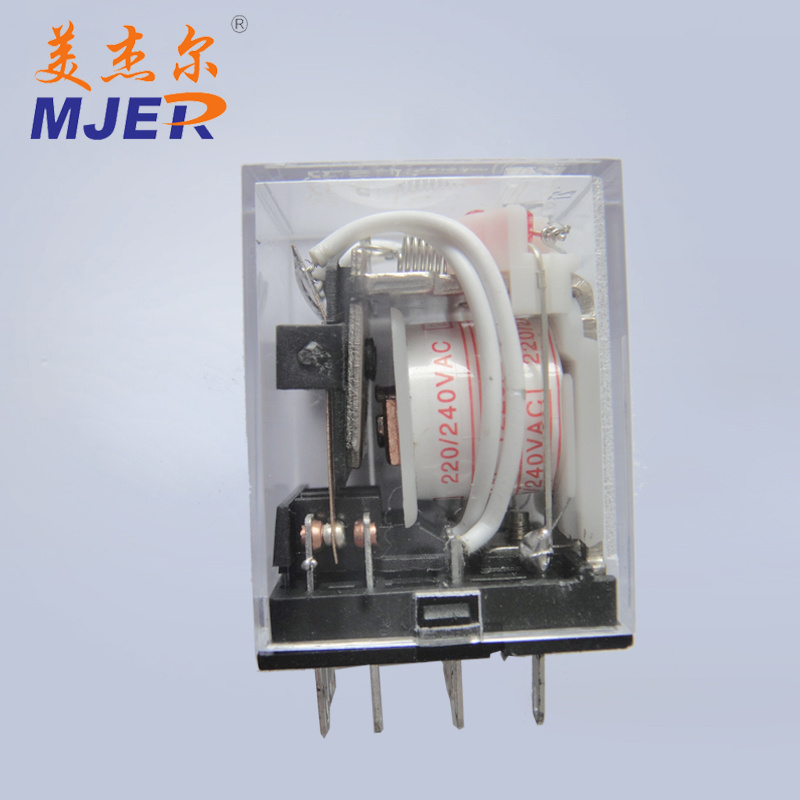

My4n General Purpose Electronic Relay/Power Relay/Relay with LED Indicator
| Price: |
US $ 3.5-5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
My4n |
| OEM: |
Yes |
| Supply Voltage: |
12/24VDC,24/110/220/380V |
| MOQ: |
5PCS |
| Lead Time: |
15days |
| Guarantee: |
Over 2 Years |
Product Description
Product Description:
General Purpose Electronic Relay/Power Relay/ Relay
MY SERIES RELAY
| Contact Ratings | MY2N MY3N | MY4N |
| Contact Ratings |
2Z,3Z |
4Z |
Contact Resistance |
50mΩ (1A 6VDC) |
Contact capacity |
5A/220VAC |
3A/220VAC 30VDC |
| Insulation Resistance |
500MΩ, 500VDC |
Dielectric Strength |
BCC 1500VAC 1minute |
BOC 1000VAC 1minute |
COC 1500VAC 1minute |
Operate Time |
20ms /25ms |
Terminal Type |
PCB & Socket |
| Nominal Coil Power |
0.9W / 1.2VA |
Nominal Voltage VDC |
Pull-in Voltage
VDC |
Release Voltage
VDC |
Coil ResistanceΩ:±10% |
5 |
4.0 |
0.50 |
30 |
6 |
4.8 |
0.60 |
40 |
12 |
9.6 |
1.20 |
160 |
24 |
19.2 |
2.40 |
640 |
48 |
38.4 |
4.80 |
2500 |
110 |
88.0 |
11.0 |
12100 |
|
|
Nominal Voltage VDC |
Pull-in Voltage
VDC |
Release Voltage
VDC |
Coil ResistanceΩ:±10% |
6 |
4.80 |
1.80 |
12 |
12 |
9.60 |
3.60 |
42 |
24 |
19.2 |
7.20 |
168 |
48 |
38.4 |
14.4 |
675 |
110 |
96.0 |
36.0 |
3500 |
220/240 |
176.0 |
66.0 |
14000 |
|
How to Order?1. Please let us know what kind of model.2. Proforma invoice (PI) will be sent to you.3. Please check and confirm the PI.4. Once we confirmed the order, please pay the discussed deposit soon.5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.6. OEM/ODM is welcomed.Terms of Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).2. We Provide Drop shipping Service.3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Terms of Payment:1. For bulk order, TT or L/C at sight.2. 30% deposit and 70% against shipping documents.3. Sample order we accept payment such as paypal, western union, visa card.Our CommitmentBETTER PRICE than other sellers for you because of Factory Direct Sale
BETTER QUALITY than before caused by our 10+ years experience about CT
STOCK IN TRADE always own to our Fast & Professional production line
FAST DELIVERY always made by our GROUP's Enthusiam
TIMING REPLY in 24 hours all about our TEAM's Passion & Patience
Please feel free to email us if any questions.
It's Our Pleasure to Serve You.
YOUR BENEFITS IS OUR BUSINESS! FAQ 1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yueqing city , zhejiang Province , P.R. China . It takes about 4 hours from SHANGHAI by train and 45 minute by air . It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements. How to contact me:TEL: 0086 577 62628176
FAX:0086 57762628176
Address:Xinguang Road No.75.Yueqing city,Wenzhou ,Zhejiang,325603,China
Company:HUANGSHAN MJER IMP.AND EXP.CO.,LTD
Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.
The products from our company are strictly under the national standard. We can mainly manufacture: Schottky / fast recover y diode, fast thyristor module, rectifier module, common thyristor module, thyristor, rectifier tube mixing module, non insulated thyristor, ordinar y rectifier module, non insulated thyristor module, non insulated rectifier module, single / three phase rectifier module, bridge rectifier, solid state relay, ZP rectifier tube, KP thyristor, KS bidirectional thyristor, ZX rotating rectifier tube, KX rotating thyristor, SS water cooling radiator, SF air cooling radiator, shunt, core, silicon rectifier, power semiconductor module, the power regulator, motor soft star ter (cabinet), power rectifier assembly series and so on.
All the employees from MJR follow to 'vir tuous talents, integrity work, scientific and technological innovation', 'people-oriented', and 'customer focused' as our philosophy to innovate and develop. We offer first class quality, reasonable price and best ser vice after sale to satisfy the customers for bilingual profits. Our ability is limited, but our creation is unlimited. We will keep working on innovation and constantly surpassing to optimize our own enterprise images. We are willing to establish our relationships with both new and old customers all over the world.
