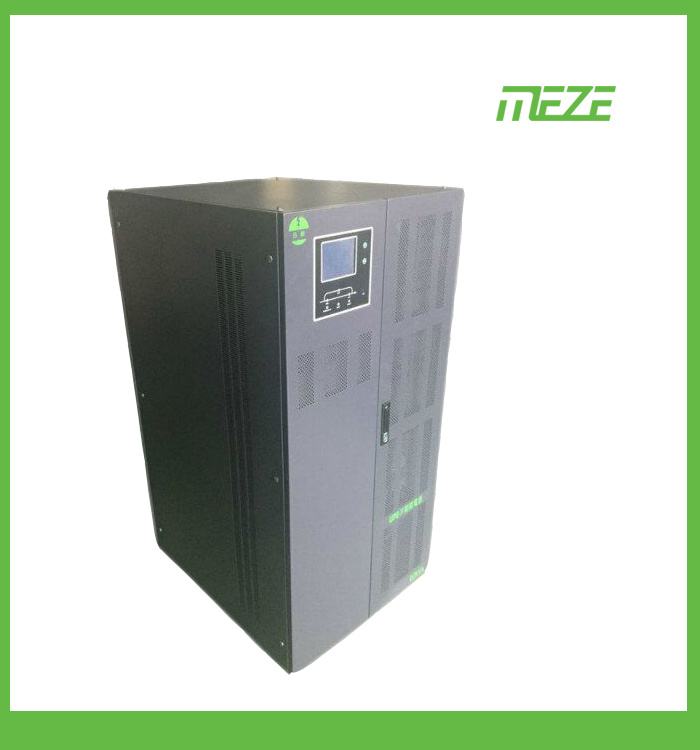

Mzt-100kVA UPS System 3 Phase Power Battery Online UPS

Prod Model:	MZT9830L
Input Voltage:	380V/220V
Output Voltage:	220V
Color:	White
Power Factor:	0.8
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage, Short Circuit, Overcurrent
Application:	School, Hospital, Factory, Bank
Classification:	Uninterruptible Power Supply

Product Description

mzt-100kVA UPS System 3 Phase power battery Online UPS

MZT9830L the main technical parameters

modelMZT9830L

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

100KVA

120KVA

150KVA

200KVA

300KVA

400KVA

Nominalcapacity(KVA)

10

15

20

30

40

60

80

100

120

150

200

300

400

Singe-phase maximum current input(A)

19

29

38

57

76

114

152

189

227

303

379

568

609

Works as well as the principle

On-line power supply,static bypass switch(uninterrupted switch)double conversion technology

Ac input parameters

Number of phase

Three-phase+N+G

Nominal voltage

380VAC±25%

Nominal frequency

50Hz±10%,60Hz±10%

The voltage harmonic distortion

<10%

Soft sart

0-100%5sec

The bypass

Number of phase

Three-phase+N+G

Nominal voltage

380VAC±15%

Nominal frequency

50Hz/60Hz±10%

Inverter/bypass(conversin)

0ms

The battery

Number of battery unit

30knots/12v series

Nominal battery voltage

360V

maximum discharge current(A)

25

38

51

76

101

152

203

253

305

405

550

760

1015

Float chargin voltage

405V(3 months automatic battery to charge,charge voltarge voltage 435V)

Charging curret

1A-5A(according to battery capacity setting)

inverter

The load power factor

0.8(0.9optinal)

Number of phase

Three-phase+N+G

Nominal voltage

380VAC±1%(The steady-state load),380VAC±3%(The load fluctuation

Nominal frequency

50Hz±0.05%,60Hz±0.05%(Battery power)

Frequency stability:when not in sync

<±0.05%

When the frequency stability:synchronization

<±5%

Output waveform

Sine wave

Total harmonic distortion

Lindar load<2%:The nonlinear load<4%

Dynamic load voltage transients

<5%(from 0 to 100% more

Transient recovery time

<10ms(±5%)

Unbalanced voltage

<±1%(Balance the load voltage),<±3%(Unbalanced load)

Overload capacity

Overload for ten min later turn the bypass,125% 150%overload lasts1 min after bypass

The inverter efficiency and load by 100%

95%

The system structure

Total efficiency of 100% load

91%,95%.ECO

Computer ommunication interface

Rs232,(Rs485.Network remote monitoring software)

Operating temperature

0-40ºC

Relating humidity

0-90% Without any condensation

Running high

<1500m(each additional,100meters power fell by 1%, the highest4000meters

Cooling way

Forced vention(temperature control)

Noise(db)

<65

The body color

black

The input cable

The bottom/bcak

Easy to maintain

On/about/in front of the plane can be opened

Lnput device

Terminal row

The output device

Terminal row

Size (D×W×H)

725×450×1135

855×450×1235

715×855×1500

1100×900×1700

1200×1500×1800

1300×1800×1800

The host weight(kg)

200

250

340

400

480

650

900

1200

1300

1480

2000

2100

2500

Option to

Rs485,weaver board,network management system,battery testing sydstem,lightning protection devices for option

is required to order

Three-input single-output Product features:
Load protection ability
Machine within the standard output isolation transformer, strong anti-interference ability,
for the user to provide more comprehensive and perfect protection equipment.Very small zero
voltage difference, meet the demand of precision instruments and equipment of the power supply,
to protect the safe operation of the equipment.Load good compatibility, can adapt to a variety of
different load and meet the needs of various applications.
Strong adaptability to the environment
Wide range of input voltage of 304v ~ 456v, avoid frequent switch to the battery power supply,
suitable for electric power conditions,UPS input frequency range is very wide,To ensure access
to a variety of fuel generator can be stable work.
High Battery optimize performance
Adopting intelligent battery management technology, so as to prolong the service life of
batteries, reduce the battery maintenance times.Advanced constant-voltage charging technology,
maximum activate cells, save the charging time, extend the service life of the battery.Charging
current can be independent m anagement according to the concrete situation,
Network management
LCD display panel, accurately show the UPS working environment and working condition
information, convenient for the user to the operation of the UPS. Through RS232 interface with
UPS intelligent monitoring software can communicate with computer, The various parameters of
UPS clearly displayed in the communication interface. External SNMP adapter, UPS has remote
network management function, provides the data and current supply to UPS for the real-time
information, communication and management through a variety of network operating system.
Energy saving and environmental protection design
Can be disassembled type modular design, easy to maintain and highly save resources;
Adopting intelligent fan speed regulation is designed, according to the load of UPS power
components, environment temperature and actual temperature, intelligent on/off and speed of
the fan control, cooling performance, high energy saving at the same time, extend the service life
of fan; Adopting circulation control circuit design,good power saving performance ;Adopt green
rectifier and inverter technology, to provide users with clean energy.
