| Prod Model: |
N (A) 2xs (E) |
| Product Name: |

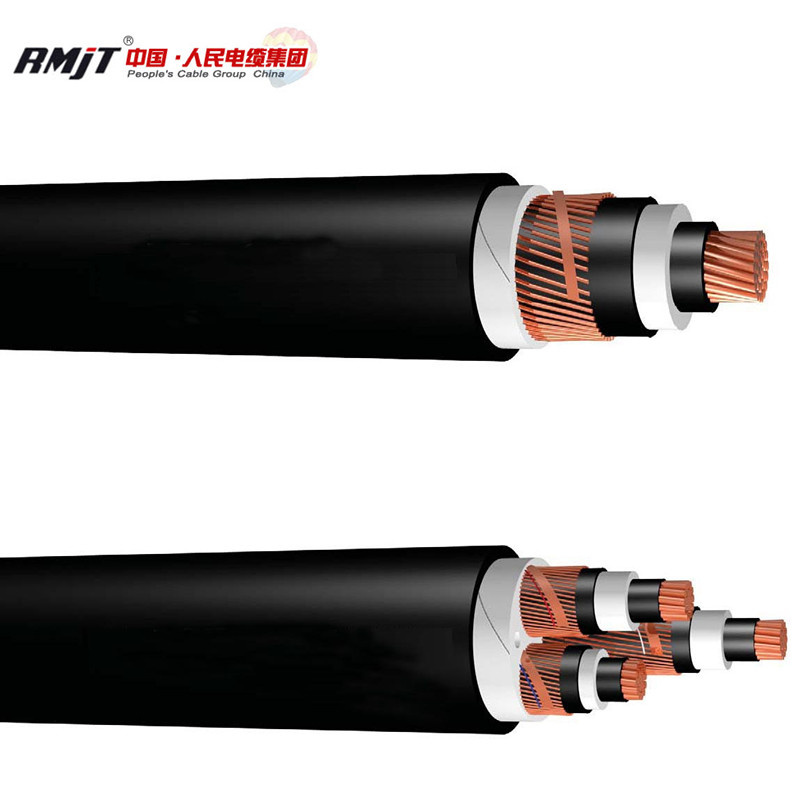

N(a)2xs(E)Y XLPE Power Cable |
| Voltage: |
0.6/1kv 8.7/15kv 20kv 35kv and So on |
| Jacket Color: |
Black, Red, Yellow/Green Grey or According to You |
| Standard: |
IEC, VDE or According to You. |
| Armored: |
Steel Wire or Steel Tape or Aluminium Wire |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Conductor Material: |
Copper or Aluminium or Aluminium Alloy |
| Brand: |
Rmjt |
Product Description
N(A)2XS(E)Y XLPE POWER CABLE1.Application:1,Long term working temperature for the cable with PVC insulated is 70ºC;
Long term working temperature for the cable with XLPE insulated is 90ºC
2,Short circuit temperature
For PVC insulated cable ,the highest conductor temperature is not more than160ºC.(lasting time not over 5 seconds).
For XLPE insulated cable ,the highest conductor temperature is not more than250ºC.(Lasting time is not over 5 seconds).
3,Laying temperature not less than 0ºC and the drop height is out of consideration.
4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.
5,Easy for installation, easy bending and light
6,Bending ratio:
Item | Single core | Three cores |
Non armor | With armor | Non armor | With armor |
Min bending radius during installation | 20D | 15D | 15D | 12D |
Near joint box or cable terminal, bending with care and use templet | 15D | 12D | 12D | 10D |
Note:D is the diameter of cable |
Rated Voltage :0..6/6kV,3.6/6kV.
Conductor of cables can be Copper and Aluminum. The cables can be single core, two cores, three cores, four cores(including three main cores and neutral).five cores (including three main cores and neutral and one earthing core, Four main cores and one neutral).The cables can be with armor and without armor.
Rated voltage 6kV (Um=7.2) and 35kV (Um=40.5)
XLPE insulated cable has good electrical and physical properties, resistant to aging, resistant to the environment stress and chemical corrosion operation, with the characteristics of simple structure, easy to use, no drop-height restriction when laying, higher long-term working temperature (90ºC).
2.Standard:This product is manufactured according to GB/T12706 (eqvIEC60502), GB/T18380-2001(eqv. IEC60332),GB/T19216 (IEC60311) and /or the BS, DIN and/or other types of international standards.And we also design and produce cables according to the requirement of our clients.
3.Specification:Item | Category A ,B | 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV | 18/30kV | 21/35kV |
Category A ,B | 6/6kV | 8.7/10kV | 12/15kV | 18/20kV | - | 26/35kV |
Single core | mm2 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |
Three core | mm2 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
| Number of cores and cross-section | Shape of conductor | Conductor diameter | Nominal insulation thickness | Diameter over insulation | Nominal thickness sheath | Outer diameter (approx.) | Bending radius (min.) | Weight (approx.) |
| | | (approx.) | | (approx.) | | | | |
| mm2 | | mm | mm | mm | mm | mm | mm | kg/km |
| 1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | 24 | 360 | 582 |
| 1x50/16 | RM | 8.3 | 3.4 | 16.4 | 2.5 | 25 | 375 | 644 |
| 1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 26 | 390 | 727 |
| 1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 28 | 420 | 830 |
| 1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 450 | 929 |
| 1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 31 | 465 | 1114 |
| 1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 32 | 480 | 1250 |
| 1x240/25 | RM | 18.1 | 3.4 | 26.2 | 2.5 | 35 | 525 | 1457 |
| 1x300/25 | RM | 20.2 | 3.4 | 28.3 | 2.5 | 37 | 555 | 1680 |
| 1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 40 | 600 | 2114 |
| 1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 43 | 645 | 2483 |
| 1x630/35 | RM | 29.9 | 3.4 | 38 | 2.5 | 47 | 705 | 2930 |
| 1x800/35 | RM | 34.2 | 3.4 | 42.3 | 2.6 | 51 | 765 | 3528 |
| 1x1000/35 | RM | 38.1 | 3.4 | 46.2 | 2.7 | 57 | 855 | 4422 |
| 1x1200/35 | RM | 41.2 | 3.4 | 49.3 | 2.8 | 59 | 885 | 4824 |

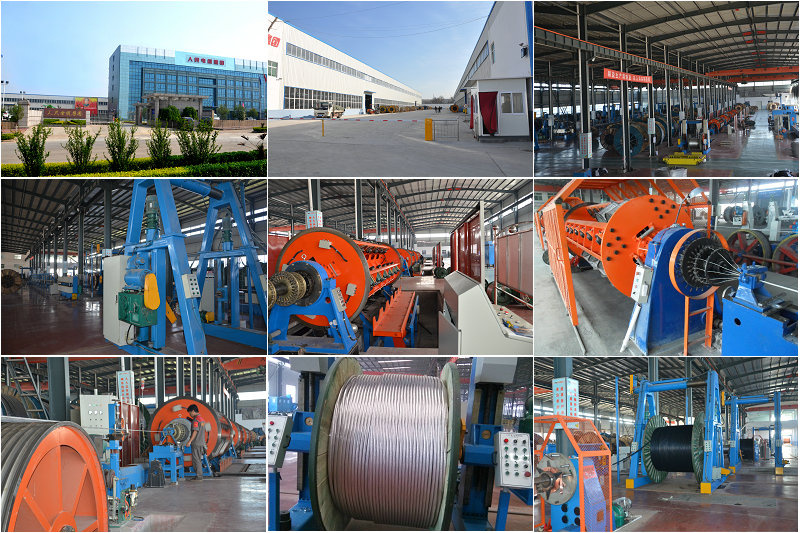

5.Our factory:People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate:As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit:We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8.Contact:Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
Tel:+86-371-55632835
Fax:+86-371-55632837
Mobile:+86-18336390736
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
