EZCON Telecom Technology(Changzhou)Co., Ltd. >> N Attenuator (M to F) Test Devices

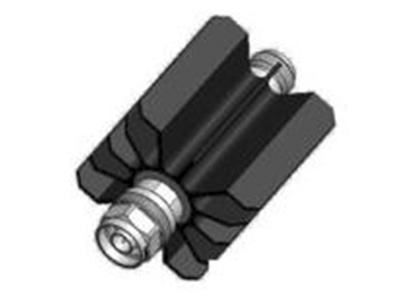

N Attenuator (M to F) Test Devices

N Attenuator (M to F) Test Devices
Price: US $ 35/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T,D/P
Prod Model: N male-female
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS: Mating Cycles
Type: Generally Coaxial Connector
Classification: M-F
Interface Type: N
Medium Pressure: 1000V
Brand: Ezcon

Product Description

EZCON-N  Attenuator (M to F)  Precision coaxial test cable for microwave applications. The maximum frequency is 10 GHz.
`Design in accordance with: IEEE Std 287™ -2007
Standard materials and finish
Product Description

parameters
Port SeriesEZCON-N
Interfacemale/feamle
Electrical data

parameters
Impedance (Ω)50
Frequency (GHz)DC to 10
Return loss≥ 26.4 dB, DC to 2 GHz
≥ 21.2 dB, 2 GHz to 5 GHz
≥ 14.0 dB, 5 GHz to 10 GHz
Insertion loss6 dB

Mechanical data

parameters
Mating cycles≥ 500
Environmental data

parameters
Temperature range (°C )-65 ~ +125
RoHScompliant
Packing

parameters
Weight g/pce270

EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
