N Jack Bulkhead Socket Crimp Cable: Rg174/Rg316

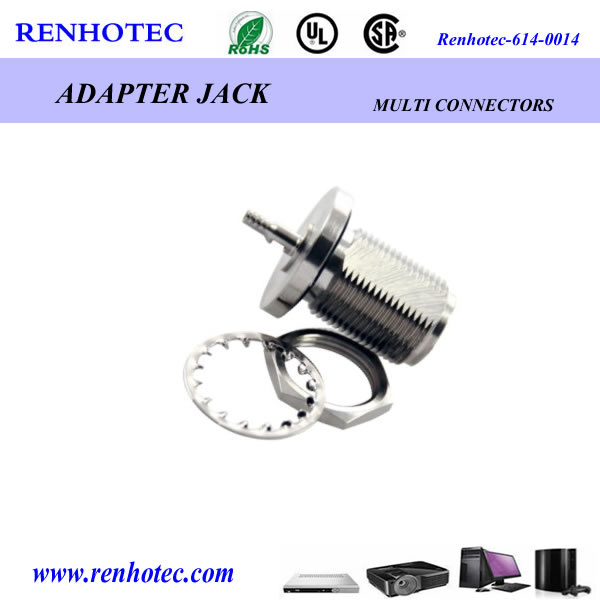

Name: N Jack Bulkhead Socket Crimp Cable: Rg174/Rg316
Brand: all-electronics-online.com
SKU: 747559345
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	renhotec-614-0014
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Brand:	Dosin

Product Description

Series N are threaded connector, medium and small power RF connector. There are 50ohm and 75 ohm about the Characteristic impedance. They are widely use in electronic instrument, communication equipment, internet system, microwave testing, cable assembly and Semiflexible and semirigid cable. Their Frequency can reach 11GHz

. Features:
Accommodates a wide range of medium to miniature-sized RG coaxial cables
High mechanical strength, high durability with low VSWR
Threaded couplings ensures stability in vibration intensive applications
Applications:
Base Stations
WLAN
Instrumentation
Telecom
Radios
Electronical Specifications
Impedance: 50Ω
Frequency Range: 0-11 GHz
Working Voltage: 1000 VRMS max. At sea level
Dielectric Withstanding Voltage: 2500 VRMS min. At sea level
VSWRStraight: 1.3 max., R/A: 1.5 max.
Contact ResistanceCenter Contact: 3 milliohm Max.
Outer Contact: 2 milliohm Max.
Insulator Resistance: 5000 megaohms min.

Material Specifications
Parts Name: MaterialFinish
Center Contact: MaleBrass3μ " Gold or Silver per requirement
Female: BeCu3μ " Gold or Silver per requirement
Body: Metal PartsBrassNickel or Silver per requirement
Insulators: PTFENone
Clamp Gaskets: Silicone rubberNone
Crimp Ferrules: Annealed copperNickel or Silver per requirement
