| Prod Model: |
renhotec-614-0011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Shenzhen;Hongkong |
| Business Type: |
Manufacturer |
| Body Material: |
Zinc Alloy or Brass |
| Fish: |
Nickel Plated |
| Impedance: |
50 Ohm |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Brand: |
Renhotec |
Product Description
Series N are threaded connector,medium and small power RF connector.there are 50ohm and 75 ohm about the Characteristic impedance.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and Semiflexible and semirigid cable.their Frequency can reach 11GHz .
N type connector Features & Benefits
. | Accommodates a wide range of medium to miniature-sized RG coaxial cables in a rugged medium-sized design |
| . | Broad line of Military (M39012), Industrial (UG) and Commercial (RFX) grade products available, giving customers choices in weighing cost versus performance benefits |

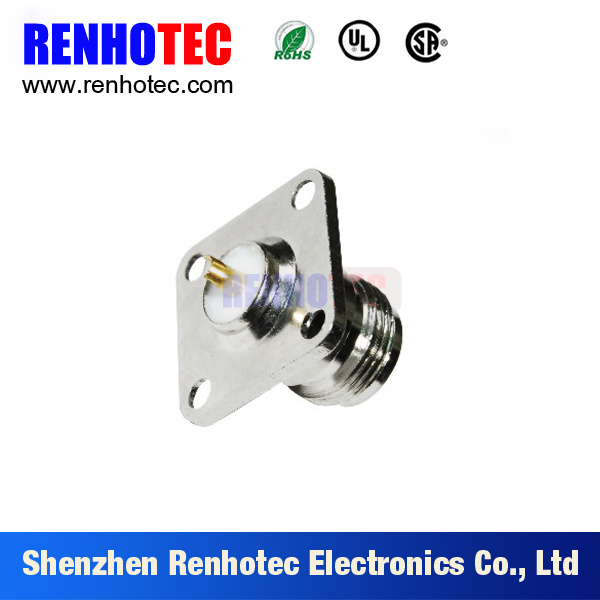

| . | Meets many customer application demands with plug styles available in straight and right angle and jack styles available in panel mount, bulkhead mount, and receptacle |
N type connector Applications
. | Antennas | . | Base stations | . | Broadcast |
| . | Cable assemblies | . | Cellular | . | Components |
| . | Instrumentation | . | Microwave Radio | . | Mil-Aero |
| . | PCS | . | Radar | . | Radios |
| . | Satcom | . | Surge Protection | . | WLAN |
Brass N type connector Specifications
Electrical |
| Impedance | 50/75 Ω |
| Frequency Range | 0 - 120 GHz |
| Voltage Rating | 1,500 volts peak |
| VSWR | MIL-C-39012 straight connectors: 1.3 max 0-11 GHz
MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz |
| Dielectric Withstanding Voltage | 2,500 volts rms |
| Insulation Resistance | 5,000 MΩ minimum |
| Center Contact Resistance | 1.0 mΩ |
| Outer Contact Resistance | 0.2 mΩ |
| RF Leakage | -90 dB minimum at 3 GHz |
| Insertion Loss | .15 dB maximum at 10 GHz |
| Mechanical |
| Mating | 5/8-24 threaded coupling |
| Braid or Jacket Cable Affixment | All crimps: hex braid crimp
Clamps: screw-thread nut and braid clamp |
| Center Conductor Cable Affixment | Crimp: crimp or solder
All others: solder only |
| Captivated Contact | All crimps unless specified otherwise |
| Cable Retention | Crimps: 60-120 lbs
Clamps: 30-70 lbs |
| Material |
| Male Contacts | Brass, silver or gold plated |
| Female Contacts | Phosphorous bronze or beryllium copper, silver or gold plated |
| Other Metal Parts | Brass with ASTROplate® finish; M39012 has silver finish |
| Insulators | TFE, copolymer of styrene or glass-TFE (hermetic seal) |
| Weatherproof Gaskets | Silicone rubber of synthetic rubber |
| Crimp Ferrule | Copper |
| Environmental |
| Temperature Range | TFE: -65°C to +165°C |
| Weatherproof | All series N with gaskets are weatherproof |
| Hermetic Seals | Pass helium leak test of 2x10-8 cc/sec |
| Pressurized Shock | Compression seal MIL-STD-202, method 213 |
| Vibration | MIL-STD-202, method 204, test condition B |
| Moisture Resistance | MIL-STD-202, method 106 |
| Corrosion | MIL-STD-202, method 101, test condition B |
| Temperature Cycling | MIL-STD-202, method 102, test condition C |
| Altitude | MIL-STD-202, method 105, test condition C |
Military
|
MIL-C-39012
MIL-A-55339 | Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
Services: We also customize special products to meet our clients' requirements. Just show us your drawing, sample or indicated details, we will produce it Or please kindly send us your specific engineering parameters such as IMD, VSWR, plating etc. We will discuss with you about the details and please feel free to contact us.
Quality: We use only the best quality components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Guaranty: We provide comprehensive service, including quality service, guidance services, We focus on customer needs in every detail.
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.
Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.
Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.
Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.
Our managing principles:Good quality, loyalty and common prosperity.
