N Male Connector for 1/2" RF Feeder Cable

Price:	US $ 0.01-2.0/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N Type Male
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Body:	Bare Coper Nickle Plated
Installed With:	RF Cable 1/2"
Return Loss:	20db
Strength:	Low Loss
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Interface Type:	N
Shape:	Straight
Brand:	Otto Cable

Product Description

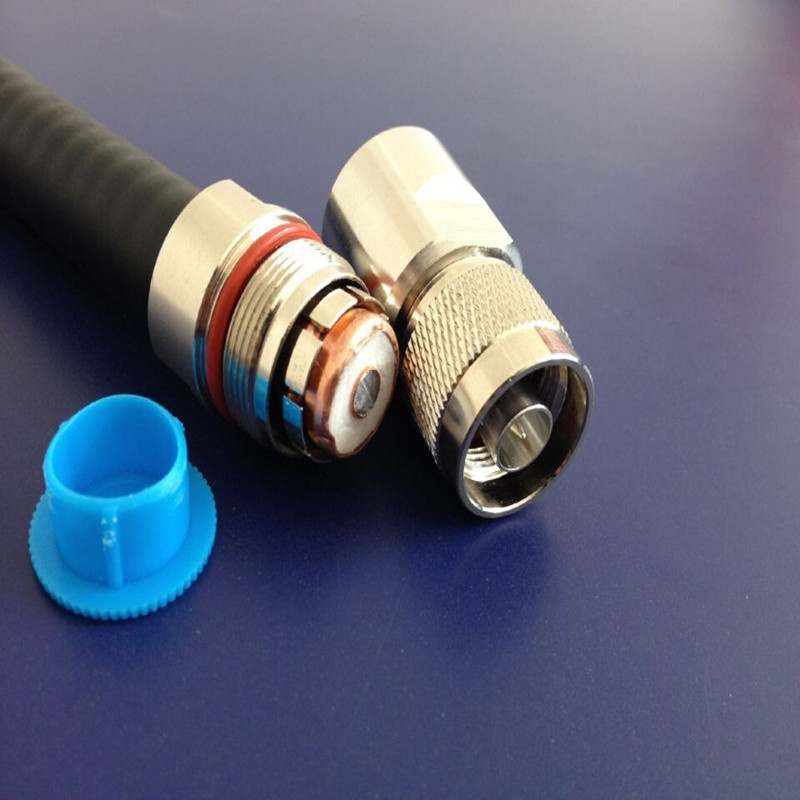

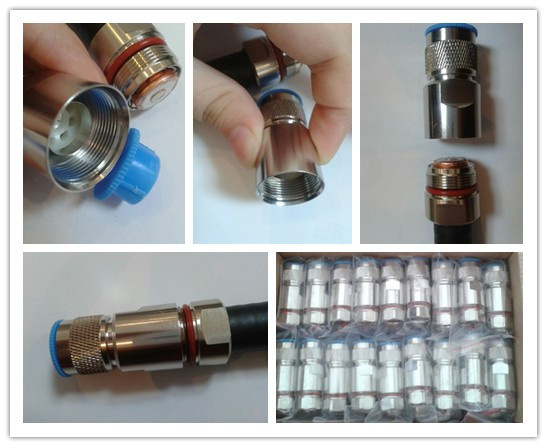

50 Ohm N Male RF Connector for RF Feeder Cable 1/2"

Features:
1). Body: Nickle Plated Bare Copper
2) Suitable for 1/2" cable
3) Connection dimensions: 5/8-24UNEF
4) Characteristic impedance: 50Ω
5) Contact resistance (outer conductor): &ge'0.25mΩ
6) Contact resistance (inner conductor): ≥ 1mΩ
7) Insulation resistance: ≤ 5, 000MΩ
8) Withstanding voltage: AC 2500V, 1min
9) VSWR (0~2.5GHz): ≥ 1.10
10) Intermodulation (IM3): ≥ -150 dBc

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
