N Male to N Male Low Loss Test Cable
| Price: |
US $ 280.42PCS |
| Trade Terms: |
FOB |
| Min Order: |
100PCS |
| Pay Type: |
T/T,D/P |
| Prod Model: |
N male-male |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RoHS: |
Mating Cycles |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Type: |
Test Cable |
| Model: |
N |
| Brand: |
Ezcon |
Product Description
N Male to N Male Low Loss Test Cable Using SF3.5 Coax, RoHS
This EZCON N male to N male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm N for connector 2. Our male N to male N cable assembly uses a flexible cable type that is 50 Ohm. EZCON N male to N male cable assembly is constructed with SF3.5 coax and the maximum VSWR is 1.35:1.
| Electrical Specifications |
| Attenuation index |
| Frequency(GHz) | 1 | 10 | 18 | 26.5 |
| Nominal attenuation value(dB/m) | 0.25 | 0.92 | 1.05 | 1.35 |
| Power Handing Watts | 501 | 205 | 266 | 245 |
| Mechanical properties |
| Temperature range(°C) | -65° C ~ +165° C |
| Minimun Bend Radius,in(mm) | 15 |
| Cable |
| Center Conductor Type | Solid |
| Cable Inner Conductor | Copper Silver |
| No of Shields | 2 |
| Cable Outer Conductor | Copper Silver |
| Dielectric Type | PTFE |
| Jacket Material | FEP |
| Jacket Diameter,in(mm) | 0.3(7.62) |
| Key Specifications (Click on Data Sheet Above for Additional Details) . |
| Connector Series 1 | N |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 |
| Inner Conductor Material and Plating | Beryllium Copper,Gold |
| Inner Conductor Plating and Specification | ASTM-B488 50u In. |
| Outer Conductor Material and Plating | Passivated Stainless Steel |
| Outer Conductor Plating and Specification | SAE-AMS-2700 |
| Coupling Nut Material and Plating | Passivated Stainless Steel |
| Coupling Nut Plating Specification | SAE-AMS-2700 |
| Hex Size,Inch | 3/4 |
| Torque,in-ibs(Nm) | 14(1.58) |
| Body Material and Plating | Passivated Stainless Steel |
| Body Plating Specification | SAE-AMS-2700 |
| Dielectric Type | PTFE |
| Connector Series 2 | N |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 |
| RF Cable Part Number | SF3.5 |
| RF Cable Type | SF3.5 |
| Inner Conductor Material and Plating | Beryllium Copper,Gold |
| Inner Conductor Plating and Specification | ASTM-B488 50u In. |
| Outer Conductor Material and Plating | Passivated Stainless Steel |
| Outer Conductor Plating and Specification | SAE-AMS-2700 |
| Coupling Nut Material and Plating | Passivated Stainless Steel |
| Coupling Nut Plating Specification | SAE-AMS-2700 |
| Hex Size,Inch | 3/4 |
| Torque,in-ibs(Nm) | 14(1.58) |
| Body Material and Plating | Passivated Stainless Steel |
| Body Plating Specification | SAE-AMS-2700 |
| Dielectric Type | PTFE |

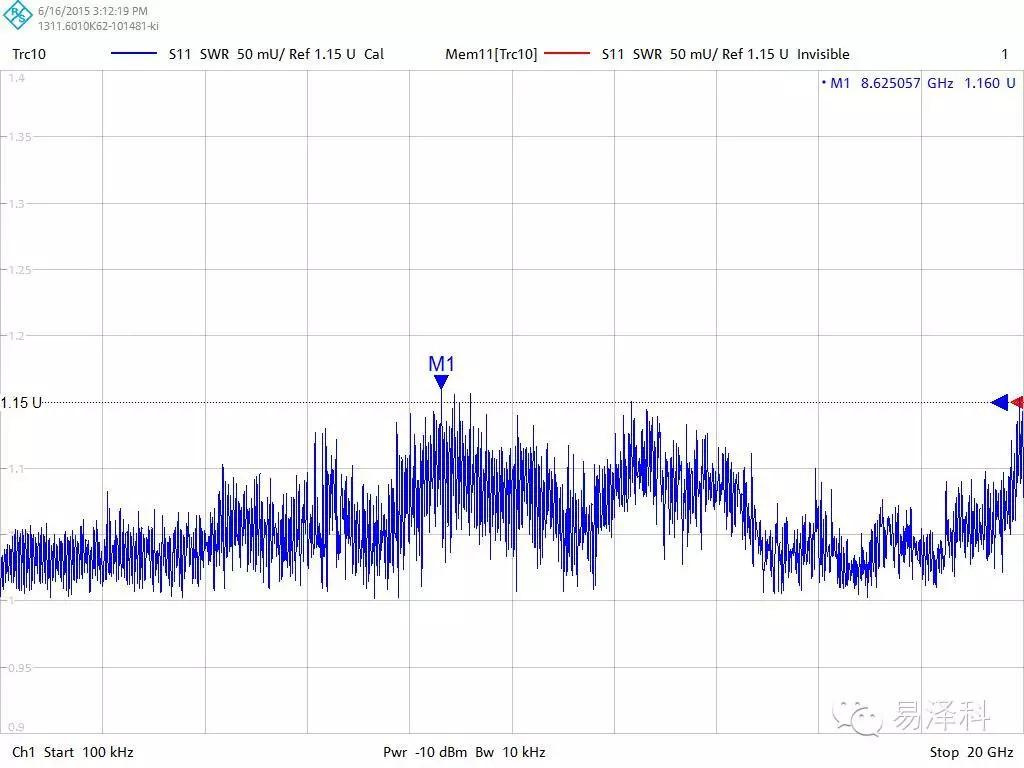

DC to 20GHz,VSWR<1.20
DC to 20GHZ,Insertion loss<7dB (7M)
EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.
Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
