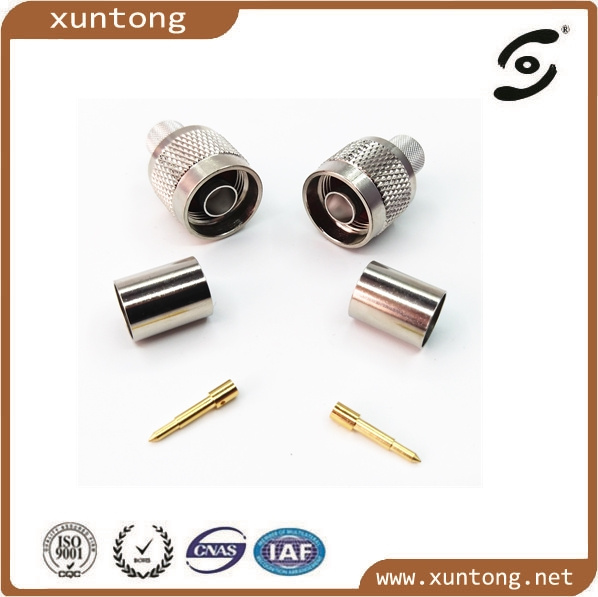

N Type Male Crimp Plug Connector for LMR400 Rg8

Name: N Type Male Crimp Plug Connector for LMR400 Rg8
Brand: all-electronics-online.com
SKU: 799672125
Availability: InStock
Rating: 5 (57 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	N 82
Item Name:	BNC Connector Male to Female BNC Connector
Impedance:	50ohm / 75ohm
Insulation Resistanc:	More Than The 5000mohm
Frequency Range:	0~2GHz
Resistanc:	Inner Conductor ≤2.0mohm
Frequency Response:	DC to 8 MHz
Applicable Standard:	IEC 60169-24
Center Pin:	Gold-Plated Pure Copper
Type:	Generally Coaxial Connector
Coupling Mechanism:	Clamping Type
Application:	N
Interface Type:	N
Brand:	Xt

Product Description

PRODUCT SPECIFICATIO

N connector

Type name	N connector male female connector
Impedance	50Ω
Vibration	100m/S2 (10~500Hz)
Frequency Range	DC-7.5GHz
Insertion Loss	≤ 0.15dB/6GHz
Withstanding Voltage	4000V r.m.s at sea level
Working Voltage	2700Vr.m.s at sea level
Average power	3Kw max
Insulation Resistance	≥ 10000 MΩ
Center conductor retention force	≥ 6N
Durability	≥ 500(cycles)
Contact resistance:	CenterContact ≤ 0.4mΩ
	Outer Contact ≤ 1.5mΩ
Voltage Standing Wave Ratio:	Straight	≤ 1.20/6GHz
	Right angle	≤ 1.35/6GHz

OUR SERVICE

1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.

FAQ

A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.

B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.

C :I dont know if your product is suitable for us.

XT: Dont worry,we can give our samples to you if you need.

Xuntong Electronics Co., Ltd

Yangzhou Xun Electronics Co., Ltd. Was established in 2003, in the connector field has many years of production experience and superb product technology,

About the RF coaxial connectors, F head series (RG58, RG59, RG6, GR11), PAL (TV), BNC, N, RCA, SMA, SMB, TNC, L9 (1.6 / 5.6). L27, L29 (7/16), L36, L52., UHF (PL259), 1 / 2, 7 / 8, IF45Q type (15 / 8), IF70Q type (15/8), C6X, Q6, NEC (C4.6), MCX, MMCX, CC4 (1.0 / 2.3) and communication network products series of RF coaxial connectors between different series adapter, fiber optic connectors, filling micro-series connectors, coaxial attenuators coaxial tone attenuator, coaxial load, etc., can also be designed according to customer needs and processing of various special requirements of the connectors, copper nuts and other various copper pieces!

OUR PURPOSE

1. Attentive service process.

2. Superb product technology.

3. High-quality products.

OUR CREDIT

1. More than a decade of production experience.

2. More than five years of foreign trade transactions.

3. Long-term supply to Japan, Europe and the United States.

4. World Brand: Xuntong.
