| Prod Model: |
MPS9330 Series 10-300KVA |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
Product Description

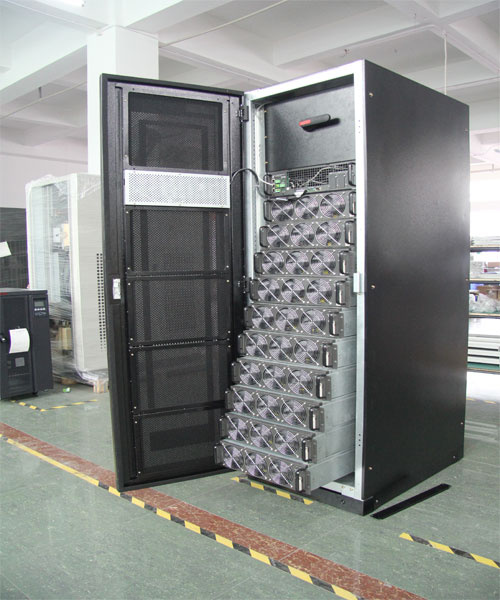

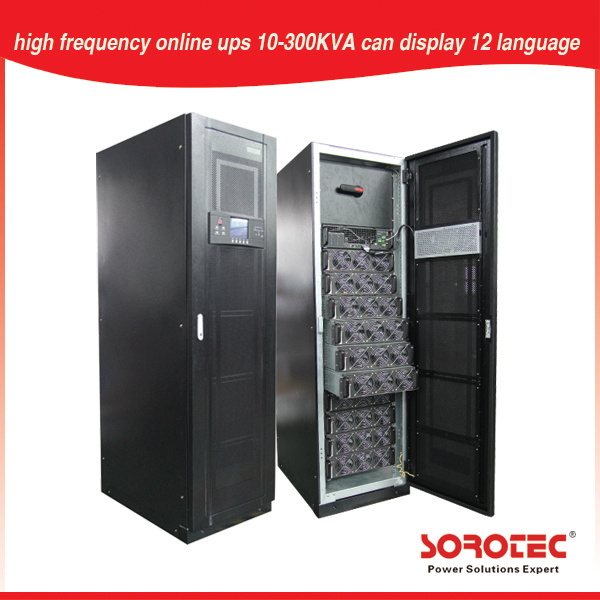

N+X Modular ondulur UPS Series MPS9335 Series 10-300KVAApplications:IDC Internet Data Center, computing center, ISP (Internet Service Provider ), Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Key Features:Module structure, be compose from 1 to 10 modules.
Redundant and scalable system, it can be upgraded According to your requirement.
N + X redundancy, reliable performance.
Share battery pack.
Green and clean power, Input THDI≤ 3%, Input PF≥ 0.99. Can display 12 language (Chinese, English, Russian, French, Spanlish and so on)
Small size, light weight.
Easy maintenance, free replacement of the module.
System controller for communication and diagnosis.
Adopt centralized Static Switch module.
Static switch module
System standard configuration module
Adop SCR and AC contactor in parallel
High reliability, strong overload ability: 1000% for 1min
Transfer time less than 4ms
Have strong self-test, inter-lock and full-protection function
Power module:Freedom choice of capacity configuration according demand, easy to expand
Online double-conversion design to ensure the output quality
Each module has independent digital intelligent control
Each module can work independently
Each module has a separate charging system
All modules can be hot-swappable, easy for online maintenance
Model | MPS9335 10-300KVA |
| Capacity | 10-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 1.0 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP41/IP42 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| | 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG |
| | module :PM10 | 10KVA power module :20KG |
| Weight | module :PM20 | 20KVA power module :21KG |
| | module :PM30 | 30KVA power module :32KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 |
| 10 module cabinet | 600X2070X850 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |

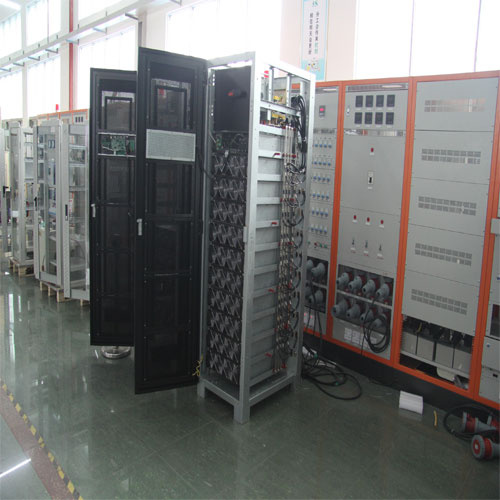

Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
