| Prod Model: |
xlpe cable 500mm2 |
| Standard: |
IEC 60332,1, IEC 60502-1, Ce, RoHS |
| Rated Voltage: |
0.6/1 Kv |
| Application: |
Under Ground, in Power and Switching Stations |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SGS |
| Model: |
N2xy |
| Brand: |
Hongda |
Product Description

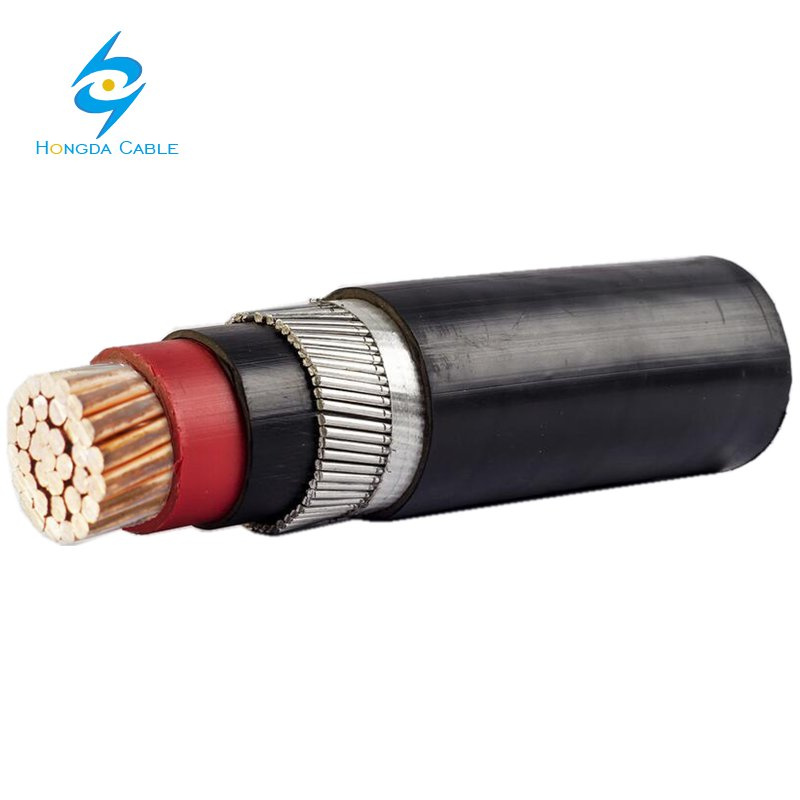

N2xy 500mm2 copper single core armoured xlpe cablepvc power cable STRUCTURE
pvc power cable Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
pvc power cable Standard
IEC 60502-1

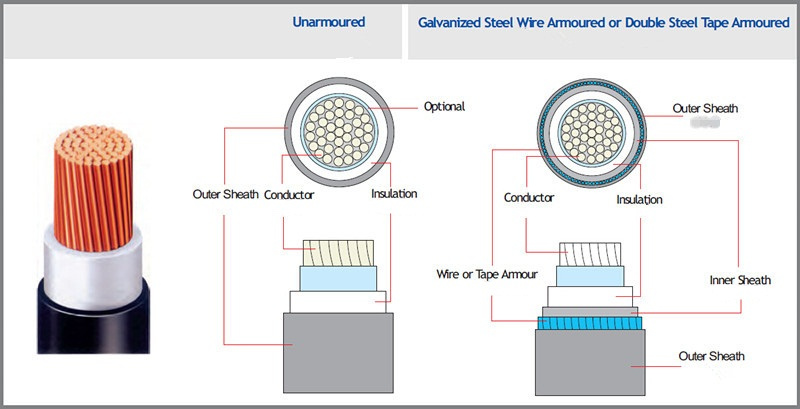

pvc power cable Construction
| Conductors | The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228. |
|---|
| Insulation | XLPE Insulation material and thickness shall be as per IEC 60502-1 |
|---|
| Assembly / Inner Covering | The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound. |
|---|
| Armour | Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request. |
|---|
| Outer Sheath | Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request. |
|---|
| Fire Performance of Cable Sheaths | Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2. |
|---|
single core armoured xlpe cable Dimensions

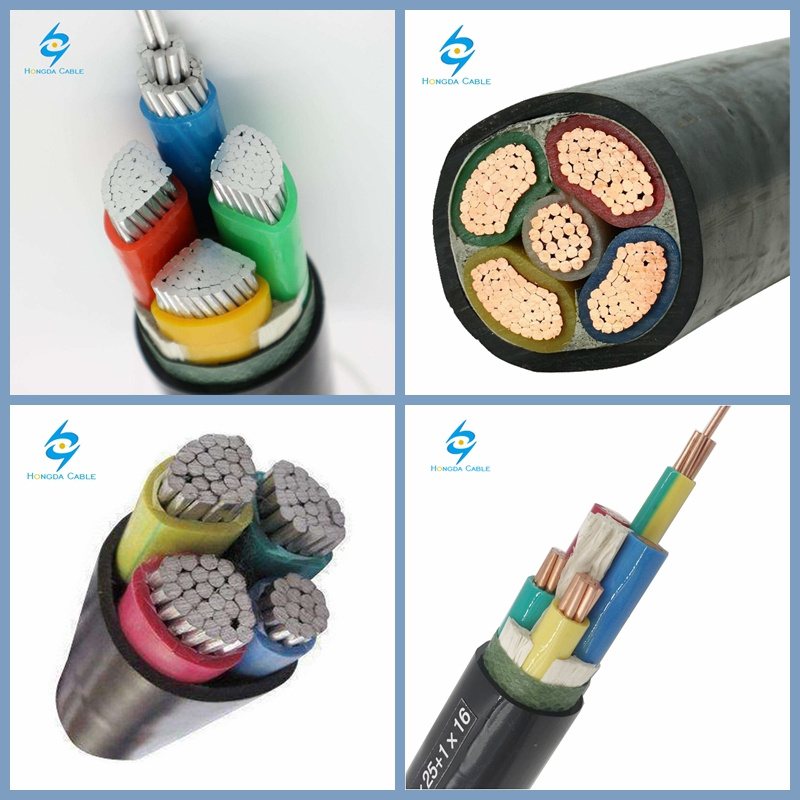

Single core( aluminum wire armoured) | Two cores(Galvanized steel wire armoured) | Three cores(Galvanized steel wire armoured) | Three cores+1(Galvanized steel wire armoured) | Four cores(Galvanized steel wire armoured) |
|---|
| Nominal Cross Section (mm2) |
|---|
| | 2x2.5 | 3x2.5 | | |
| 1x4 | 2x4 | 3x4 | | 4x4 |
| 1x6 | 2x6 | 3x6 | | 4x6 |
| 1x10 | 2x10 | 3x10 | 3x10+1x6 | 4x10 |
| 1x16 | 2x16 | 3x16 | 3x16+1x10 | 4x16 |
| 1x25 | 2x25 | 3x25 | 3x25+1x16 | 4x25 |
| 1x35 | 2x35 | 3x35 | 3x35+1x16 | 4x35 |
| 1x50 | 2x50 | 3x50 | 3x50+1x25 | 4x50 |
| 1x70 | 2x70 | 3x75 | 3x70+1x35 | 4x75 |
| 1x95 | 2x95 | 3x95 | 3x95+1x50 | 4x95 |
| 1x120 | 2x120 | 3x120 | 3x120+1x70 | 4x120 |
| 1x150 | 2x150 | 3x150 | 3x150+1x70 | 4x150 |
| 1x185 | 2x185 | 3x185 | 3x185+1x95 | 4x185 |
| 1x240 | 2x240 | 3x240 | 3x240+1x120 | 4x240 |
| 1x300 | 2x300 | 3x300 | 3x300+1x150 | 4x300 |
| 1x400 | 2x400 | 3x400 | 3x400+1x185 | 4x400 |
| 1x500 | | 3x500 | 3x500+1x240 | 4x500 |
| 1x630 | | | | |
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

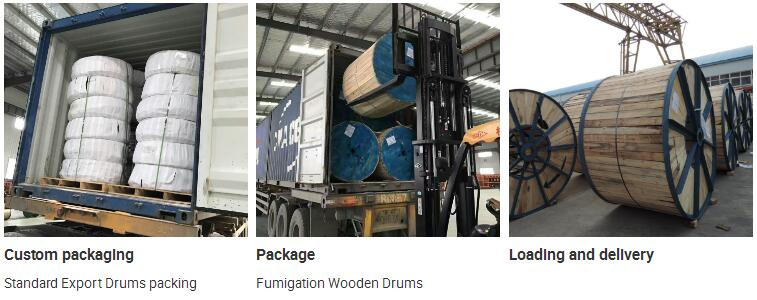

Packing & Shipping:
PackingSteel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:FOB/C&F/CIF/DAP quotation are all available.
Why Choose Us ?1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQQ: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: 30% T/T in advance,70% T/T balance before shipment
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
