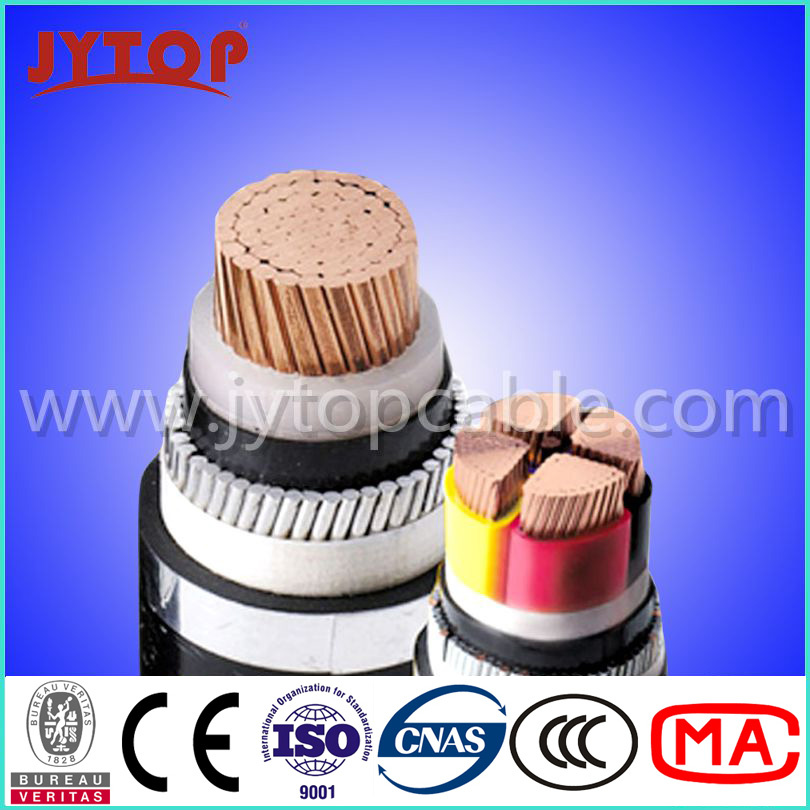

Na2xs2y 6/10kv, 12/20kv, 18/30kv Power Cable

Name: Na2xs2y 6/10kv, 12/20kv, 18/30kv Power Cable
Brand: all-electronics-online.com
SKU: 707094392
Availability: InStock
Rating: 4.6 (131 reviews)

Price:	US $ 0.187/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	NA2XS2Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
None:	None
Application:	Power Station
Voltage:	High Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CCC
Sheath Material:	PE
Wire Core Material:	Aluminum
Model:	Na2xs2y
Brand:	Jinyuan

Product Description

NA2XS2Y 6/10kV, 12/20kV, 18/30kV power cable:

NA2XS2Y Cable is used to be laid directly in ground, outdoors, indoors and in cable ducts

Application
Power cable with XLPE insulation for fixed laying in grids and installations, designed for transmission and distribution of electric power at nominal voltages U0/U 6/10, 12/20, 18/30 kV, and frequency 50 Hz. Suitable for fixed indoor installation, in cable ducts, tunnels and draw-in-pits, on cable trays and racks, directly underground and outdoors under shelters

Construction characteristics
Conductor shape	Circular stranded (RM)
Lead free	Yes
Insulation	XLPE (chemical)
Screen	Copper wire + copper tape
Material of bedding	Separation tape
Outer sheath	PVC
Usage characteristics
Packaging	Drum
Minimum installation temperature	-20°C
Max. conductor temperature in service	90°C
Short-circuit max. conductor temperature	250°C
Bending factor when laying	15(xD)

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
