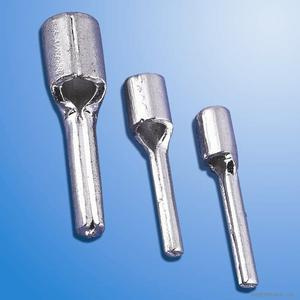

Naked Pin Type Electrical Cable Terminal

Name: Naked Pin Type Electrical Cable Terminal
Brand: all-electronics-online.com
SKU: 734968445
Availability: InStock
Rating: 5 (68 reviews)

Price:	US $ 0.24/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTN 1.25-9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Various Size Available
Application:	Conduct Electricity
Type:	Socket Terminals
Material:	Copper
Brand:	Jma
Shape:	Pin

Product Description

1) Application: Widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

2) Processing: Cold press

3) Material: T2 copper with tinned surface, cridible conductivity

Feature:
1. Material: Copper brass
2. Plating: Tin
3. Certificates: CE. ISO 9001: 2000
4. Various wire range

Cable size0.51.5mm 2 A.W.G.2216) Max currentImax=19A Materialpurple copper Thickness0.75mm

Item No

Dimension(mm)

Dφ

dφ

PTN 1.25-9

1.9

13.8

4.8

3.4

1.7

PTN 1.25-10

1.9

14.8

PTN 1.25-12

1.9

16.8

PTN 1.25-13

1.9

17.8

PTN 1.25-18

1.9

22.8

Cable size1.52.5mm 2 A.W.G.1614) Max currentImax=27A Materialpurple copper Thickness0.8mm

Item No

Dimension(mm)

Dφ

dφ

PTN 2-9

1.9

13.8

4.8

4.1

2.3

PTN 2-10

1.9

14.8

PTN 2-12

1.9

16.8

PTN 2-13

1.9

17.8

PTN 2-18

1.9

22.8

Cable size2.54mm 2 A.W.G.1412) Max currentImax=37A Materialpurple copper Thickness1.0mm

Item No

Dimension(mm)

Dφ

dφ

PTN 3.5-10

2.8

14.8

6.0

5.0

3.0

PTN 3.5-13

2.8

19.8

Cable size46mm 2 A.W.G.1210) Max currentImax=48A Materialpurple copper Thickness1.0mm

Item No

Dimension(mm)

Dφ

dφ

PTN 5.5-13

2.8

19.8

6.0

5.6

3.4

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
