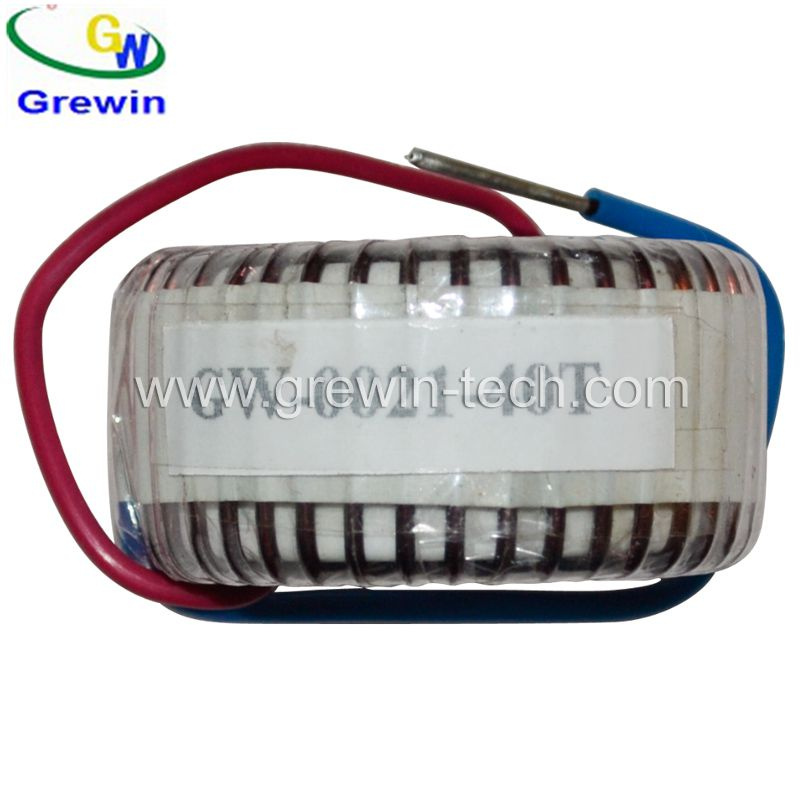

Nan-Crystalline Current Transformer

Name: Nan-Crystalline Current Transformer
Brand: all-electronics-online.com
SKU: 671935222
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWCTA-09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Interior Insulation:	Epoxy Encapsulated
Isolation Voltage:	2500 Vrms for 1 Minute
Frequency:	50 to 400 Hz
Accuracy Class:	IEC 60044-2 Part 2
Application Area:	Would Include Voltage
Exterior Material:	PBT Resin UL Flame Retardant Rating 9
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Winding Form:	Toroidal

Product Description

Features
    Low cost
    More than 30 standard sizes
    Non-symmetrical mounting pattern
Applications
     For applications that require exceptional
            accuracy with minimal phase angle error
    Applications would include Voltage,power and
            energy monitoring devices.
Specifications
    Exterior Material:PBT Resin UL flame retardant
            rating 94-V0
     Interior Insulation:Epoxy Encapsulated
    Isolation Voltage:2500 Vrms for 1 minute
    Dielectric Resistance:1000 M Ohms @ 500 Vdc
     Surge Withstand:5000V(1.2/50μs standard
            shock wave)optional
      Rated Load Resistance:100K Ohms
    Operating Temperature:-25 to +55ºC,-40 to +85ºC                optional
     Frequency:50 to 400 Hz
    Accuracy Class:as defined in IEC 60044-2 Part 2
             Voltage Transformers Class 0.1
     RoHS Compliant
