Nanocrystalline Core and Common Mode Choke (T3)

Name: Nanocrystalline Core and Common Mode Choke (T3)
Brand: all-electronics-online.com
SKU: 691471425
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flyback:	Ferrite
Type:	Variable Inductor
Structure:	Inductive Choke
Brand:	Coilcore

Product Description

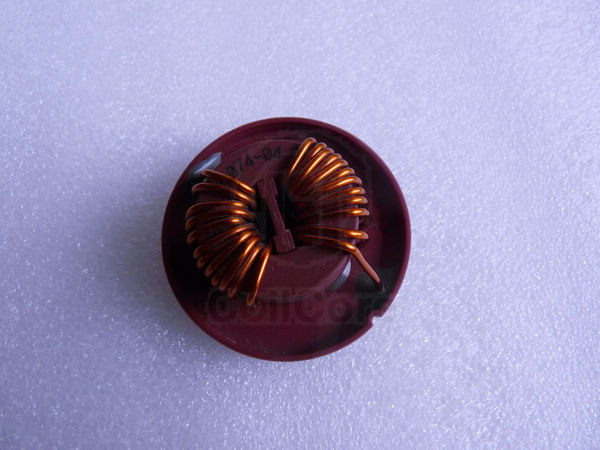

Common mode choke
1. Custom designs available
2. Professional design
3. Factory direct price
4. Small orders acceptable

1. Low cost&High efficiency
2. Low magnetic leakage
3. High saturation current
4. Good control on noise due to the toriodal constructure
5. Various material available to meet different frequency requirements

Core P/N	Core dimmensions	Finished Dimensions			Core Ae	Core Le	AL* nominal (10kHz)		AL* nominal (100kHz)		Isat ** I×N 10kHz	Isat ** I×N 100 kHz	Weight	ref. P/N VAC/
	Core dimmensions	Finished Dimensions					AL* nominal (10kHz)		AL* nominal (100kHz)		Isat ** I×N 10kHz	Isat ** I×N 100 kHz	Weight	ref. P/N VAC/
	odx id x h	OD	ID	H			AL	Perm.μi	AL	Perm. μi	typical	typical		Magnetec
	mm	mm	mm	mm	cm2	cm	μH	Perm.μi	μH	Perm. μi	A	A	g
CMC604520E	60x45x20	64	41	24	1.16	16.5	4.4	5000	4.1	4700			140
CMC1008020C	100x80x20	104	75	23	1.54	28.3	11	16000	10	14500	10.9	13.8	320	W723
CMC1008020E	100x80x20	104	75	23	1.54	28.3	3.4	5000	3.2	4700	38	48	514
CMC1027625A	102x76x25	108	70	30.5	2.5	28	68.8	6000	21.6	19000	3.8	6	514	W468
CMC1027625C	102x76x25	108	70	30.5	2.5	28	19.1	18000	17.2	15000	10.6	13.7	514	V080
CMC1027625D	102x76x25	108	70	30.5	2.5	28	8.4	8000	8	7000			514
CMC1027625E	102x76x25	108	70	30.5	2.5	28	5.6	5000	5.3	4700	38	46	514
CMC13010030A	130x100x30	136	94	36	3.5	36	60.2	50000	24.2	20000	3.8	6	920	M-616
CMC13010030B	130x100x30	136	94	36	3.5	36	36.2	30000	21.7	18000	8.3	12	920	M-116
CMC13010030C	130x100x30	136	94	36	3.5	36	21.7	18000	18.1	15000	13.8	17.5	920	M-416
CMC13010030E	130x100x30	136	94	36	3.5	36	6	5000	5.5	4700	50	65	920	M-456
CMC16013025A	160x130x25	166	124	31	2.89	45.6	39.8	50000	15.9	20000	4.8	7.5	950
CMC16013025B	160x130x25	166	124	31	2.89	45.6	23.9	30000	14.3	18000	10	15	950
CMC16013025C	160x130x25	166	124	31	2.89	45.6	14.4	18000	12	15000	17	22	910	V066
CMC16013025E	160x130x25	166	124	31	2.89	45.6	4	5000	3.7	4700	79	81	970	W982
CMC17012025C	170x120x25	178	112	32	2.89	45.6	36.5	18000	30.5	15000			1600
CMC19415525A	194x155x25	201	148	31	3.75	54.8	43	50000	17.2	20000	6.9	12.5	1520	V105
CMC19415525B	194x155x25	201	148	31	3.75	54.8	25.8	30000	15.5	18000	13	19.2	1520
CMC19415525C	194x155x25	201	148	31	3.75	54.8	15.5	18000	12.9	15000	20.7	26.4	1520	W908
CMC20016030C	200x160x30	207	153	37	4.62	56.5	18.4	18000	15.4	15000	21	26	1800	M-417
CMC20016030E	200x160x30	207	153	37	4.62	56.5	5.2	5000	4.8	4700	52	65	1800	M-457
