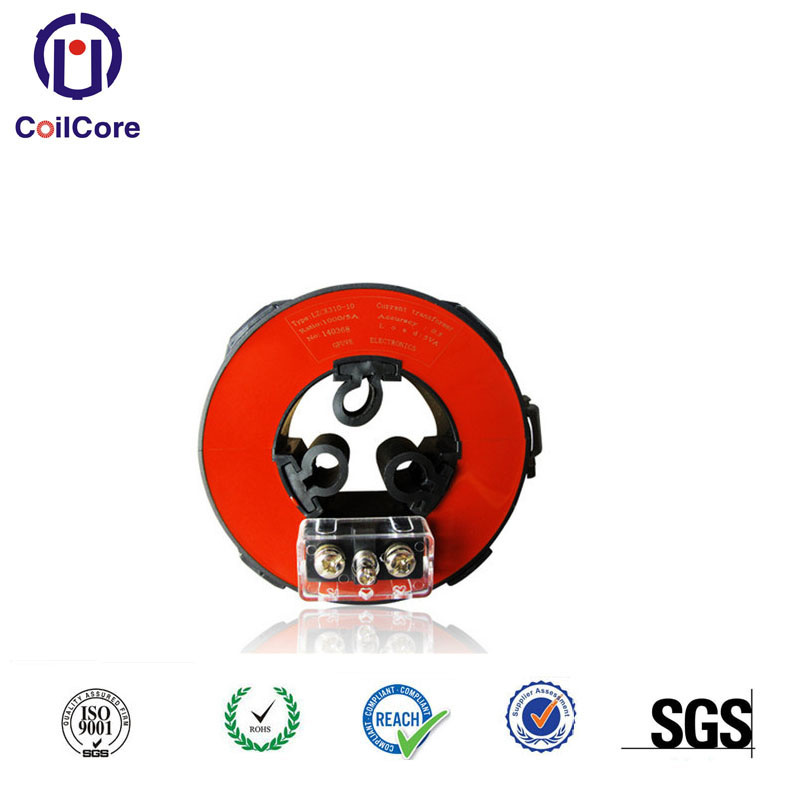

Nanocrystalline Core for Current Transformer

Prod Model:	AM ID/ODXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio

Product Description

Application areas:

Masuring-level cirrent transformer used in power system, transformer used on precision measuring instruments (such as watt-hour meter)

According to the requirements of different measurement accuracy of the transformener, different soft magnetic materials can be chosen as iron core materials. The higher the permeabilty of the iron core is. The smaller the measurement error of the transformer is. Hence the accuracy is higher. At present, the more common iron core material is cold-rolled silicon steel sheet, followed by Permalloy and nano-crystalline glass alloy.

In recent years, demands for trandformers with high-precision level(such as class 0.2, class 0.2S and class 0.5S) increased rapidly. When small ratio, low ampere tums are required or the iron core is restricted because of the small volume, the cold-rolled silicon steel often fails to meet the accuracy requirements. Althous the Permalloy iron cores with high permeability can meet the required precision, its price is very high

However use of nano-crystalline alloy iron cores can both meet the accuracy requirements and be produced at lower cost than the permalloy. Theefore, the demand of measuring level current transformer iron core made of nano-crystalline alloy rapidly increased domestically.

Working conditions:

Ambient temperature:-35°C~+55°C,not exceeding +40°C.

The Height of above sea level:0~ 3000m .

Atmosphere conditions: No highly polluted,errosion,erosiveness,radioactivity gases.

(continuous working under the rated current is allowed)

(P2 represents for primary polar end,S1,S2 represent for secondary polar end

P2 and S2 are subtractive polarity.

Technical parameters::

Rated frequency::50Hz or 60Hz

Rated secondary current:5A or 1A

Secondary winding power frequency withstand voltage:3kV,1min

Safety Factor Rating (FS) < 5

standard of Application:GB1208-2006;IEC 60044-1;NTC 2205

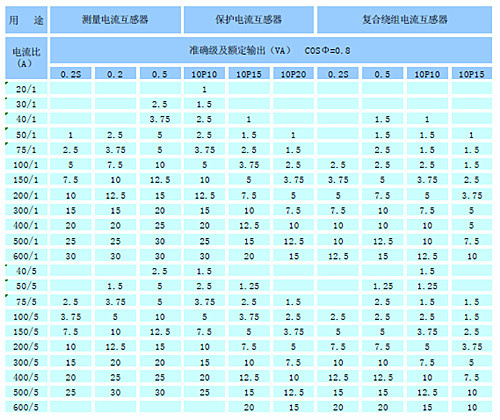

Accuracy Class:   0.5S or 0.5, 1;

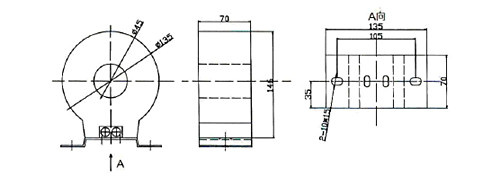

Item Name	Range of primary rated current	Range of Rated load	(mm)(Description)	(Weight)(kg)
LZCK110-10	300-600A	≤5VA	φ64×φ104×32	0.6
LZCK310-10	300-600A	≤5VA	φ50×φ110×32	0.6
LZCK322-10	30-600A	≤10VA	φ50×φ110×52	1.6
LZCK350-10	30-600A	≤25VA	φ50×φ110×105	3.1
LZCK020-10	300-600A	≤5VA	φ55×φ86×50	0.5
LZCK830-35	50-600A	≤10VA	φ66×φ130×70	2.0
