| Prod Model: |
20x30x10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Saturation Magnetic Induction: |
Low Core Loss |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single and Three |
Product Description

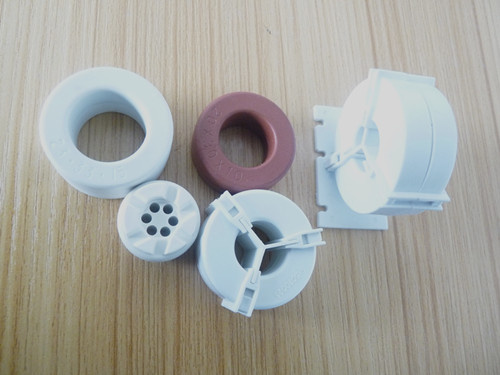

Nanocrystalline toroidal core for common mode chokeFEATURES:
1) High permeabilityμi (200KHz) , high L and impedance Z in the high frequence range
2) High saturation flux density(1.2T)
3) High curie temperature(580ºC) and excellent temperature characteristics
4) Low remanent flux density Br with DC-tolerance
APPLICATIONS:
For common mode chokes, power transformers and ELPB
| P/N | core dimension
od×id×h mm | Limit dimension | G
(g) | Ae
cm2 | le
cm | I eff
mA/ | 10KHz
min | 100KHz
min | ref. P/N |
| OD | ID | H | AL/μH | μ(K) | AL/μH | μ(K) |
| NL100705G | 10×6.5×5 | 11.8 | 5.1 | 6.8 | 1.2 | 0.07 | 2.60 | 5.4 | 19.1 | 65 | 4.8 | 14.5 | ~W914 |
| NL120805G | 12×8×5 | 14.4 | 6.4 | 7.2 | 2.0 | 0.08 | 3.14 | 7.0 | 20.0 | 65 | | | ~W902 |
| NL161008G | 16×10×8 | 17.8 | 8.6 | 10.0 | 5.6 | 0.19 | 4.08 | 10 | 34.0 | 60 | 8.0 | 14.0 | ~W403 |
| NL201208G | 20×12×8 | 22.5 | 10.0 | 10.0 | 9.7 | 0.25 | 5.03 | 10 | 40.0 | 64 | 9.3 | 15.0 | ~W409 |
| NL201210G | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 50.0 | 65 | 11.7 | 15.0 | |
| NL201210GL | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 22-33 | 28-42 | | | |
| NL211508GC | 21×15×8 | 23.6 | 12.1 | 11.4 | 7.5 | 0.19 | 5.65 | 10 | 25.0 | 60 | 5.8 | 14.0 | |
| NL252010G | 25×20×10 | 27.6 | 17.4 | 12.8 | 10.4 | 0.20 | 7.07 | 15 | 21.3 | 62 | 5.5 | 15.5 | W523 |
| NL261910GC | 26×19×10 | 28.5 | 16.2 | 13.2 | 14.1 | 0.27 | 7.06 | 15 | 29.0 | 60 | 6.8 | 14.0 | |
| NL261610G | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 48.0 | 65 | 11.5 | 15.5 | ~W380 |
| NL261610GL | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 21-32 | 28-42 | | | |
| NL322010GC | 32×20×10 | 34.5 | 17.0 | 13.0 | 28.0 | 0.71 | 8.17 | 20 | 46.0 | 64 | 10.5 | 14.6 | ~W423 |
| NL322010GLC | 32×20×10 | 34.5 | 17.7 | 12.5 | 28.0 | 0.71 | 8.17 | 20 | 20-30 | 28-42 | | | |
| NL322015G | 32×20×15 | 34.5 | 17.7 | 18.5 | 42.0 | 0.71 | 8.17 | 20 | 70.0 | 65 | 14.0 | 13.0 | FT-3KM N3320E |
| NL403215G | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 36.5 | 70 | 8.34 | 16.0 | W422 |
| NL403215GL | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 15-22 | 28-42 | | | |
| NL402510GC | 40×25×10 | 43.2 | 22.6 | 13.5 | 43.6 | 0.59 | 10.2 | 30 | 43.0 | 62 | 10.0 | 14.0 | |
| NL402515G | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 76.0 | 70 | 16.0 | 15.0 | W424 |
| NL402515GL | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 31-46 | 28-42 | | | |
| NL462715GC | 46×27×15 | 48.4 | 24.4 | 18.5 | 95 | 1.11 | 11.5 | 30 | 60.0 | 50 | 17.0 | 14.0 | FT-3KM F4627 |
| NL462725G | 46×27×25 | 48.4 | 24.4 | 18.5 | 164 | 1.78 | 11.5 | 30 | 90.0 | 45 | 26.0 | 13.0 | FT-3KM F4627H |
| NL503215G | 50×32×15 | 53.5 | 29.0 | 18.6 | 98 | 1.10 | 12.9 | 30 | 50.0 | 50 | | | |
| NL504020GC | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 34.0 | 50 | 9.5 | 14.0 | W516 |
| NL504020GL | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 20-30 | 28-42 | 7.5 | 11.0 | ~W565 |
| NL504025GC | 50×40×25 | 53.5 | 36.3 | 28.4 | 95 | 0.95 | 14.1 | 30 | 45.0 | 52 | 11.0 | 12.6 | |
| NL523618C | 52×36×18 | 56.0 | 32.0 | 23.4 | 110 | 1.12 | 13.8 | 30 | 53.0 | 52 | 13.0 | 12.7 | three phase available |
| NL523625C | 52×36×25 | 56.0 | 32.0 | 28.4 | 150 | 1.55 | 13.8 | 30 | 70.0 | 50 | 17.0 | 12.0 | three phase available |
| NL533820GC | 52×36×20 | 57.0 | 34.0 | 24.5 | 122 | 1.17 | 14.3 | 30 | 62.0 | 55 | 14.0 | 14.0 | |
| NL655025G | 65×50×25 | 68.0 | 46.5 | 28.6 | 190 | 1.46 | 18.0 | 40 | 50.0 | 50 | | | ~W517 |
| NL654030C | 65×40×30 | 69.0 | 36.0 | 35.0 | 350 | 2.93 | 16.5 | 40 | 110.0 | 50 | 25.0 | 11.0 | three phase available |
| NL805020G | 80×50×20 | 86.0 | 44.7 | 25.7 | 342 | 2.28 | 20.4 | 50 | 72.0 | 50 | 18.0 | 13.0 | W531 |
| NL906020G | 90×60×20 | 95.4 | 56.1 | 24.7 | 395 | 2.28 | 23.6 | 50 | 61.0 | 50 | | | W518 |
| NL1037530G | 103×75×30 | 109 | 70.0 | 35.0 | 670 | 3.27 | 28.0 | 60 | 74.0 | 50 | | | ~W468 |
| NL1008020G | 100×80×20 | 104 | 76.0 | 20.0 | 320 | 1.58 | 28.3 | 80 | 31.0 | 45 | 8.4 | 12.0 | FT-3KM F10080G |
| NL1208030GL | 120×80×30 | 125 | 75.0 | 25.0 | 1100 | 4.80 | 31.4 | 80 | 52-79 | 28-42 | 22.0 | 11.5 | |
| NL13010030G | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 60.0 | 50 | 12.4 | 13.0 | W630 |
| NL13010030GL | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 34-52 | 28-42 | 11.0 | 11.5 | |
| NL17012025G | 170×120×25 | 178 | 112.0 | 32.0 | 1600 | 4.87 | 45.5 | 80 | 68.0 | 50 | | | |
Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier
6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )
We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.
Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
