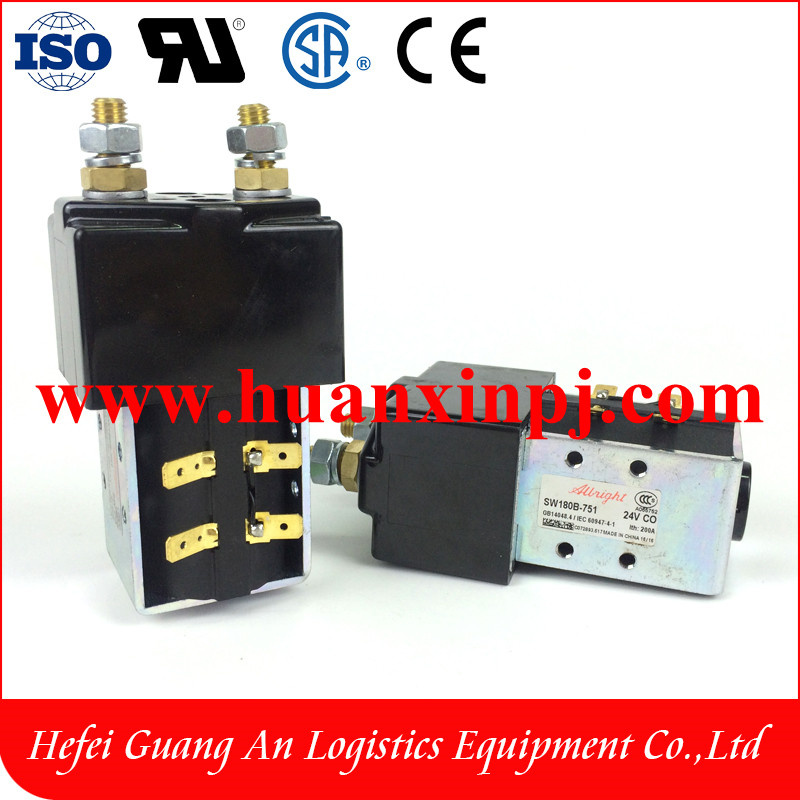

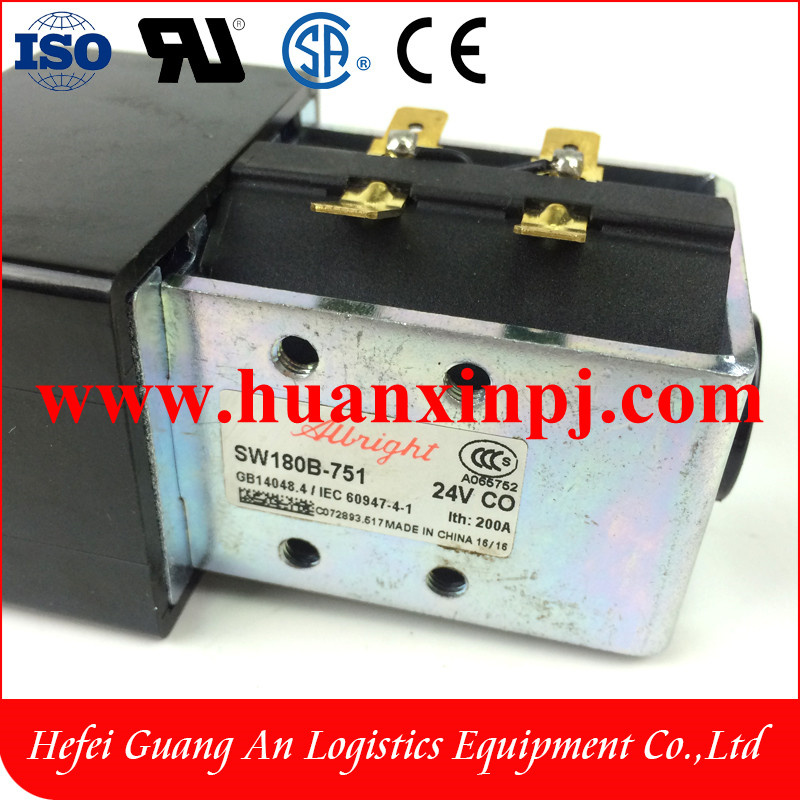

Native Albright Contactor Sw180b-751 Used in Liftstar Cbd20-460

Name: Native Albright Contactor Sw180b-751 Used in Liftstar Cbd20-460
Brand: all-electronics-online.com
SKU: 823978215
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 50-100/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SW180B-751

Product Description

Product Description

1. Reference

Item	Albright DC Contactor
Model	SW180B-751
Voltage	24V
Current	200A
Size	24 x15 x15 mm
Used in	Liftstar
HS code	8536411000
Net Weight	0.65 KGS

2. Product information

UNIQUE RANGE

The SW180 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

The range comprises: Single Pole, on/off types(SW180), Double Pole, on/off type(SW190), Single Pole, changeover types(SW181), Single Pole, normally closed types(SW185) and paired versions of these for motor reversing (SW182, DC182 and SW192)

COMPACT SIZE

The contactors are compact in size and are fully serviceable, with a full range of spare parts available.

EASY INSTALLATION

Mounting is by means of 5mm tapped holes in the switch frame together with a range of mounting brackets complete with screws and washers.

Coil connections are by means of 6mm spades of which two are supplied per terminal.

Contactor types SW182, DC182, SW184, DC184, SW189 and SW192 are supplied as an assembly which include4s a mounting bracket as a standard feature.

Mounting attitudes are detailed in the drawings on the following.

OPERATION COILS

Coil voltages ranging from 6 to 240 are available and these are wound for D.C. operation.

However coil can be fittd with a bridge rectifier for use from A.A. supplies.

Coils are normally wound for intermittent duty(up to 70% "on" time) but continuous duty version (100%) are also available.

3. Product Details

4. Packing&Shipping

Package:Normally we use the standard exporting packaging , we also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating
2. By Air: Delivery from the Shanghai air port to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port.

5. About Us

6. Contact person

Hefei Guang An Logistics Equipment Co., Ltd. Is located in Hefei city, which is a main production base for forklift and electrical pallet truck. Specializing in spare parts of material handling equipment, forklift and golf cart for more than 13 years. Product categories include controlling system, drive system, transmission system, hydraulic system, and product variety is more than 2000 relating to controllers, motors, contactors, connectors, sensors, battery charger etc. We are American CURTIS Agent and British ALBRIGHT Agent, and also establishing a long-time strategic cooperative relationship with the world's largest supplier of spare parts, France RELAS and Belgium TVH. We depend on high quality assuring development, and good service winning market. With strong technical developing capabilities and high-quality service, we have won the majority of customers trust and support. We are dedicated to be the leading supplier in China to offer widest range of electric pallet struck and forklift spare parts with high-level quality, competitive price and best service. We always look forward to your sincere cooperation!
